OM-244 997 Page 27

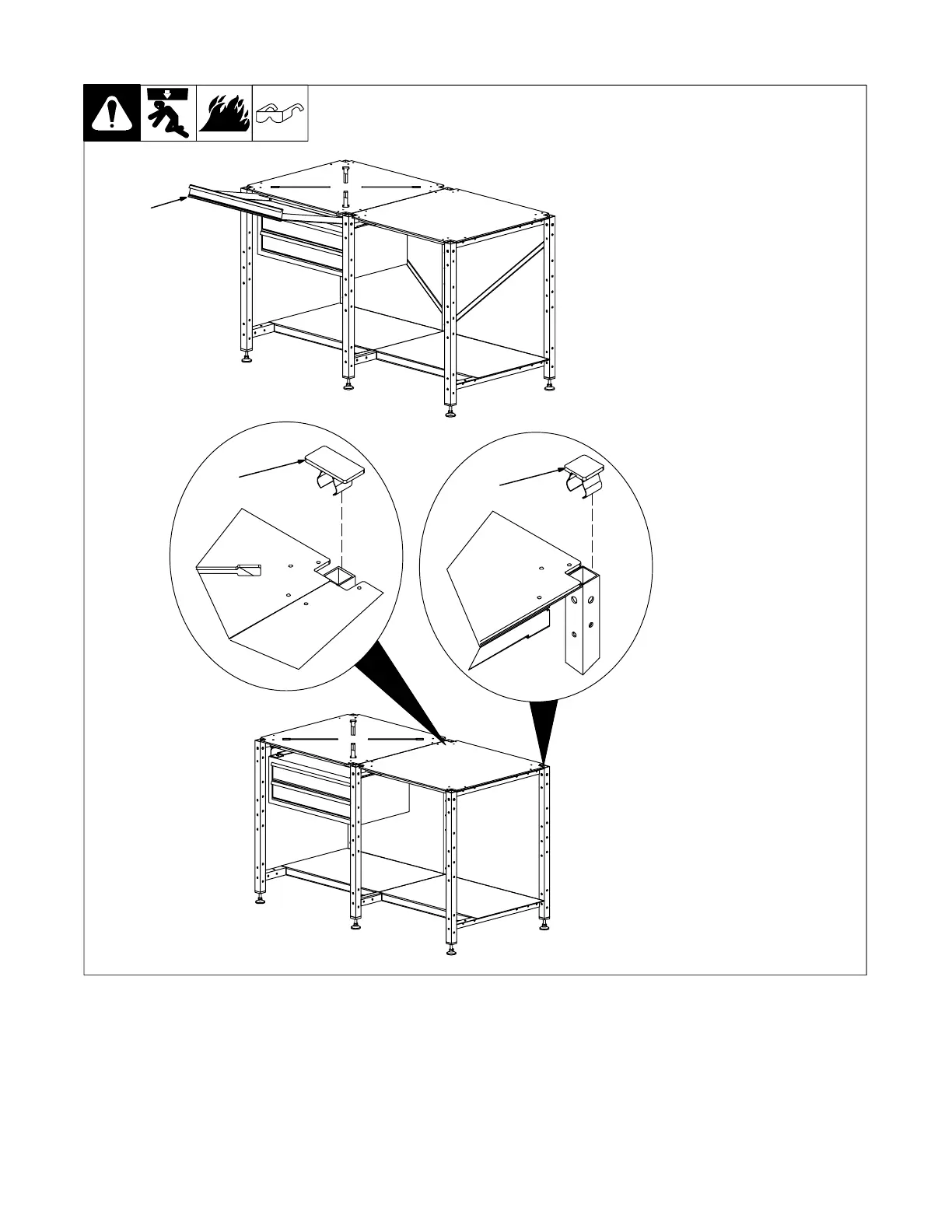

L. Installing Dust Tray And Tube Caps
1 Dust Tray
Install dust tray into rail slides as
follows:
Tilt rear of tray down and lift front of
tray up.
Place flange on rear of tray behind
angle iron support.
Lower front of tray until
approximately level.
Slide tray into position.
2 Large Tube Cap
3 Small Tube Cap
Push in a small tube cap by hand at
the top of each end subframe tube.
Push in a large tube cap by hand at
the top of each center subframe
tube.
2
3
1
To Next Page
