Miller ArcStation - 60 S And 60 SX Welding Table Specifications; Parts Layout; 60 S And 60 SX Welding Table Assembly

OM-244 997 Page 20
4-4. 60S And 60SX Welding Table Specifications
Total Maximum Load Capacity
(Including Contents)
Maximum Shelf Load Capacity Maximum Tool Chest Drawer
Capacity (Each Drawer)
1000 lb (454 kg) 100 lb (45 kg) 40 lb (18 kg)

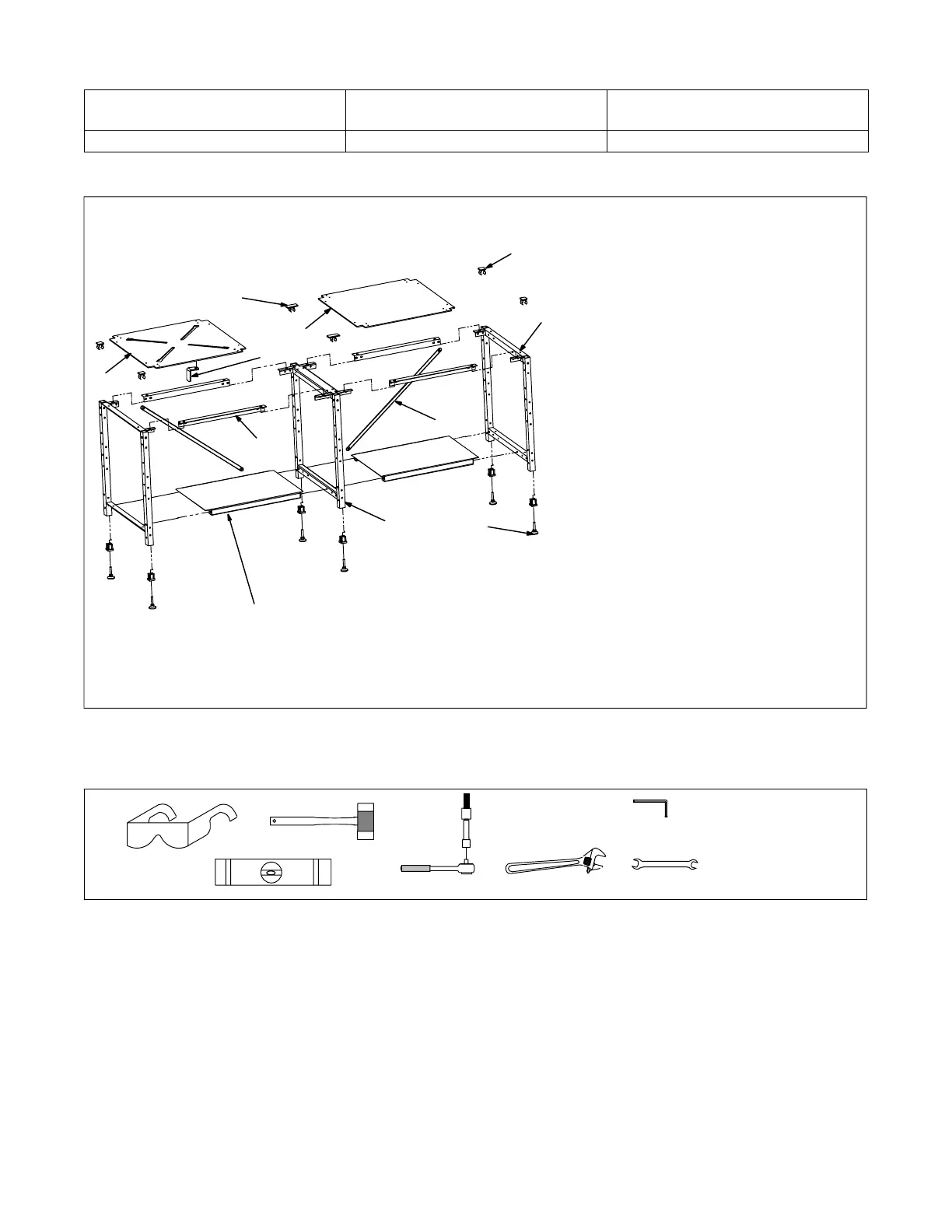

4-5. Parts Layout
1 300 608 Top solid 3/16 in. thick (1)
or
300 606 Top, solid 3/8 in. thick (1)
or
300 607 Top, X-pattern 3/8 in. thick (1)
2 244 936 Subframe, end (2)
3 244 965 Foot, mtg (6)
4 244 935 Subframe, center (1)
5 244 949 Front/Rear Rail (4)
6 244 950 Tray, bottom (2)
7 245 618 Bracket, stiffener (2)
8 245 672 Cap, tube small (4)
9 245 673 Cap, tube large (2)
10 245 874 Tab, work lead (1)
244 952 Hardware (1)
3
2
5
4
6
1
1
7
8
9
10
4-6. 60S And 60SX Welding Table Assembly
A. Tools Needed
1/2 in.
hex bit 3/16 in.
hex wrench 3/16 in.
level
