Miller RFCS-5 - Typical Connection; Remote Amperage Control for Welding Power Source Without; Remote Control Switch

OM-844 Page 2

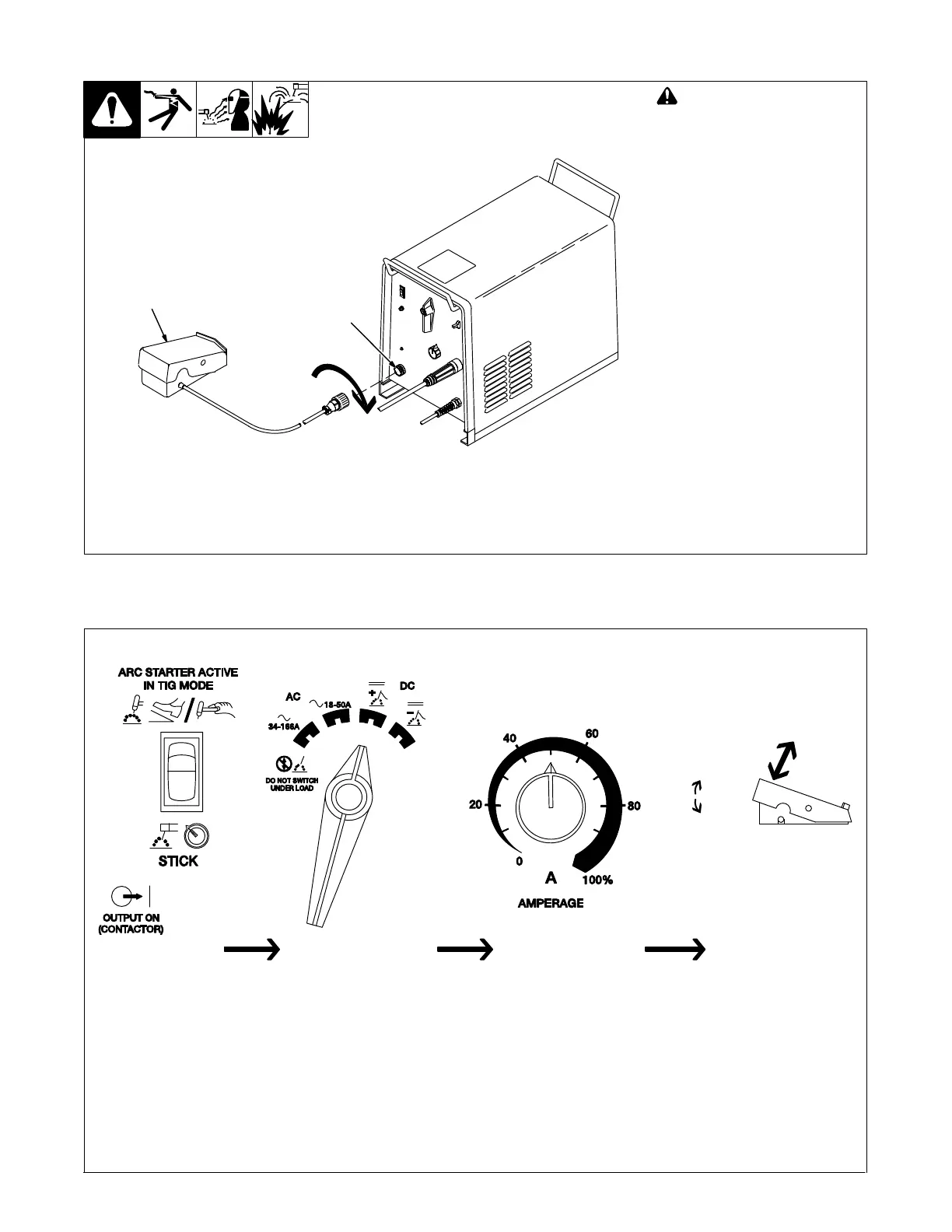

1-4. Typical Connection
Ref. 801736
! Turn Off welding power
source before connecting
foot control.
1. Foot Control
2. Remote 14, Remote 5, Or
Remote 6 Receptacle
Insert plug into matching 14-sock-
et, 5-socket, or 6-socket recep-
tacle, as applicable, on welding
power source. Tighten collar.
1
2
1-5. Remote Amperage Control For Welding Power Source Without
Remote Control Switch
Ref. 155790-H
On
0 A DC
Off
Select Maximum
Amperage Percentage.
Select Weld Process Select Range And Polarity
33 A DC
Combination Front Panel
And
Remote Control
Approximately
50% = Approx. 33 A DC
Press pedal lightly to turn
weld output and gas flow
on. Press pedal further to
increase weld output.
Release pedal to turn off
weld output and gas flow.
