Miller RFCS-5 - Remote Amperage Control for Welding Power Source with Remote Control Switch; But Without Output (Contactor) Control

OM-844 Page 3

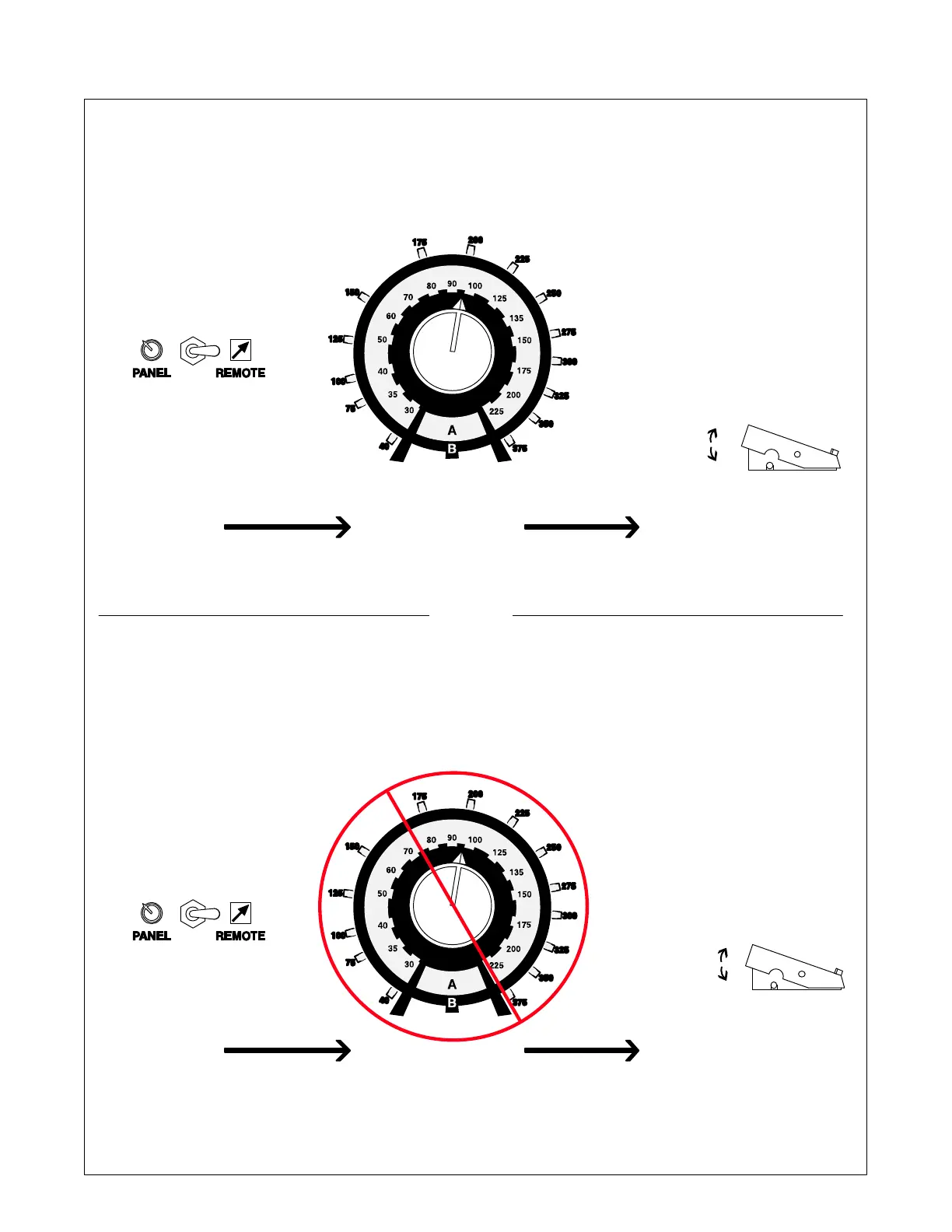

1-6. Remote Amperage Control For Welding Power Source With Remote Control Switch
But Without Output (Contactor) Control
. See welding power source
Owner’s Manual to determine
if Remote Foot Control works
as a combination or as full Am-
perage control.
Ref. 122023-B / 801736
OR
Example Of Full Remote Amperage Control
Set Switch
In Example:
Min = 30 A In Range A or 40 A In
Range B (Unit Minimum)
Max = 95 A In Range A or 200 A In
Range B (Control Setting)
Control Setting
Does Not Matter
Unit Maximum
In Example:
Min = 30 A In Range A or 40 A
In Range B (Unit Minimum)
Max = 225 A In Range A or 375 A In
Range B (Unit Maximum)
Unit Minimum
Unit Minimum
Control Setting
Set Desired Maximum
Amperage For Application
Set Switch
Press pedal to increase weld
output. Release pedal to
decrease weld output.
Press pedal to increase weld
output. Release pedal to
decrease weld output.
Example Of Combination Front Panel
And Remote Amperage Control
. See welding power source
Owner’s Manual to determine
if Remote Foot Control works
as a combination or as full Am-
perage control.
