Miller RFCS-5 - Remote Amperage Control for Welding Power Source with Remote Control Switch; And Output (Contactor) Control

OM-844 Page 4
1-7. Remote Amperage Control For Welding Power Source With Remote Control Switch
And Output (Contactor) Control
. See welding power source
Owner’s Manual to determine
if Remote Foot Control works
as a combination or as full Am-
perage control.
Ref. 217264-G / Ref. 801736
0
On
Off
0
On
Off

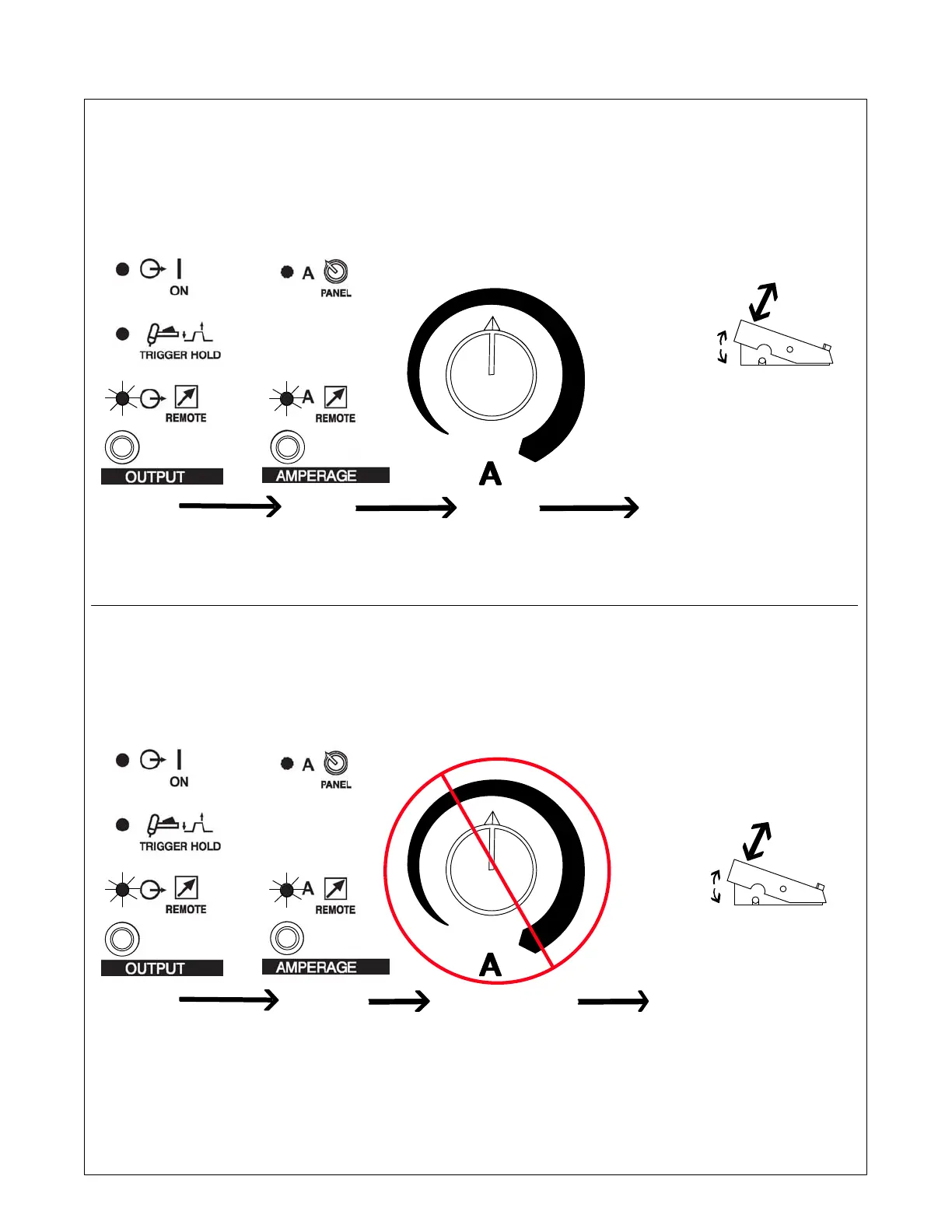

Example Of Full Remote Amperage Control
Control Setting
Does Not Matter
Set Switch Set Switch
Set Control
Set Switch Set Switch
Combination Front Panel
And
Remote Control
Control
Setting
(150 A)
Unit
Maximum
Press pedal lightly to turn weld
output and gas flow on. Press
pedal further to increase weld
output. Release pedal to turn
off weld output and gas flow.
Press pedal lightly to turn weld
output and gas flow on. Press
pedal further to increase weld
output. Release pedal to turn
off weld output and gas flow.
Example Of Combination Front Panel
And Remote Amperage Control
. See welding power source
Owner’s Manual to determine
if Remote Foot Control works
as a combination or as full Am-
perage control.
