14 Milli-Q® Direct 8/16 System
Cabinet, Continued

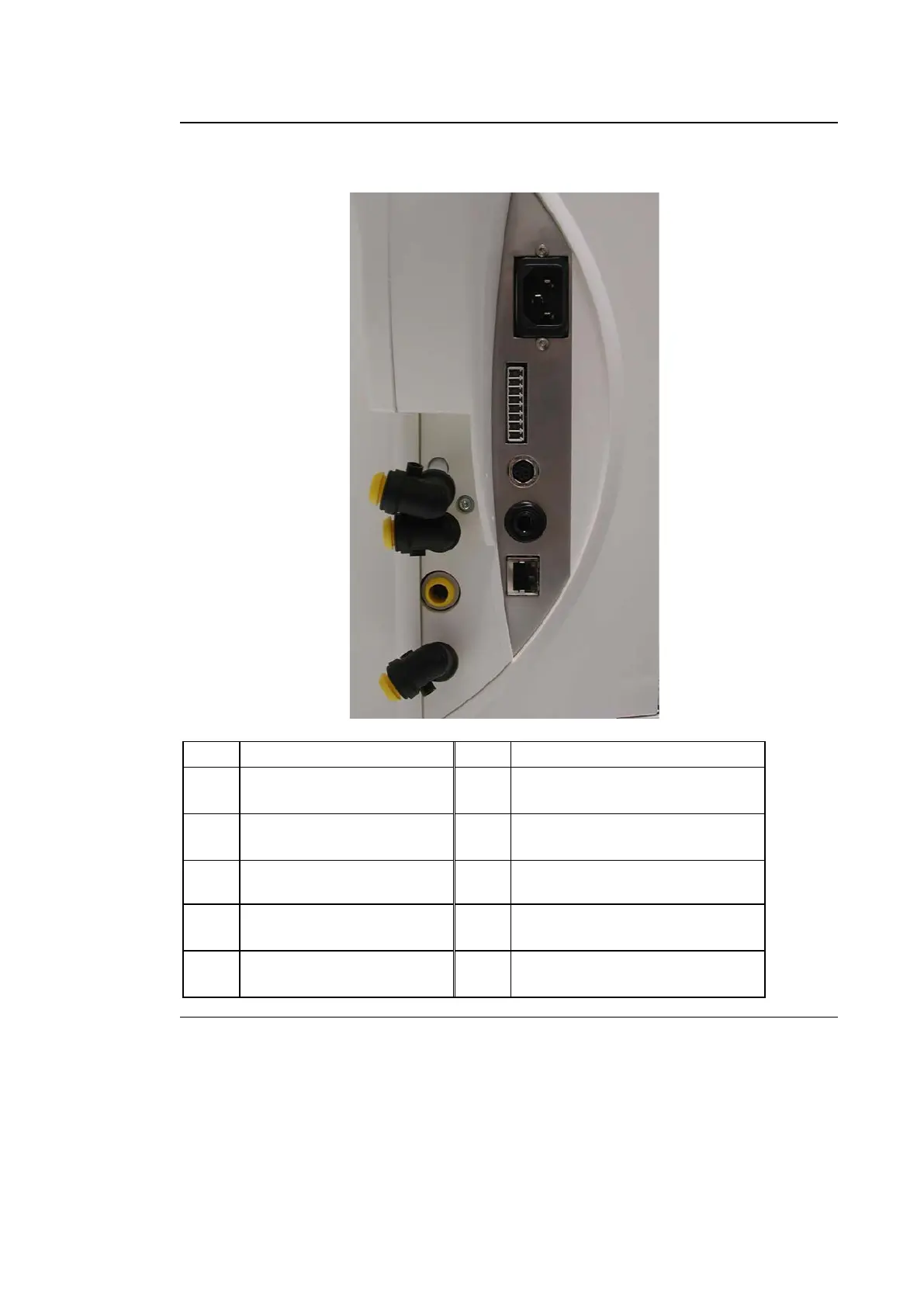

Port and cables
The port and cable connections are explained below.
Item
Description
Item
Description
1 RO Reject Port A
Power Entry connection
(100 – 240 V)
2 Feed water Port B
Accessories connection
(maximum 24 VDC)
3 From Reservoir Port C Termination Plug Connection
4 To Reservoir Port D
Level Sensor Connection
(maximum 5 VDC)
E
Ethernet connection
(maximum 5 VDC)
1
4
D
3
2
E
C
B
A

Milli-Q ZR0Q00800 Specifications

General

Brand	Milli-Q
Model	ZR0Q00800
Category	Water Filtration Systems
Language	English
