Chapter 3. Routine Maintenance
PELLERIN MILNOR CORPORATION

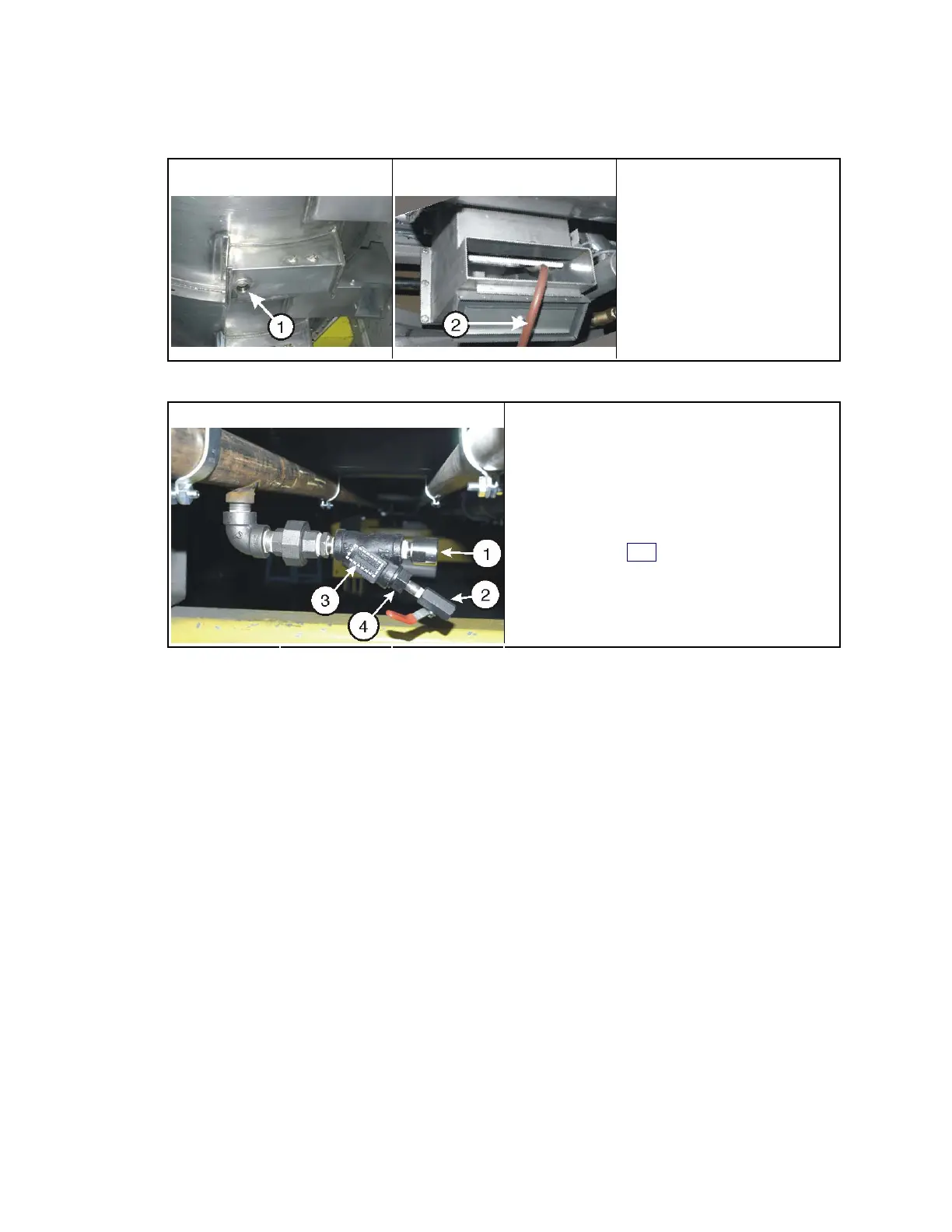

Figure 28: Module Sump Drain and Weir Box. These are examples. Your machine can look different.
View From Below Sump View from Above Weir Box Legend
1. Module sump drain.
Remove the plug to let
the drain sump empty.
Add water with a hose or
a water valve to flush the
sump.
2. Water hose—Put the hose
on the module side of the
weir plate.
.
Figure 29: Steam Trap
Steam Trap on Steam Header Legend
.
1. Condensation to the boiler
2. Valve to remove collected particles.
Materials will come out with steam
pressure. Open this valve momentarily.
3. Steam strainer. Remove steam pressure
before you remove item 4. See
warning
statement 34 in Section 3.1.5
.
4. Remove this component to remove strainer.
— End of BIUUUM09 —
