Chapter 3. Routine Maintenance
PELLERIN MILNOR CORPORATION

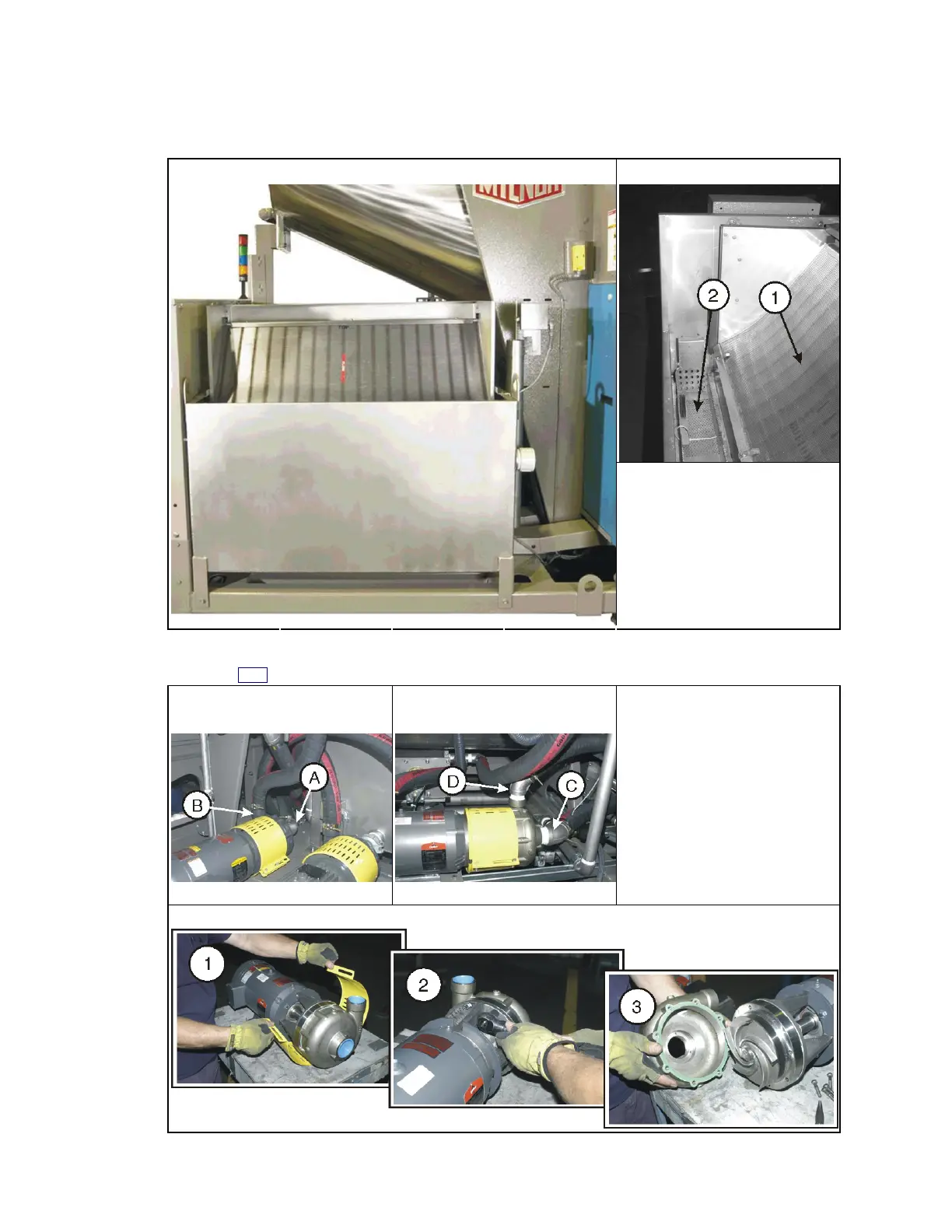

Figure 26: PulseFlow
®
Tank—PulseFlow
®
CBW Tunnel Washers
Lint Filter Side Areas That Collect Lint
Legend
.
1. Lint filter—Use a rigid
bristle brush to remove
contamination from
between grooves.
2. Lint basket—Remove the
basket to remove
collected lint.
Figure 27: Pumps that Move Water and Solids—PulseFlow
®
CBW Tunnel Washers. See warning
statement 27
.
Re-circulation Pump Pump Between Modules Legend
A. From Module 1
B. To the load chute
C. From upstream module
D. To downstream module
1. With power removed,
remove the safety guard.
Replace when completed.
2. Remove eight bolts.
3. Remove the housing. Use
a rubber hammer.
Impeller Housing Removal. Do this on the installed pump.
.
