Chapter 3. Routine Maintenance
PELLERIN MILNOR CORPORATION

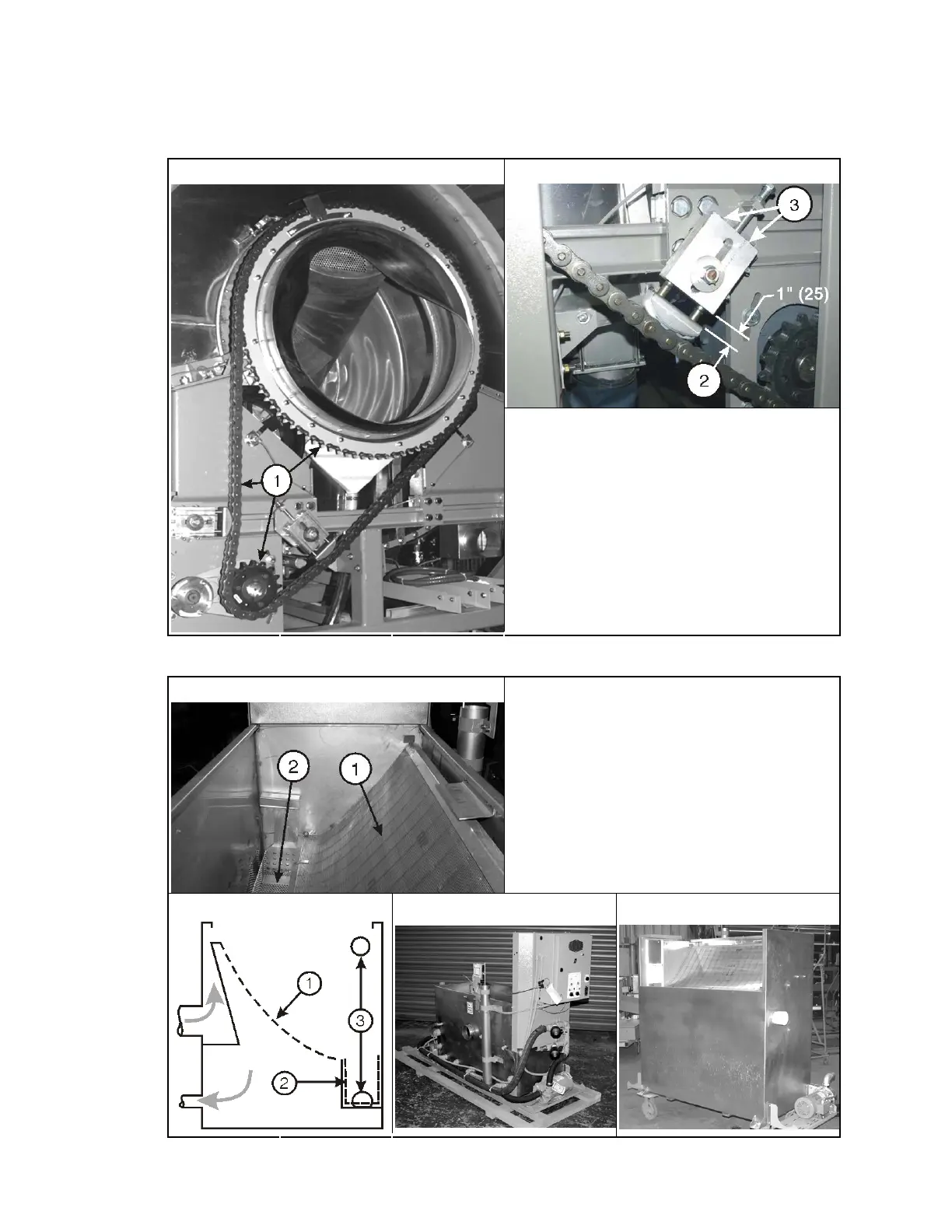

Figure 24: Drive Chain. These are examples. Your machine can look different.
Chain and Sprockets Chain Tension Mechanism
Legend
.
1. Chain and sprockets. These components are
serviceable when the chain has the correct
tension (see Item 2) and the cylinders
change direction smoothly.
2. The dimension when the chain has the
correct tension.
3. Screws (not shown) to replace two springs.
Remove the tensioner from the machine
before you change the springs.
Figure 25: Tanks That Collect Lint—Conventional CBW Tunnel Washers
Areas Where Lint Collects Legend
1. Lint filter—Use a rigid bristle brush to
remove contamination from between
grooves.
2. Lint basket—Remove the basket to remove
collected lint.
3. Overflow and drain outlets—Keep free of
blockages
Cross Section of a Tank Flow Splitter or Flow Lifter Press Water to Reuse Tank
.
48
