001 02 03366A 90493C DRAIN SUMP GASKET 1/8"EPDM
002 02 03332A 79033D BODY=SUMP-1608 GLASTIC
003 24G018N ROLLED WASHER .194"ID NYLTITE #10W
004 15P050AB 02Z TRDFRM-AB PANHD10-16X3/4 SS 410
******** END OF PARTS LIST ********
How to Read Parts List
Reference Item Numbers
—Items 00A, 00B,
00C, etc., or 00X, 00Y, 00Z, etc., appearing at the top of
some parts lists, are for reference and provide:
1. The part number for the entire assembly depicted in
the drawing or a major sub-assembly thereof, and/or
2. The range of machine models this drawing applies to.
If more than one reference item appears, this usually
means this drawing applies to more than one assembly (and
thus to more than one range of machines).
Component Item Numbers
—For any item on
the drawing (e.g., item ➀), there may be several corre-
sponding items on the parts list (e.g., 001A, 001B, 001C,
etc.) which are similar components on different assemblies.
“How Part Is Used In Assembly” identifies which compo-
nents apply to your machine, by listing either the machine
model, or the reference item number from the top of the
parts list (e.g., 00A, 00B, 00C, etc.), or a particular charac-
teristic (e.g., bronze or stainless steel), or special ordering
information, such as a repair kit number.
NOTE: Shellfront and cylinder
must be removed for access to
sump (see MSSM0708BE in the
Table of Contents.)

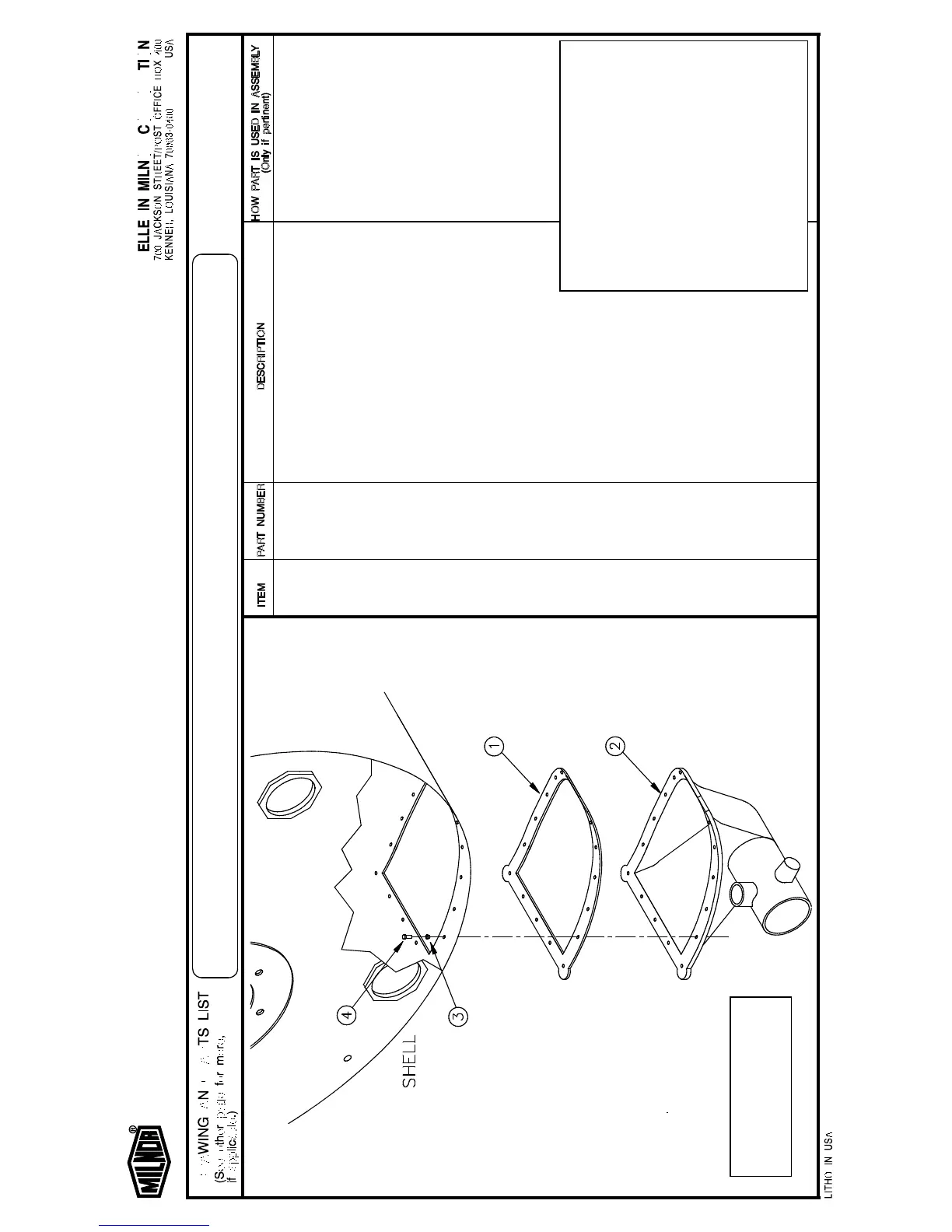

BMP920014/93251V (Page 1)
DRAIN SUMP INSTALLATION
30015, 30020 & 30022 RIGID MOUNT WASHER-EXTRACTORS
To Next Page
