Detail: Stand Placement
Detail: Stand base mounting
hole pattern
Receiver
Mirror Mirror
Stand
Stand
Stand
Stand
Emitter
INSTALLATION:
Position the stands as shown in the detail. The poles
are to be exactly parallel to each other and truly
vertical.
IMPORTANT: The midpoint of the mirrors must be
directly in line within the midpoint of the sensor’s
defined area. The upper and lower limits of the
defined area are dimensioned in the light screen
instruction manual supplied with parts.
Midpoint
Receiver
Emitter
Mirror
Mirror
Mirror Alignment
Mounting
hardware
(not supplied)
Pole
leveling
bolts -
4 places
(supplied)
Base
leveling
bolts
4 places
(supplied)
Post
level
(supplied)
Leveling
1

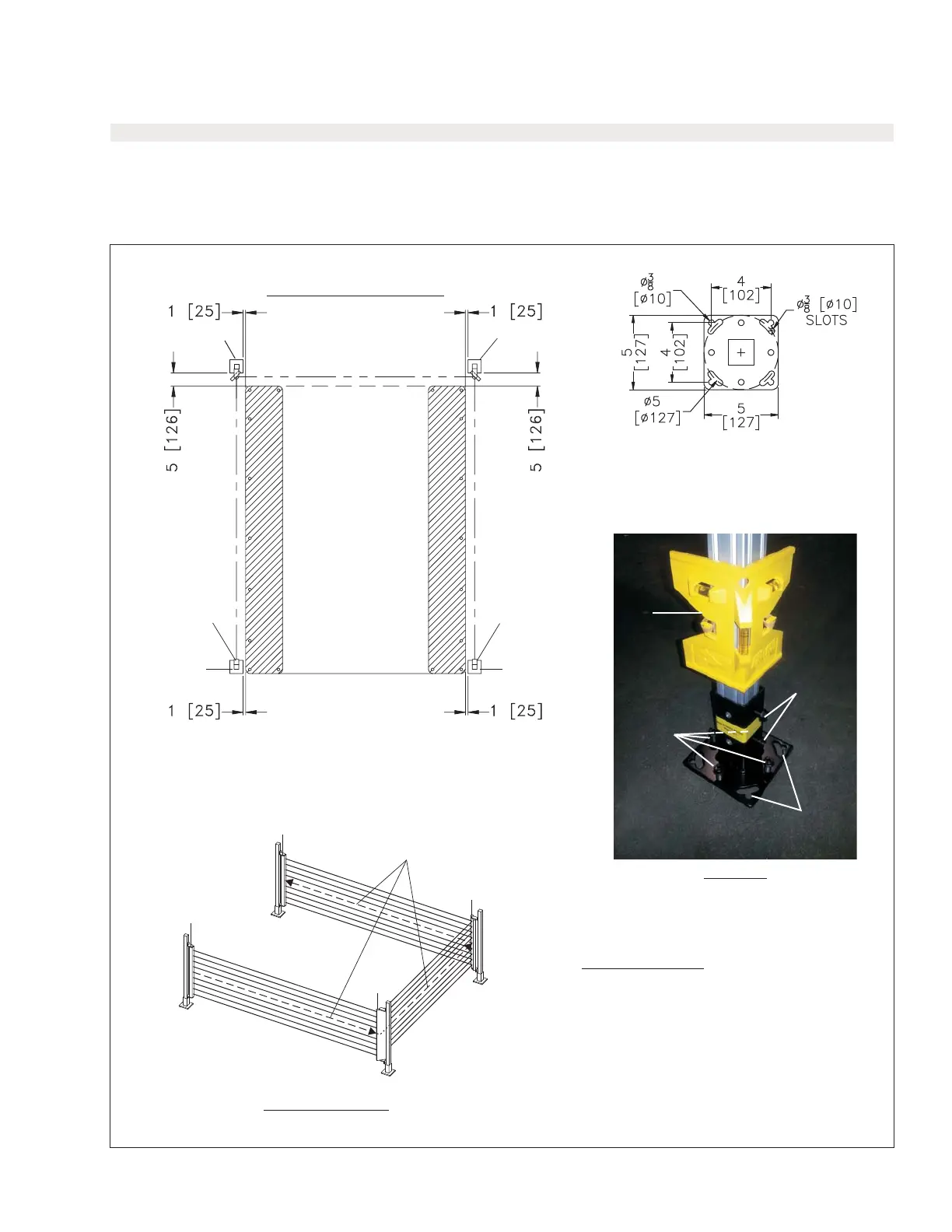

Figure 2: Safety Light Screen Installation
48040M7K, 68036M5K, 72046M5K
Page (2 / 3)BMP150061/2016046A
Safety Light Screen Components & Installation
19
