PELLERIN MILNOR CORPORATION
Item
Part Number
Description
Comments
Used In
Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the
"Used In" column to identify which components belong to an assembly. The item numbers (1, 2, 3, etc.) assigned to components relate the
parts list to the illustration.
Parts List—Guards and Covers
---------------------------------------------------------------------------------------------ASSEMBLIES-------------------------------------------------------------------
A GGS68004 6836M5K HYD CYLINDER GUARDS 68036M5K
B GGS72003 7246M5K HYD CYINLDER GUARDS 72046M5K
C GGS48012 4840M7K HYD CYLINDER GUARDS 48040M7K
--------------------------------------------------------------------------------------------COMPONENTS------------------------------------------------------------------
A 1 W2 22693 6836M5K SIDEPANEL WLMT RT
B 1 W2 25014 7246M5K SIDEPANEL WLMT RT
C 1 W2 24044 4840M7K SIDEPANEL WLMT RT
A 2 W2 22693A 6836M5K SIDEPANEL WLMT LT
B 2 W2 25014A 7246M5K SIDEPANEL WLMT LT
C 2 W2 24044A 4840M7K SIDEPANEL WLMT LT
all 3 02 22692 6836M5K TILT FRAME PYRAMID COVER
A 4 W2 22758 6836M5K BRAKE COVER WLMT
Page (4 / 5)
15
30
48040M7K Rear Belt Guard
BMP150029/2015443A
Guards and Covers
48040M7K, 68036M5K, 72046M5K

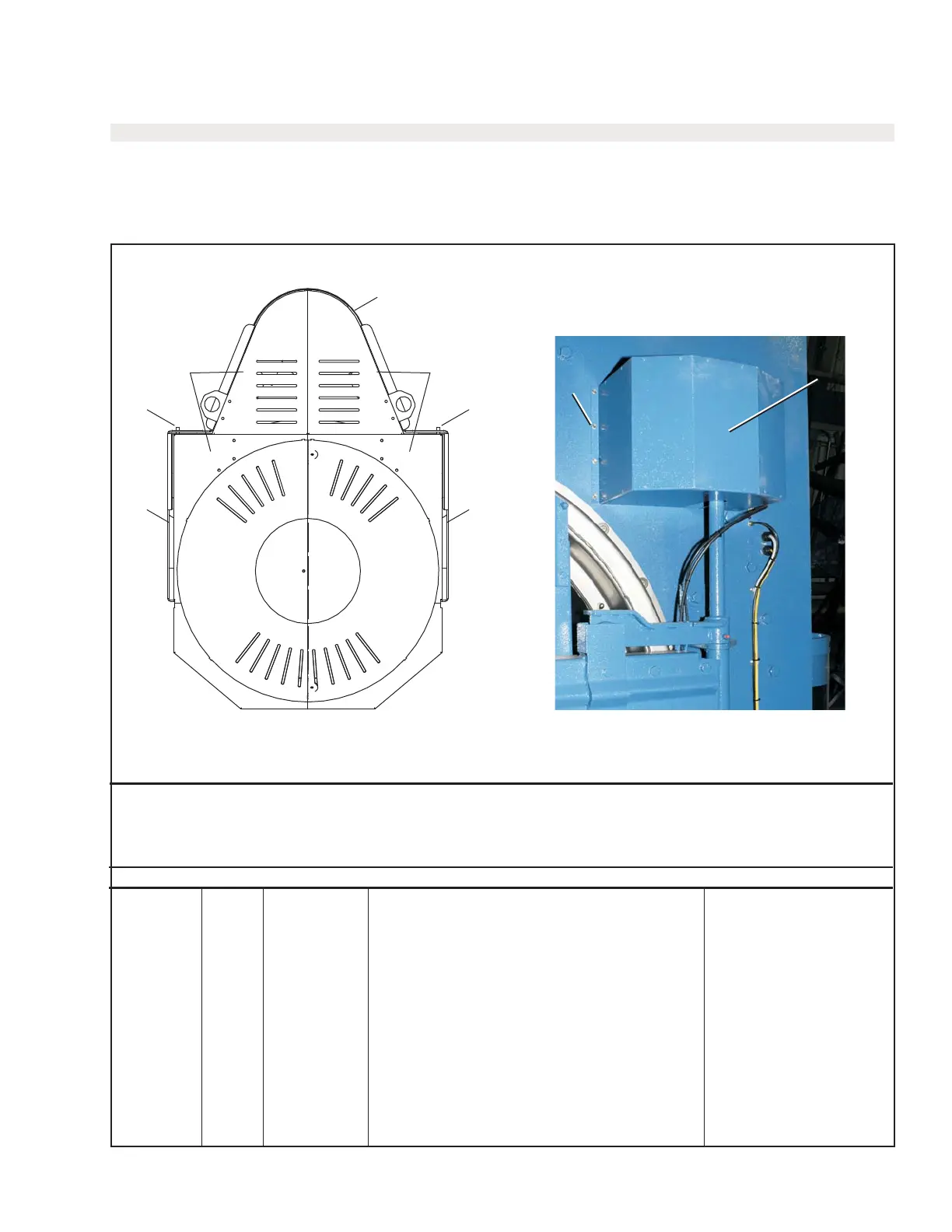

Figure 4: Rear Belt Guard & Door Torque Motor Cover
7D
7C
8D 8C
31
99
37
To Next Page
