PELLERIN MILNOR CORPORATION
BIIFGM08 (Published) Book specs- Dates: 20150812 / 20150812 / 20150812 Lang: ENG01 Applic: IFG
Cylinder Installation 68036F5N, 68036H5N, 68036H5K,
68036M5K, 72046M5K

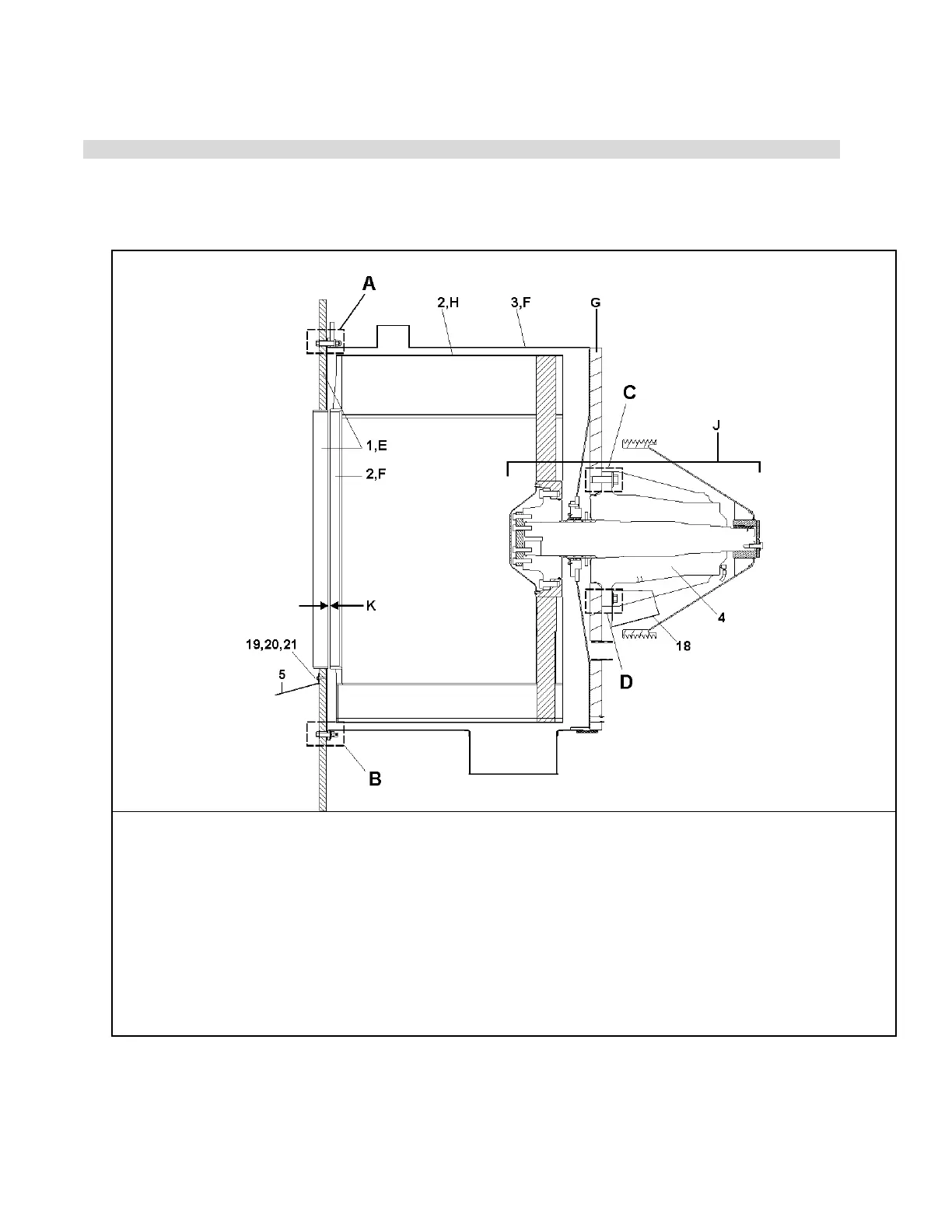

Figure 1: Cylinder Installation
Cross Section
Legend
A. Detailed view, Top connection between the shell front and the shell side sheet
B. Detailed view, Bottom connection between the shell front and the shell side sheet
C. Detailed view, Connection between the shell rear and the bearing housing, Top
D. Detailed view, Connection between the shell rear and the bearing housing, Bottom
E. Shell front
F. Cylinder
G. Shell rear
H. Shell
J. Cylinder and Bearing Installation, See the document BIIFGM07.
K. This dimension must be in this range: 0.3125 inches [8mm] - 0.375 inches [10mm].
.
65
