Note 3: Relay functional names ending with the letter "M" (e.g., CRxxM) are not discrete components but
are a component of a printed circuit board. They are usually not individually replaceable.

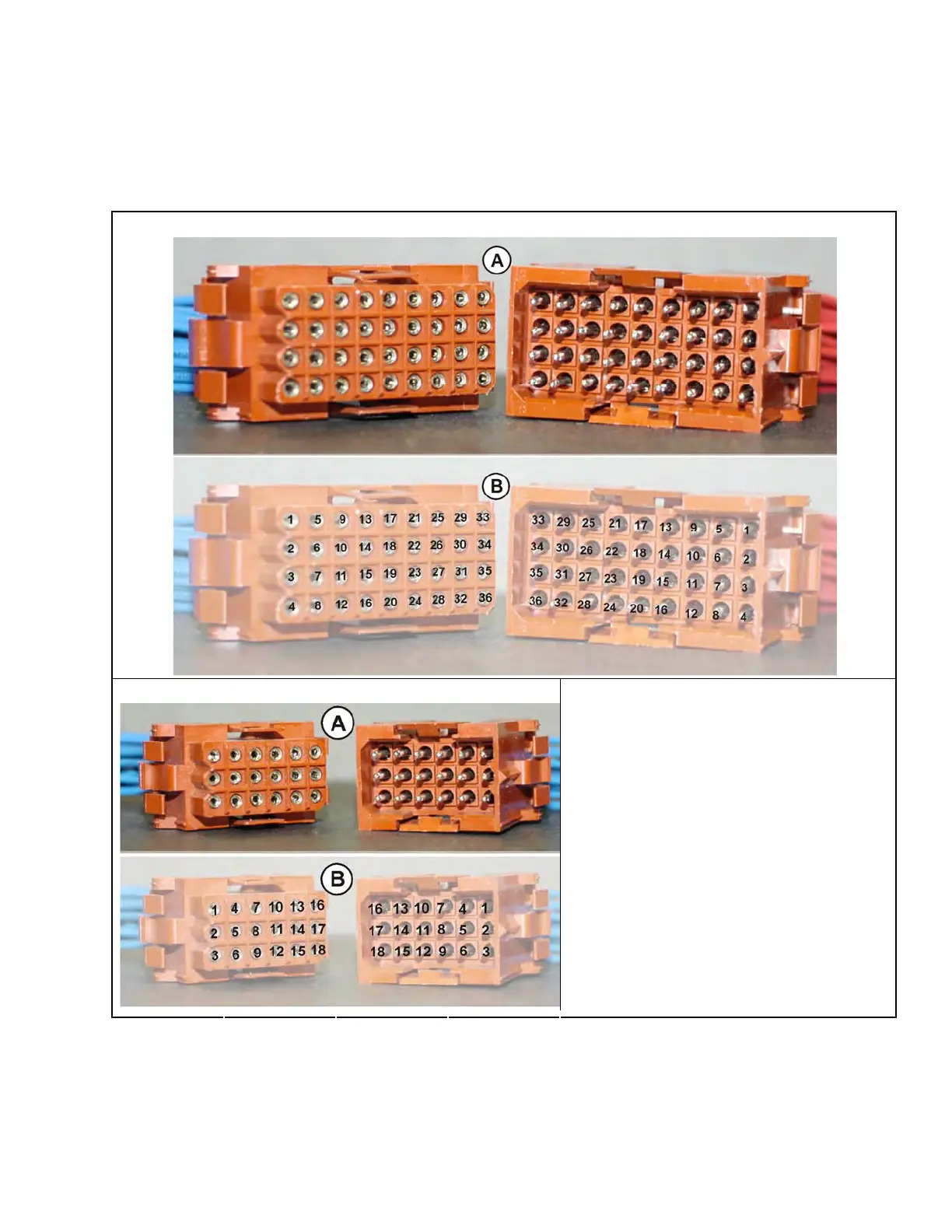

Figure 23: AMP Connector Pin Locations
36-pin Connector
18-pin Connector Legend
.
A. View of mating halves of connector
B. Same view, showing assigned pin numbers
