Milnor MWF C Series Schematic/Electrical Parts

5
9
6

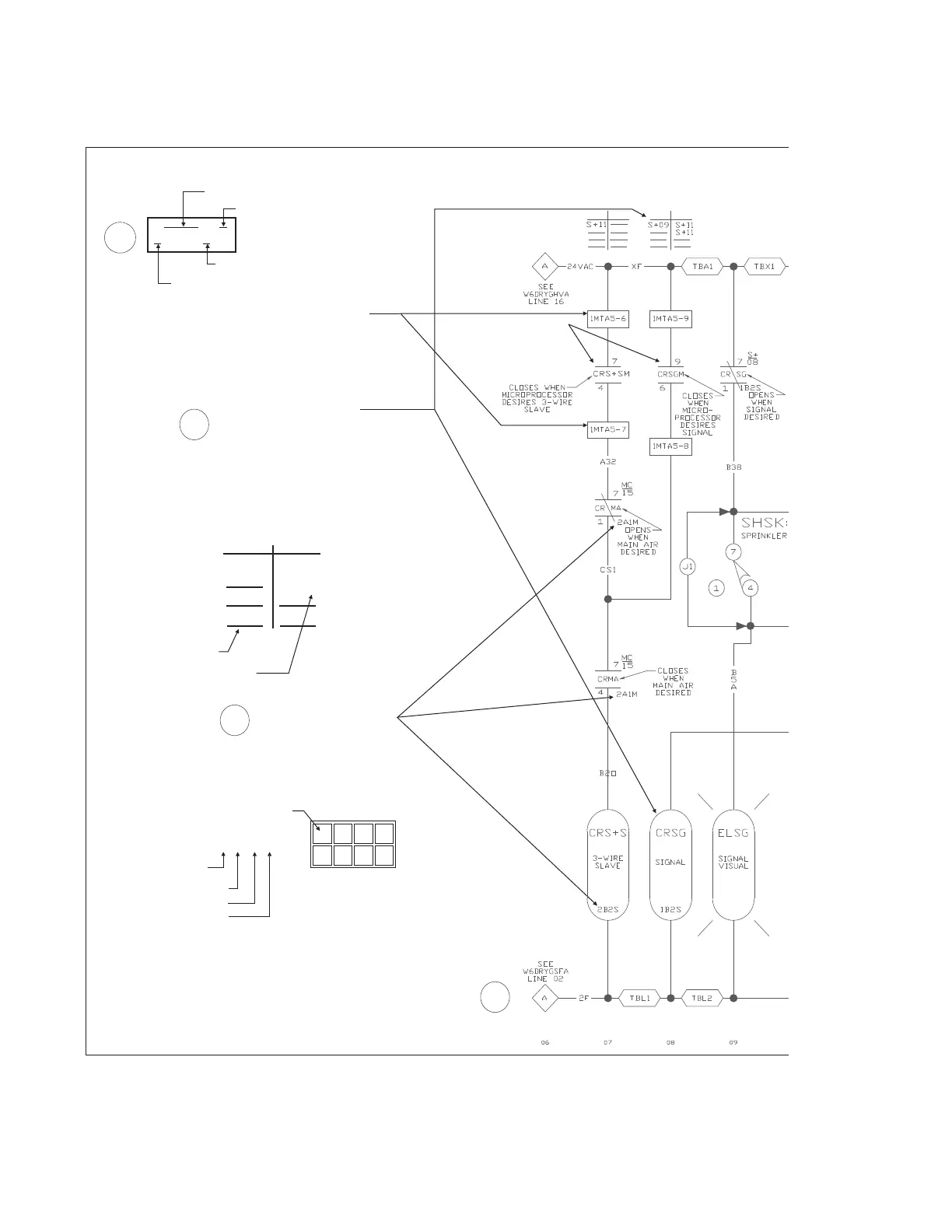

This indicates on which
schematic page and
line number the relay
contacts of this coil (on Line
08) are located (i.e.,
W6DRYGS+, Lines 9 and 11).
This is the physical
location of the relay on
the machine. Row and
column numbers are
shown on the appropriate
tag for each relay tray.
A
B
Position
2A1M
Relay Tray
Number
Row
Column
Function
(M=Main Air)
Any relay that ends
with an "M" is
located on an
electronic board.
S+09 S+11
S+11
Normally
open
contacts
Normally
closed
contacts
7-1 contact
8-2 contact
9-3 contact
V-K contact
7-4 contact
8-5 contact
9-6 contact
V-Q contact
Contact not used
Drawing and line where
contact is located
123 4
BMP010012 (left) / 2018343
7
1MTA5-6
Pin number
Board MTA group designation
Mass termination assembly
MTA designation on board
An MTA is a connection on an
electronic circuit board. The
notes and the tag page locate
the appropriate board.
24
