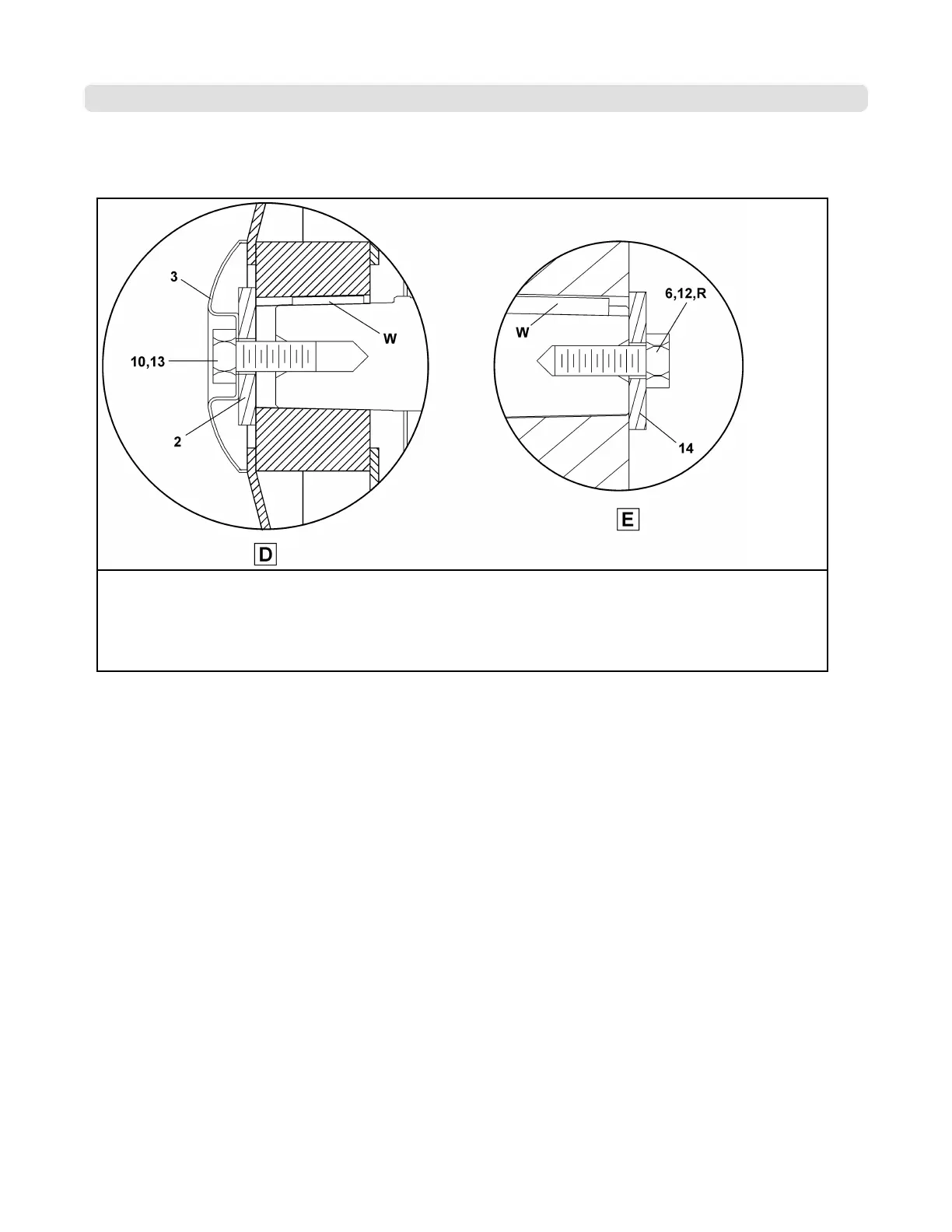

Figure 4. Shell Cross-section Details D and E
Legend
D. Connection between the cylinder rear and the bearing housing
E. Connection between the bearing housing and the pulley
R. Apply adhesive to the bolt, torque to 282 FT. LBS.
W. Key
Bearing Assembly & Installation MWF45, MWF63, MWF77
3 of 6
