Milnor MWF63C7 - Page 89

BB
K
L
PELLERIN MILNOR CORPORATION
BMP130080/2018195A
MWF45J8, MWF45Z8, MWF63J7, MWF63Z7, MWF77J7, MWF77Z7
MWF63C7, MWF63Y7, MWF77C7, MWF77Y7
Peristaltic Supply

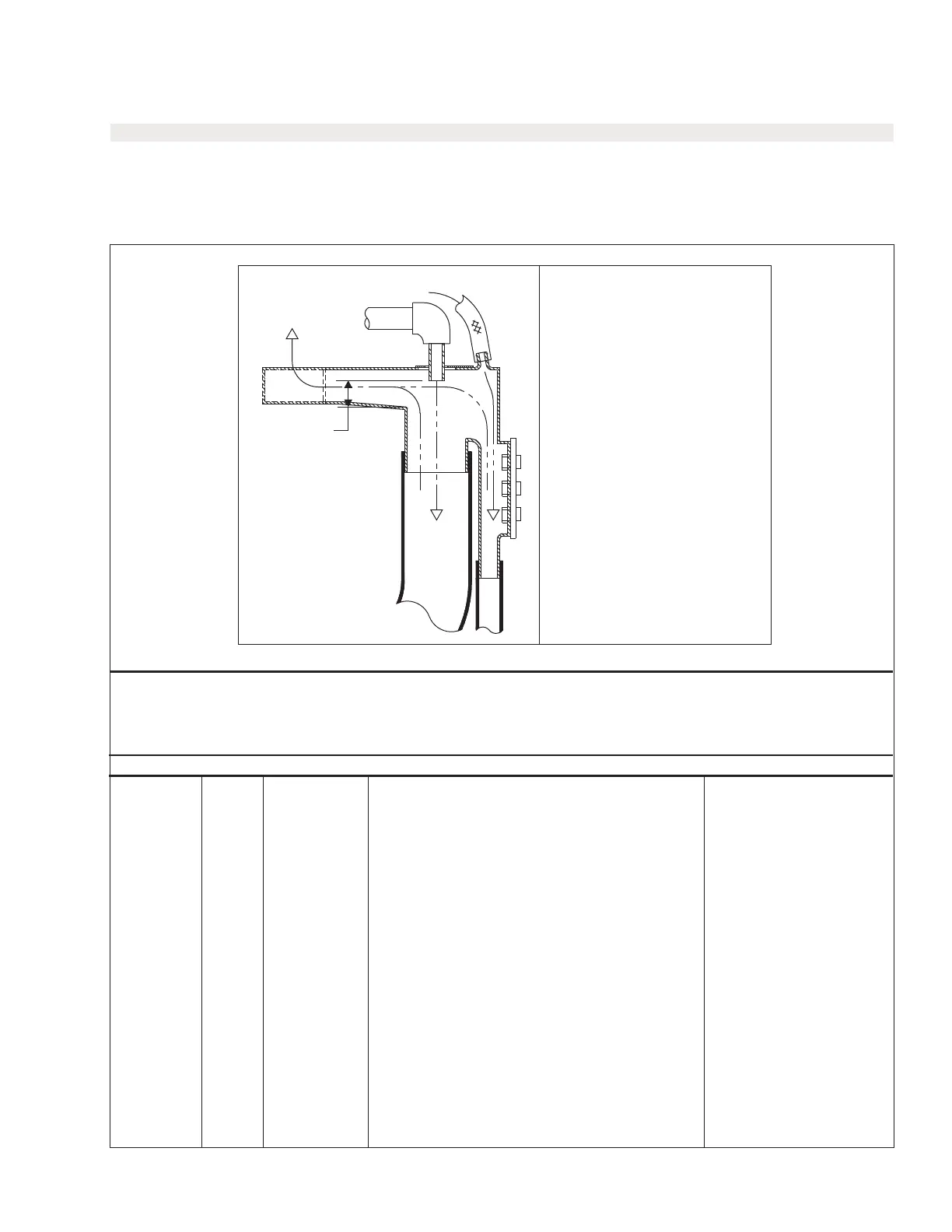

Figure 2: Peristaltic Inlet
BB. Cross section
K. Vent
L. Air space: 1 inch(25MM)
Legend
Cross Section
Item
Part Number
Description
Comments
Used In
Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the
"Used In" column to identify which components belong to an assembly. The item numbers (1, 2, 3, etc.) assigned to components relate the
parts list to the illustration.
Parts List—Peristaltic Supply
-------------------------------------------------------------------------------------------COMPONENTS------------------------------------------------------------------
all 1 02 03588M PERISTALTIC/WATER INLET 3022H
all 2 98CX489021 NPT PLASTIC PLUG
all 3 98CX03588X FLEXIBLE HOSE
all 4 27A088S HOSECLAMP 3+1/16-4"SSSCR#HSS56
all 5 98CX873160 FLEXIBLE HOSE ID13XOD20X44M
All 6 98CX910816 FLEXIBLE HOSE
Page (2 / 2)
85
