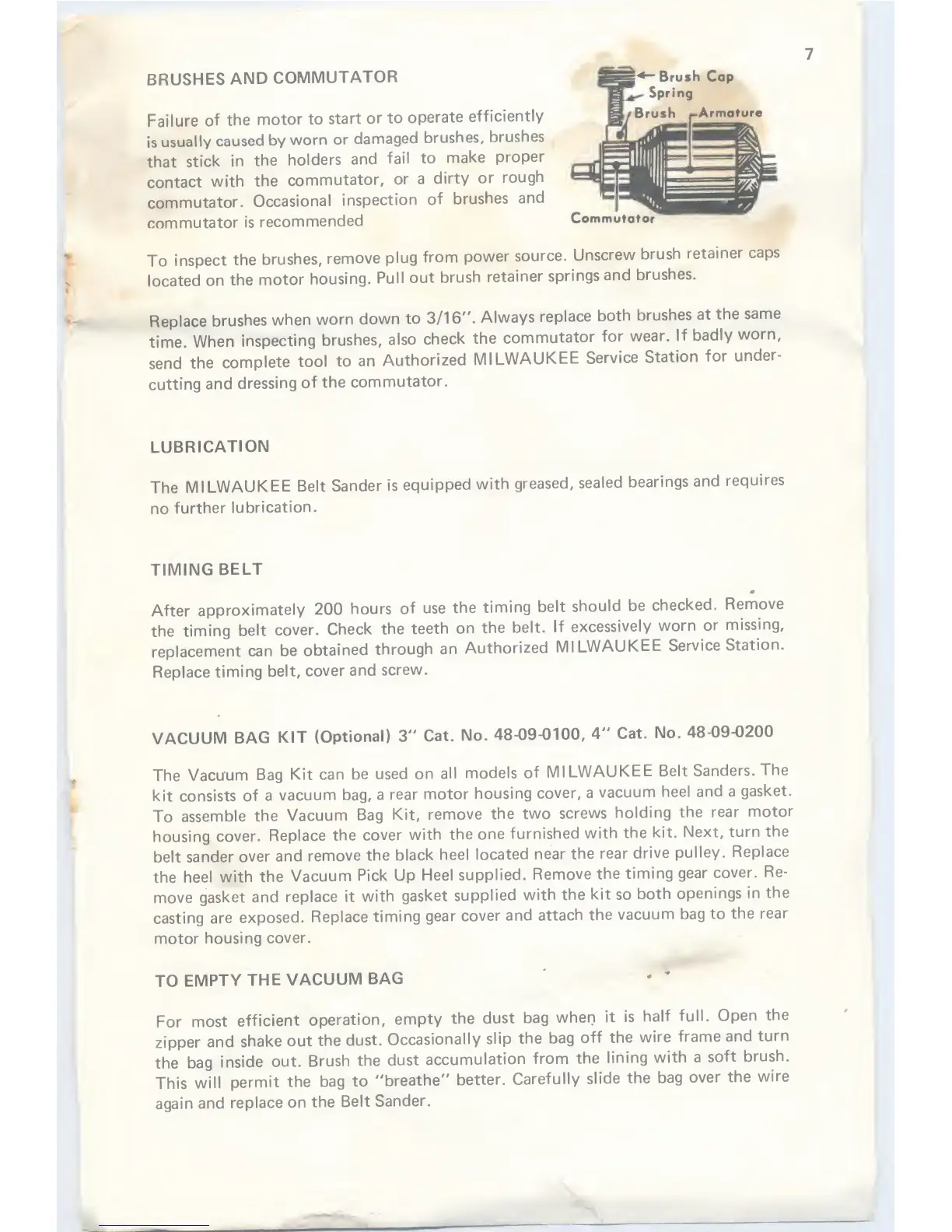

BRUSHES
AND
COMMUTATOR
Failure
of
the
motor
to
start
or
to
operate
efficiently
is
usually
caused
by
worn
or
damaged
brushes,
brushes
that
stick
in
the
holders
and
fail
to
make
proper
contact
with
the
commutator,
or a
dirty
or
rough
commutator.
Occasional
inspection
of
brushes
and
commutator
is
recommended
To
inspect
the
brushes,
remove
plug
from
power
source.
Unscrew
brush
retainer
caps
located
on
the
motor
housing.
Pull
out
brush
retainer
springs
and
brushes.
Replace
brushes
when
worn
down
to
3/16". Always
replace
both
brushes
at
the
same
time.
When
inspecting
brushes,
also
check
the
commutator
for
wear.
If
badly
worn,
send
the
complete
tool
to
an
Authorized
MILWAUKEE
Service
Station
for
under-
cutting
and
dressing
of
the
commutator.
LUBRICATION
The
MILWAUKEE
Belt
Sander
is
equipped
with
greased,
sealed
bearings
and
requires
no
further
lubrication.
TIMING
BELT
After
approximately
200
hours
of
use
the
timing
belt
should
be
checked.
Remove
the
timing
belt
cover.
Check
the
teeth
on
the
belt.
If
excessively
worn
or
missing,
replacement
can
be
obtained
through
an
Authorized
MILWAUKEE
Service
Station.
Replace
timing
belt,
cover
and
screw.
VACUUM
BAG
KIT
(Optional)
3"
Cat.
No.
48-09-0100,
4"
Cat.
No.
48-09-0200
The
Vacuum
Bag
Kit
can
be
used on
all
models
of
MILWAUKEE
Belt
Sanders.
The
kit
consists
of
a
vacuum
bag,
a
rear
motor
housing
cover, a
vacuum
heel
and a
gasket.
To
assemble
the
Vacuum
Bag
Kit,
remove
the
two
screws
holding
the
rear
motor
housing
cover.
Replace
the
cover
with
the
one
furnished
with
the
kit.
Next,
turn
the
belt
sander
over
and
remove
the
black
heel
located
near
the
rear
drive
pulley.
Replace
the
heel with
the
Vacuum
Pick
Up
Heel
supplied.
Remove
the
timing
gear
cover.
Re-
move
gasket
and
replace
it
with
gasket
supplied
with
the
kit
so
both
openings
in
the
casting
are
exposed.
Replace
timing
gear
cover
and attach
the
vacuum
bag
to
the
rear
motor
housing
cover.
TO
EMPTY
THE
VACUUM
BAG
For
most
efficient
operation,
empty
the
dust
bag
when
it
is
half
full.
Open
the
zipper
and
shake
out
the
dust.
Occasionally
slip
the
bag
off
the
wire
frame
and
turn
the
bag
inside
out.
Brush
the
dust
accumulation
from
the
lining
with
a
soft
brush.
This
will
permit
the
bag
to
"breathe"
better.
Carefully
slide
the
bag
over
the
wire
again
and
replace
on
the
Belt
Sander.
