Milwaukee LDT1002BM - Assembly; Under Carriage Assembly; Pedestal Assembly

5

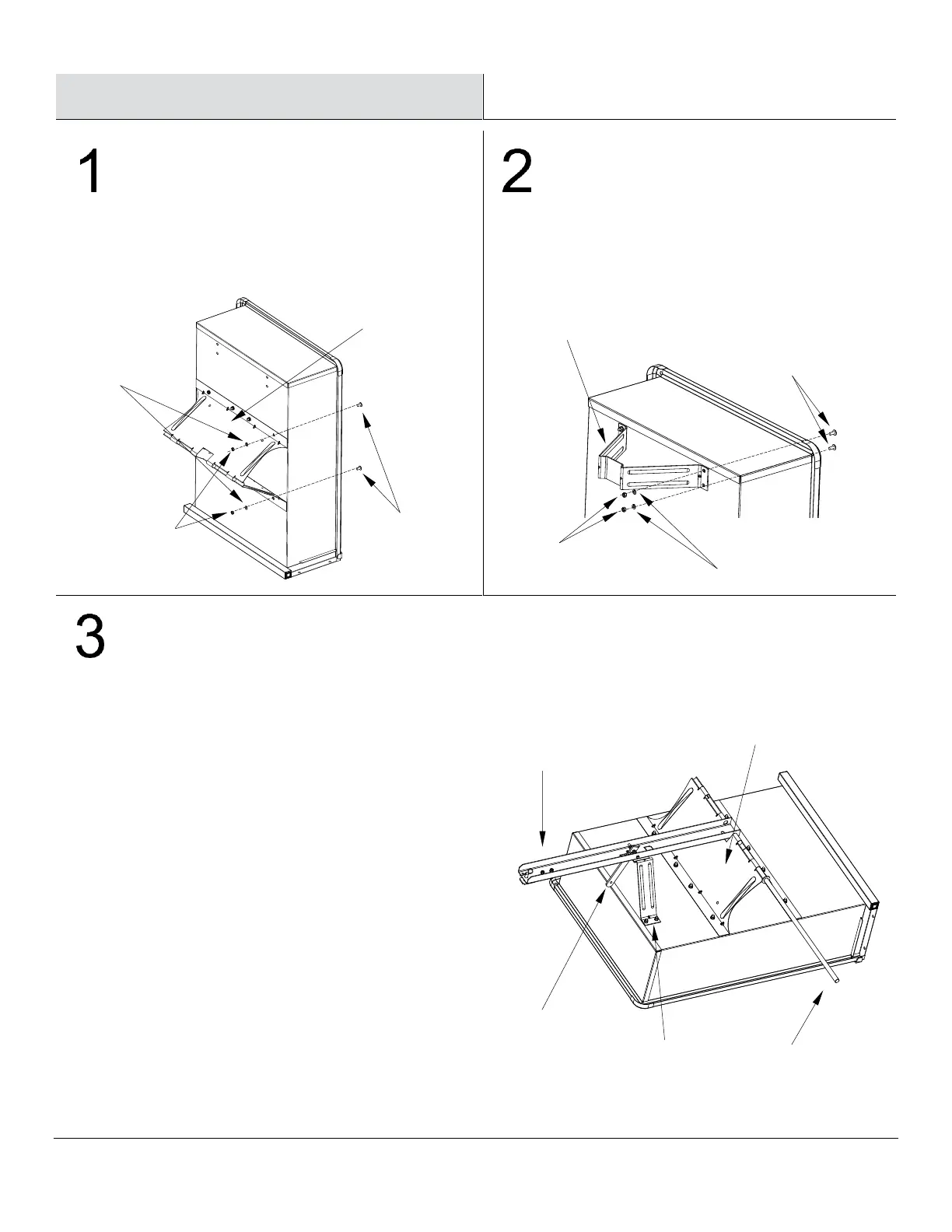

Assembly
Under Carriage Assembly
Pedestal Assembly
□ Attach the Under Carriage (N) to the bottom of the
Cart Body (L) using 3/8 in. x 3/4 in. Truss Head
Bolts (G), 3/8 in. Lock Washers (D) and 3/8 in. Hex
Head Jam Nuts (C).
□ Attach the Pedestal (O) to the Cart Body (L) using
5/16 in. x 3/4 in. Truss Head Bolts (I), 5/16 in.
Lock Washers (F) and 5/16 in. Hex Head Nuts
(E).
Tow Bar Assembly
□ Place the Cart Body (L) in a flat position with the
Under Carriage (N) and the Pedestal (O) face up.
□ Slide the Axle (P) halfway through the Under
Carriage (N).
□ Place the Tow Bar Assembly (M) into the center
slot of the Under Carriage (N).
□ Lock the Latch into the Pedestal (O) and slide the
Axle (P) through the holes in the Tow Bar Assembly
(M).
□ Slide the Axle (P) the rest of the way through the
Under Carriage (N).
Pedestal (O)
5/16 in. Hex
Head Nut (E) x 4
Tow Bar
Assembly (M)
Latch
5/16 in. x
3/4 in. Truss
Head Bolt (I)
x 4
Axle (P)
5/16 in. Lock
Washer (F) x 4
)
3/8 in. Lock
Washer (D) x 8
3/8 in. x 3/4 in.
Truss Head
Bolt (G) x 8
3/8 in. Hex Head
Jam Nut (C) X 8
Pedestal (O)
Under Carriage (N)
Under Carriage (N)
