Tornado Product Manual

4 SETTING UP ON THE BENCH

The radio units can be interconnected for bench-based testing or configuration. Attenuators with the appropriate value and

power handling must be used. The

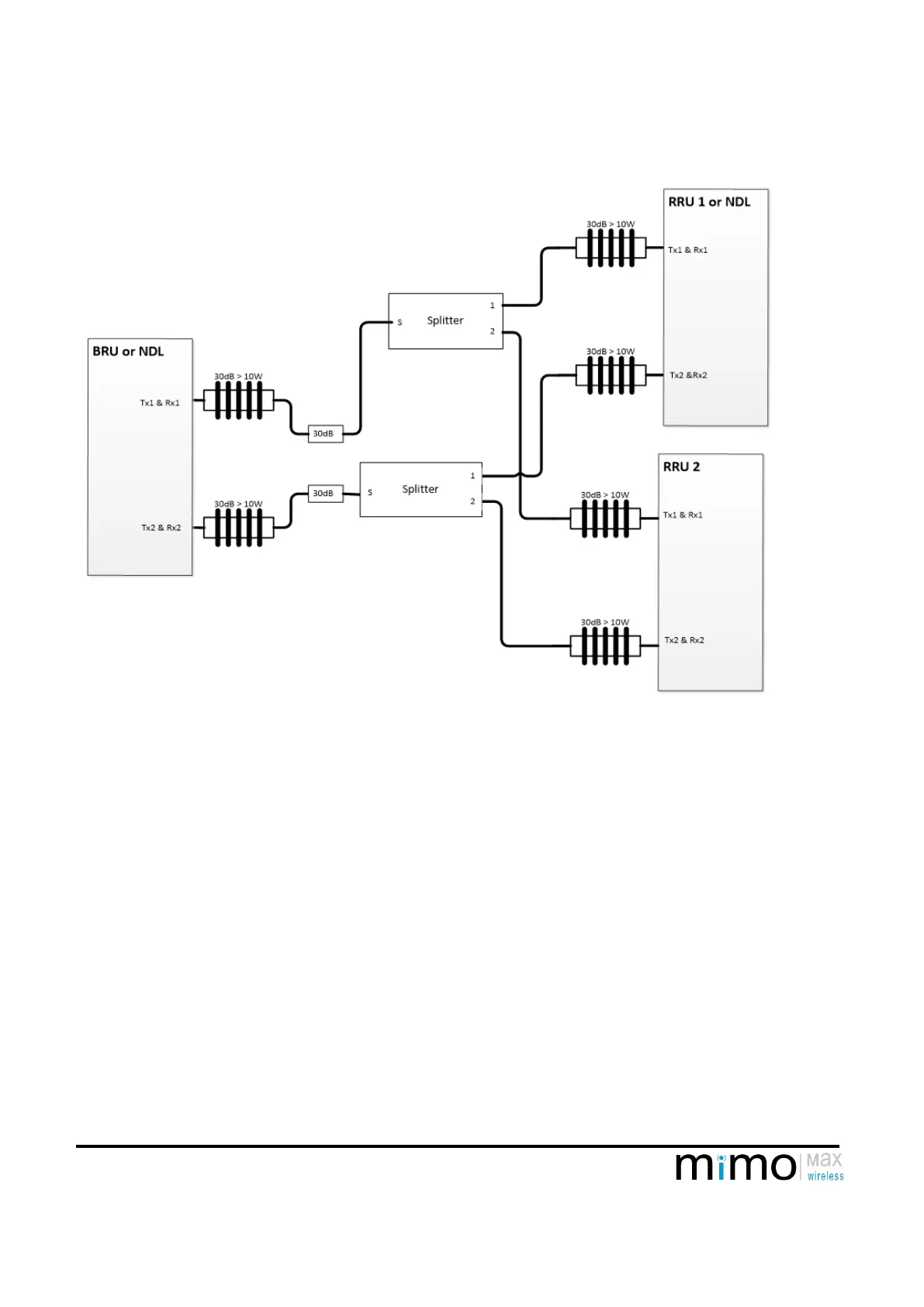

RF Wiring

Diagram shows the interconnection of attenuators, cables and splitters for a standard bench test.

Note: If an NDL system or an MDL system with only one RRU is desired then the splitters, second RRU and corresponding

attenuators can be omitted. MiMOMax can supply a splitter that provides 4 ports and ~30dB attenuation.
