Tornado Product Manual

8 RADIO REFERENCE INFORMATION

8.1 MECHANICAL DIMENSIONS AND MOUNTING

This section describes the dimensions of the Tornado radio unit and the various methods of mounting.

8.1.1 Dimensions

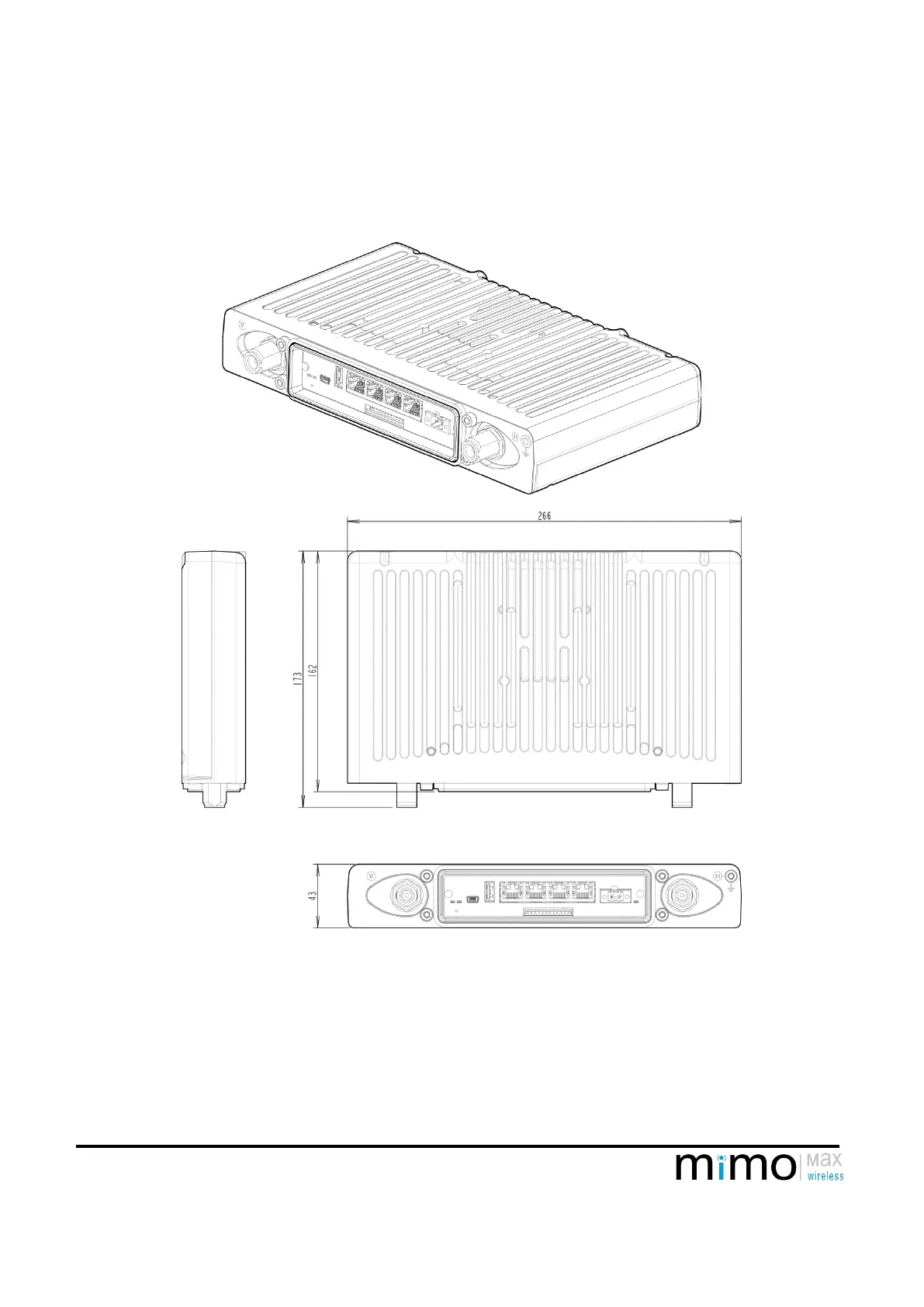

Mechanical Dimensions (All units are in mm)

8.1.2 Mounting

The radio unit can be mounted in Rack, Pole, Wall or DIN mount configurations. Each of these styles of mounting can be

further customised further by collocating or separating aspects such as batteries and power supplies. There are advantages

and disadvantages for each scenario.
