8.1.2.1 Rack Mount
The Rack mount kit is designed to be used to mount the Tornado into a standard 19” rack enclosure, occupying 1U of rack
height. Tools required are a #2 Philips screwdriver.

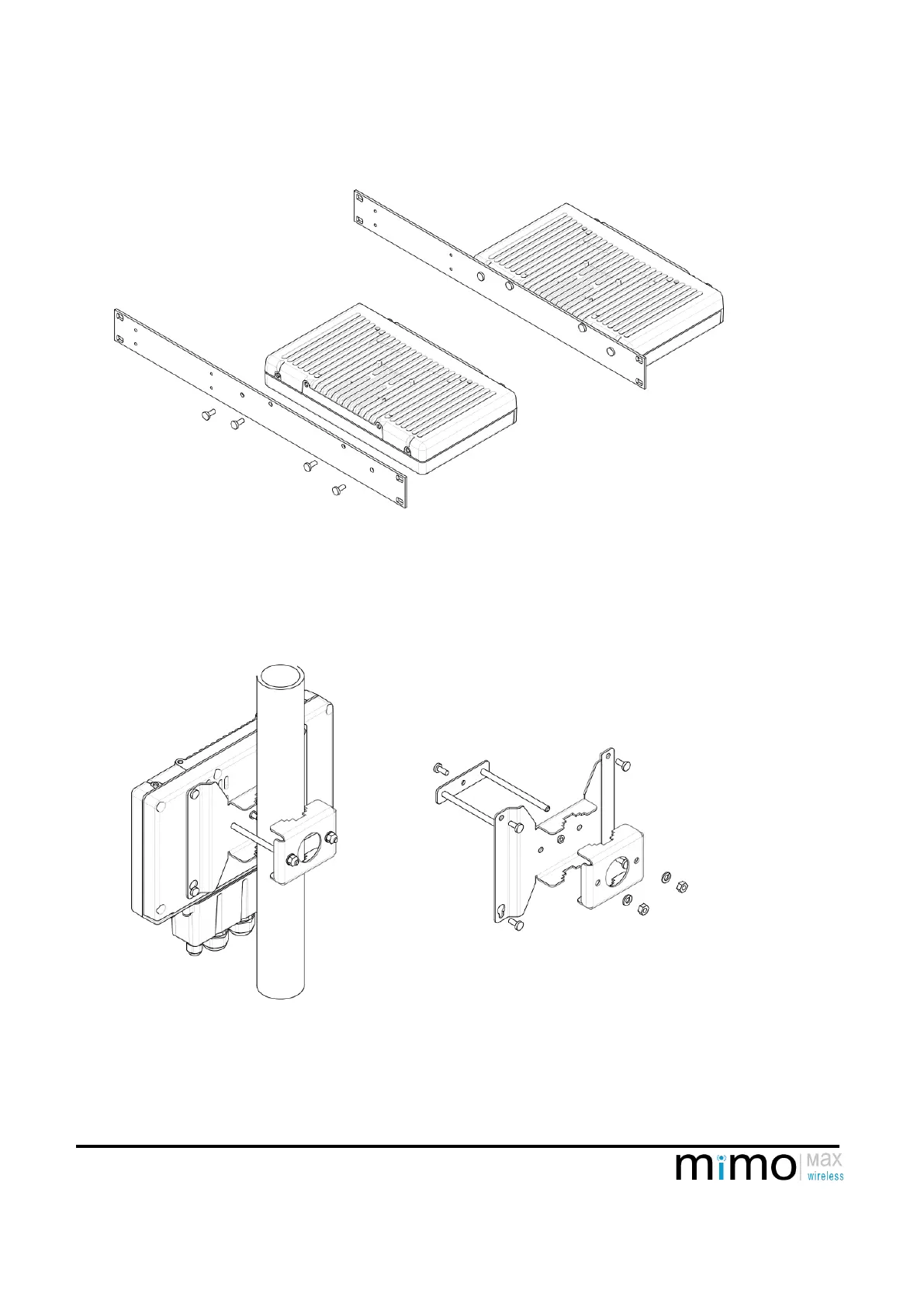

Assembled and exploded view of the Tornado rack mount
8.1.2.2 Pole Mount
The pole mount kit can be used to mount the tornado onto a pole with a diameter between 23 and 51 mm. If the tornado is
mounted outside, then the weather proof hood must be used. Tools required are a #2 Philips screwdriver and a 10 mm
spanner.
Assembled and exploded view of the Tornado pole mount
8.1.2.3 Wall Mount
The wall mount kit can be used to mount the Tornado to an existing structure, or even to a large diameter wooden pole. If the
Tornado is mounted outside, then the weather proof hood must be used.
