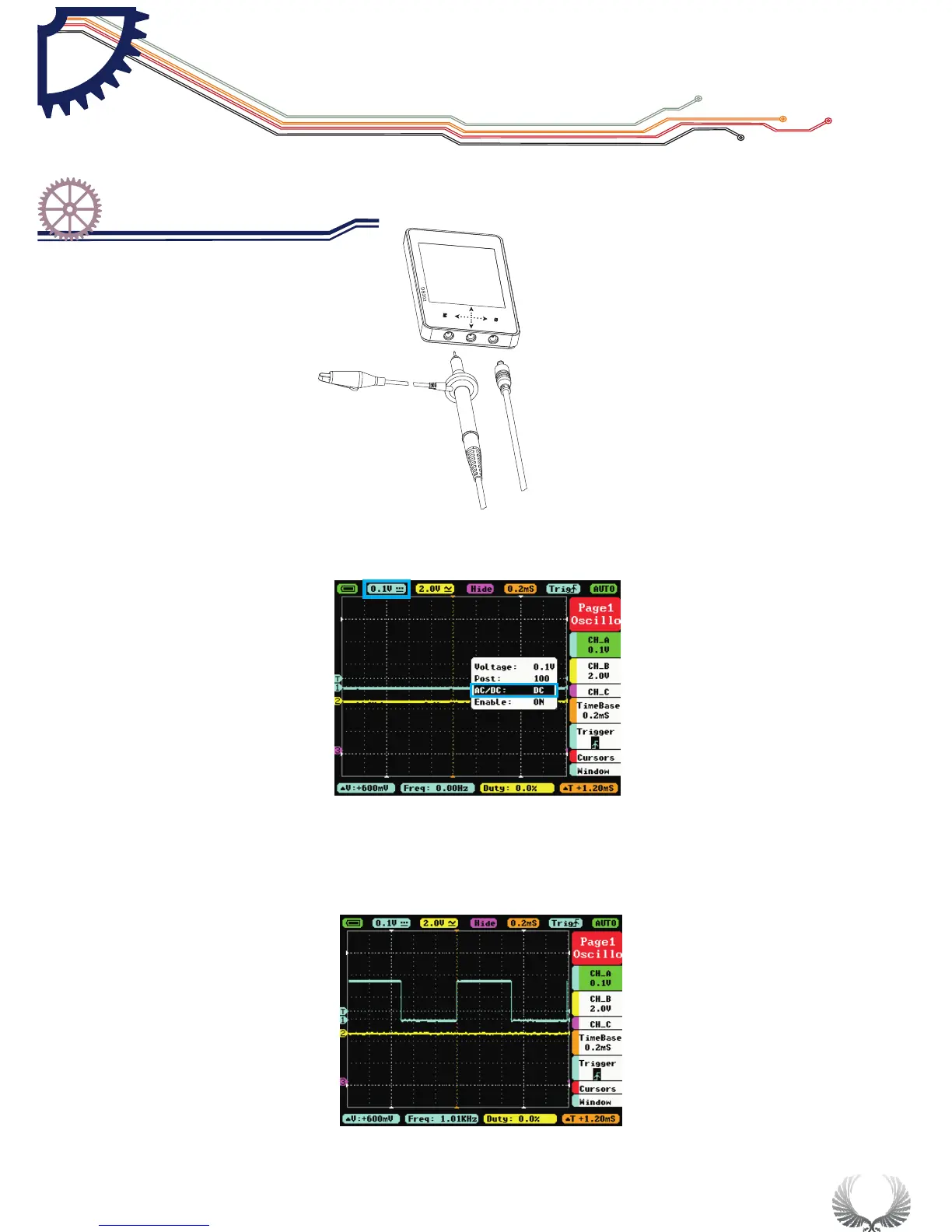

Min DS202 - Pre-use Checks

Connect probes to both the MCX and CHA input jacks
Adjust relevant parameters of CH A：
Adjust the DC mode in AC/DC function in CH A
Voltage adjustment: adjust probe X1 to 1V, adjust probe X10 to 0.1V
1.
2.
Measure WAVE OUT outlet waveform
10
Start Guide
Check up before use
Chapter 3
