Introduction
1-4

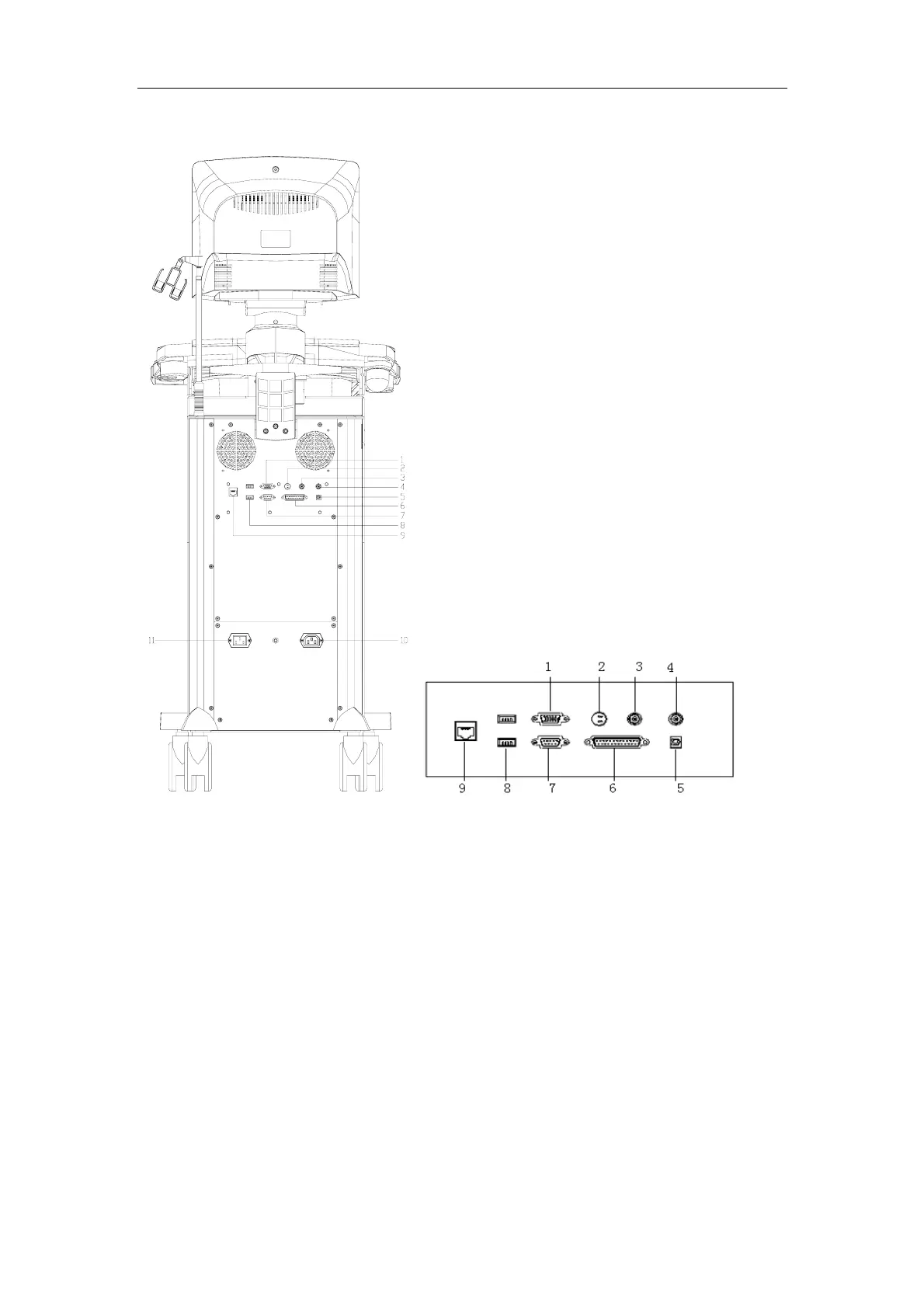

Figure for IO ports
Note: 1. VGA 2. SIVIDEO 3. VIDEO 4. VIDEO 5. REMOTE 6. Parallel port 7. RS232 8. USB
9. NET 10. Power outlet 11. Power inlet
Rear view for the DP-9900plus/DP-9900/DP-9600 systems
