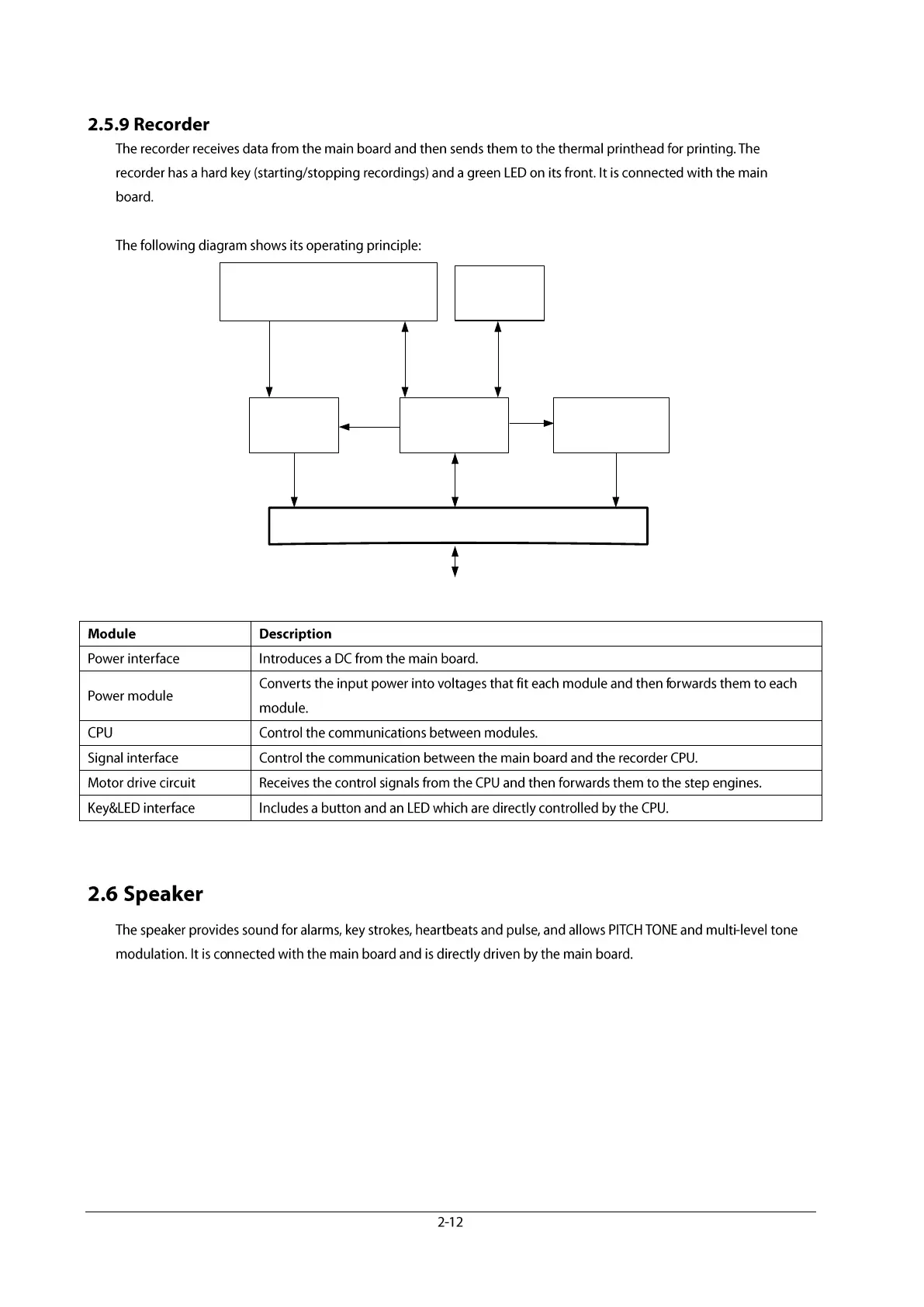

FPC interface
Main Board
Recorder
key board
Power
module
Power supply
interface
Recorder
CPU
Drive circuit
Signal
interface
Key & LED
interface
Motor
control
Power
supply
control
Thermal print head
