Passport 12/Passport 8 Operator’s Manual 3-7

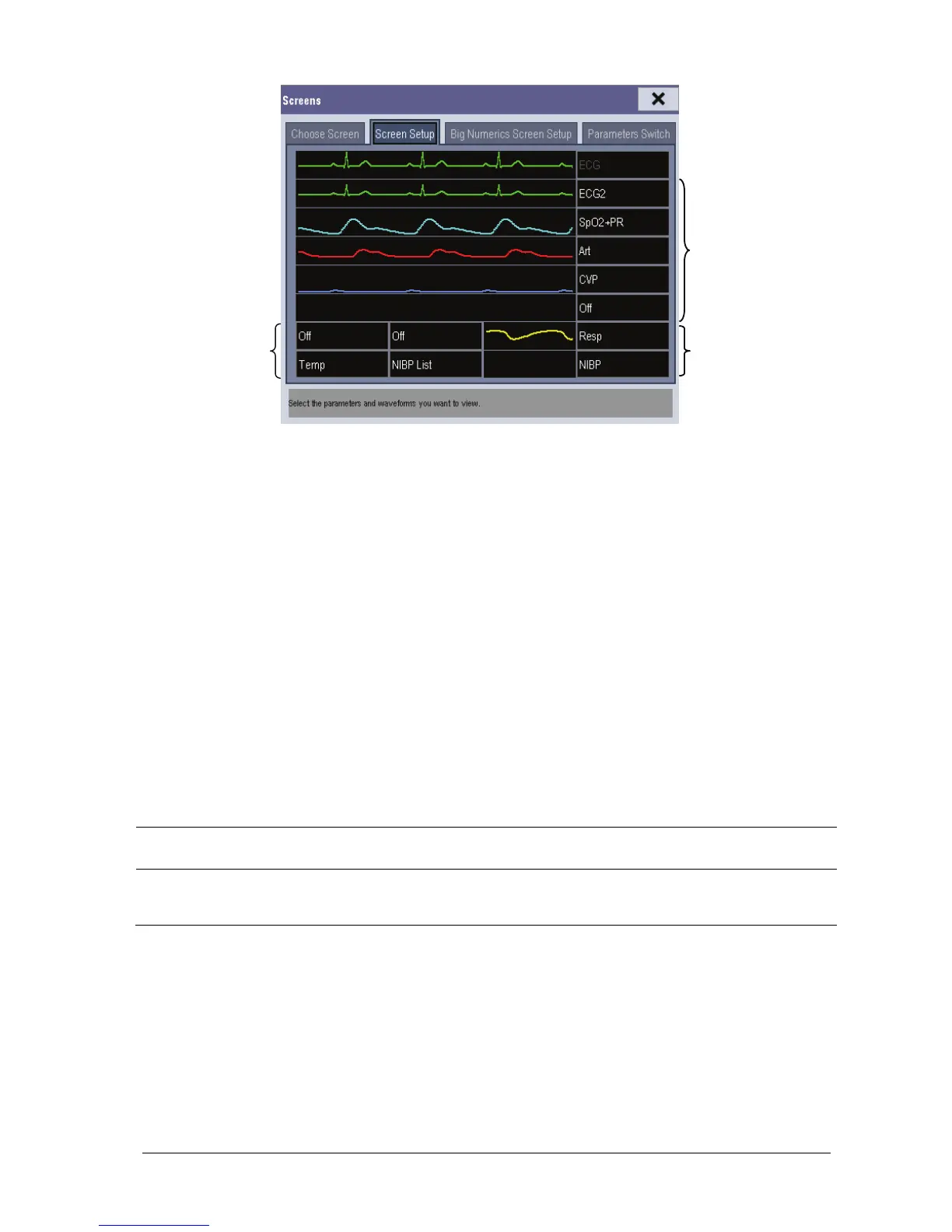

The ECG parameter and the first ECG waveform always display in the first row. The configurable areas can be classified
as Area A, Area B, and Area C.
In Area A, you can choose to display the parameter windows and their waveforms (if one exists). Each parameter
and the associated waveform are displayed in the same row.
In Area B, you can choose to display the parameter windows. But if all parameters in area C are set to [Off], both
the parameter and waveform selected in the first row of area B will be displayed.
In Area C, you can choose to display the timer and any parameters without associated waveforms.
The screen automatically adjusts to ensure the best view based on your screen setup.
If no corresponding parameter or waveform displays after the module is inserted, perform the following inspections:
Check the connection between the module and lead, cable, sensor, or external device.
Enter the [Screen Setup] window for the desired display configuration by selecting [Main Menu] → [Screen
Setup] → [Screen Layout >>].
Check that the parameter is turned on in [Parameters Switch] window.
CAUTION
Unallocated parameters in the [Screen Setup] window will not display. However, the monitor still sounds
alarms for these parameters.
Area C
Area B
Area A
To Next Page
