- To ensure the required free moving space of the weighing facility, a maximum of
3 mounting kits with constrainer may be used to constrain a weighing object.
Round containers are the exception (image ① and ②). In this case, any number of
constrainers can be installed, provided that they are tangentially aligned.
Special mounting kits are available for weighing points without constrainers.
Alternatively, the constrainer can simply be removed.
With elastic constructions, it may be necessary to deviate from this recommendation
in order to guarantee the weighing object has sucient stability.

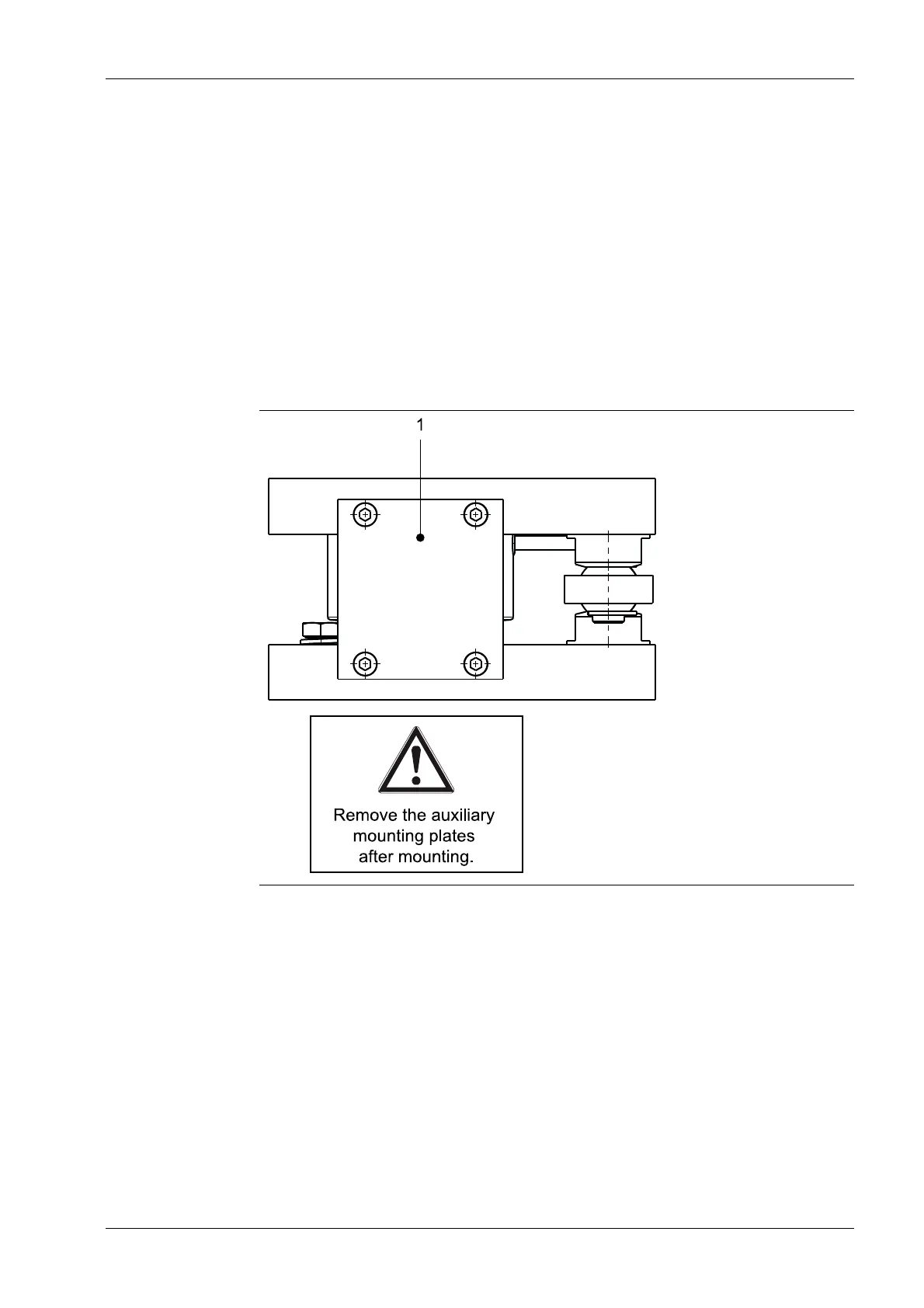

3.2 Mounting aid
Example: PR 6012/31
The auxiliary mounting plate (1) is intended to facilitate installation of the mounting kit
and load cell.
3 Recommendations for installation Mini FLEX and Mini FLEXLOCK mounting kits PR 6012/01, ../31, ../41
Minebea Intec EN-7
