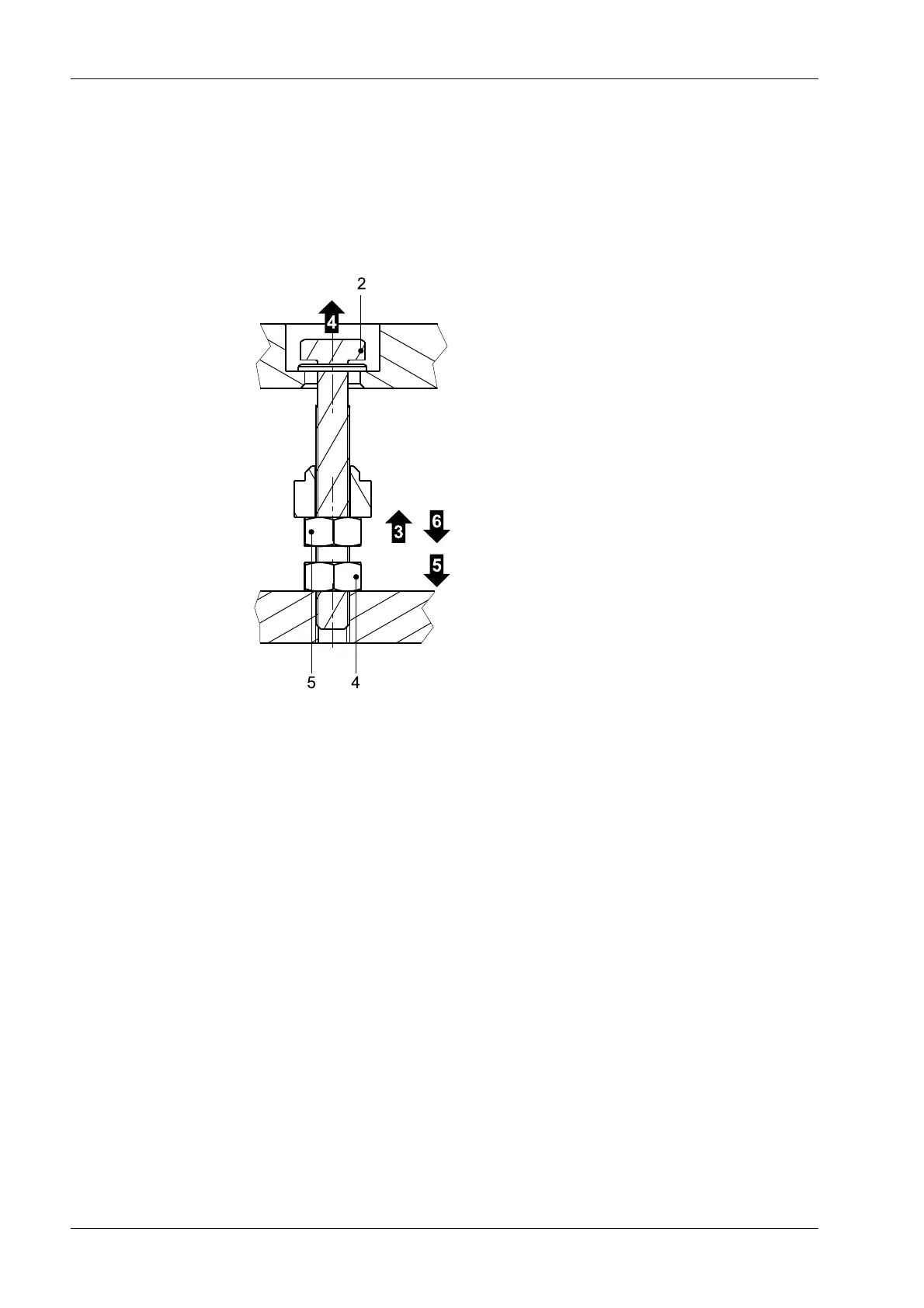

If the distance is too short:
1. Turn the nut (5) downwards.
2. Check that the distance A = 1–2 mm.
3. Turn the nut (5) upwards to loosen the nut (4).
4. Turn the screw (2) upwards to congure the safety distance "A".
5. Re-secure the nut (4).
6. Turn the nut (5) downwards again.
