Lift the vessel as follows:
Use the load cell as follows:

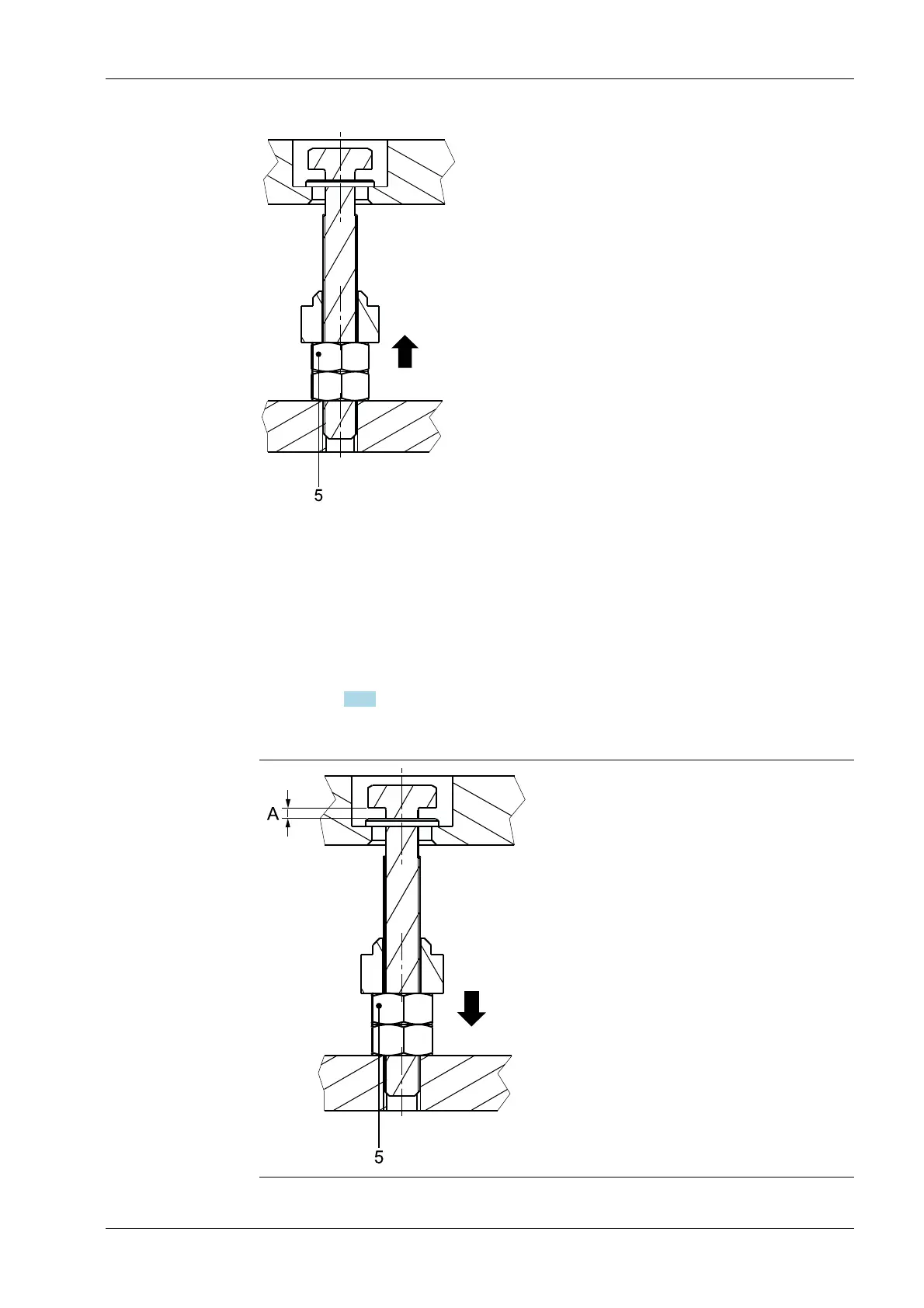

3.2.3 Adjusting the built-in lift-o protection
1. Turn the nut (5) until the load cell is unloaded and can be removed together with the
upper load disc.
2. Insert the load disc into the load cell and fasten with the nut.
3. Insert the load cell into the mounting kit.
4. Load the load cell slowly and adjust the built-in lift-o protection as described in
Chapter 3.2.3.
3 Recommendations for installation Mounting kits PR 97/00, ../01
Minebea Intec EN-7
