3.2 Internal lift-o protection with integrated jack-up
3.2.1 General instructions

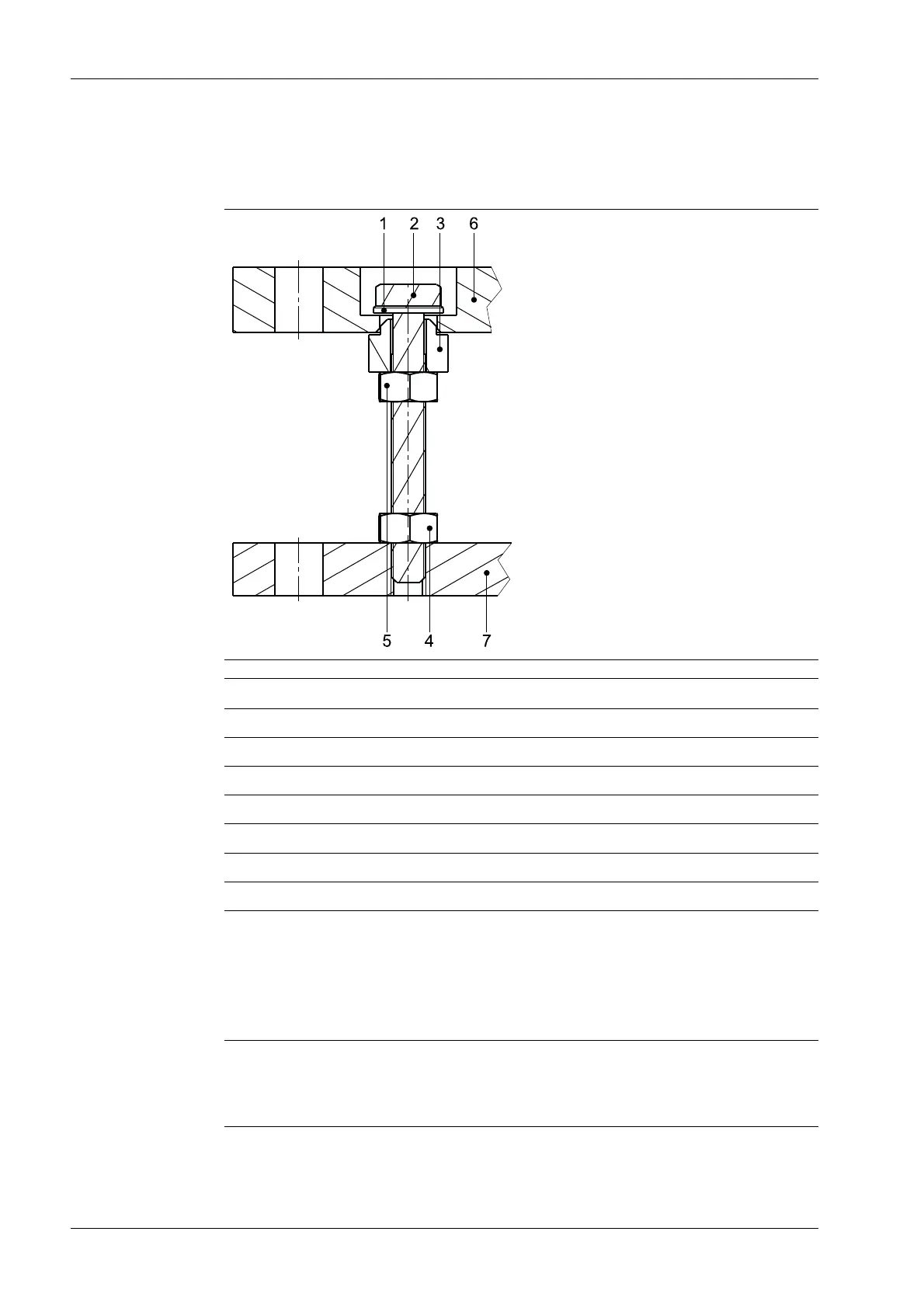

No. Description
1 Washer (2×)
2 Screw (2×)
3 Centering aid (2×)
4 Nut (2×)
5 Nut (2×)
6 Upper plate
7 Lower plate
The mounting kits are equipped with an internal lift-o protection, i.e. no additional
borings apart from the mounting holes in the vessel foot are required.
The gure shows the position for installation of the load cell.
3.2.2 Jack-up with centering guide
Note:
If the weighing object is fully displaced, the jack-up with the centering guide will be
restricted in terms of functionality.
