3 Recommendations for installation
3.1 Load cell arrangement

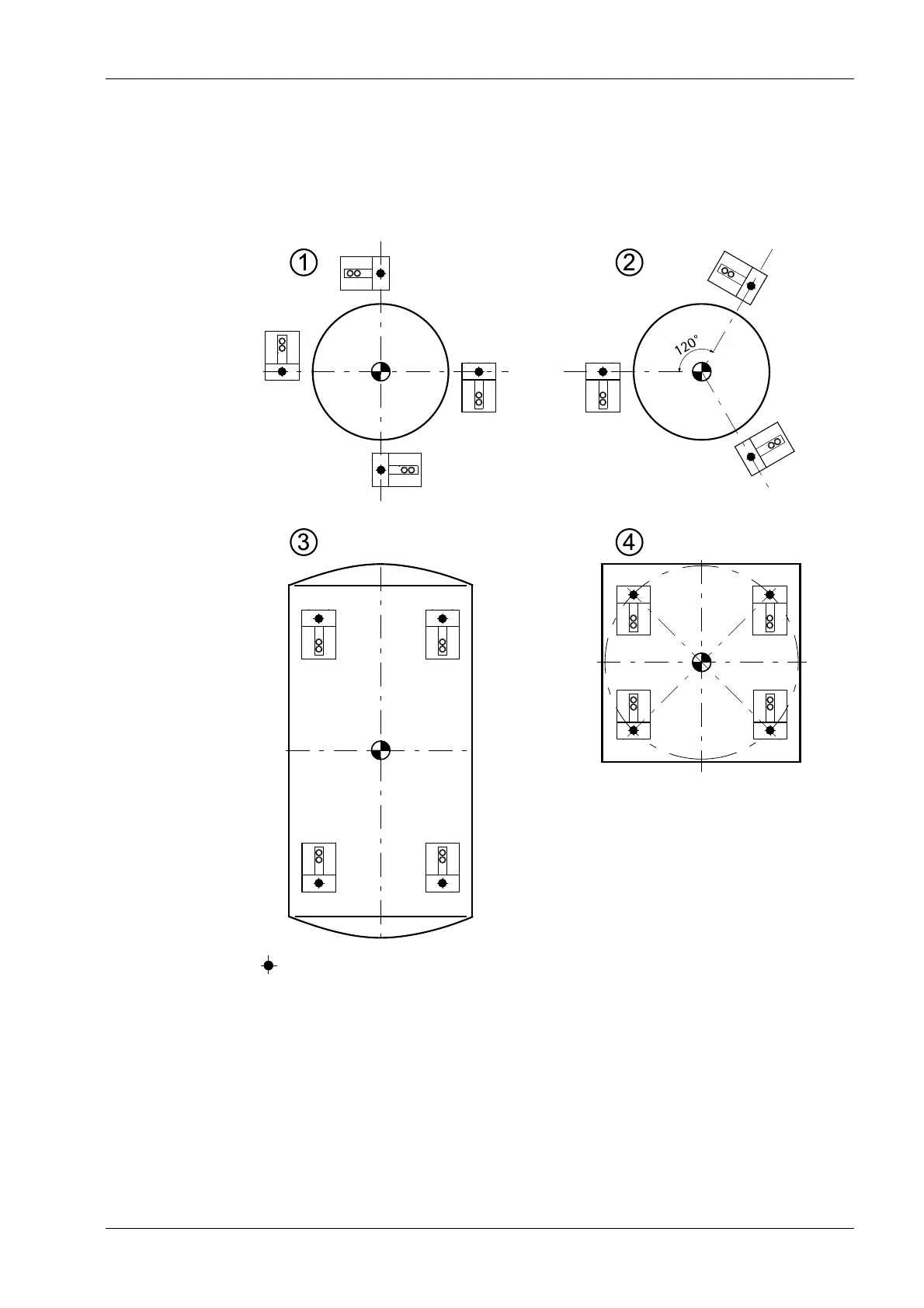

Examples:
Load application
- The mounting kits are not provided with an integrated constrainer.
The horizontal forces thus aect the load cells directly with the permissible
eccentricity (approx. ±3 mm) fully utilized.
These forces must not exceed the maximum permissible horizontal load of the load
cells.
If there will be higher horizontal forces, external constrainers are indispensable.
3 Recommendations for installation Mounting kits PR 97/00, ../01
Minebea Intec EN-5
