4-5. Digital linearize.
After the calibration, the measurement error of some scale interval levels might be caused between
the zero and span (weighing capacity) by the influence of the measuring section etc.
The digital linearization function executes the compensation of three points or less except the zero
and span, and to reduce the measurement error.
4-5-1. Changeover to digital linearization mode
Make the condition from the normal measurement
mode to the stand-by condition by pressing the
key.
Press the key with pressing the key,
is displayed.
Press the key after pressing the key ,
is displayed.
is displayed after pressing the
key twice, and enter into the digital
linearization mode.
Measurement mode
Stand-by condition
Digital linearization mode
Move to the digital linearization mode.
＋
D
i
s
p
l
a
y
D
i
s
p
l
a
y

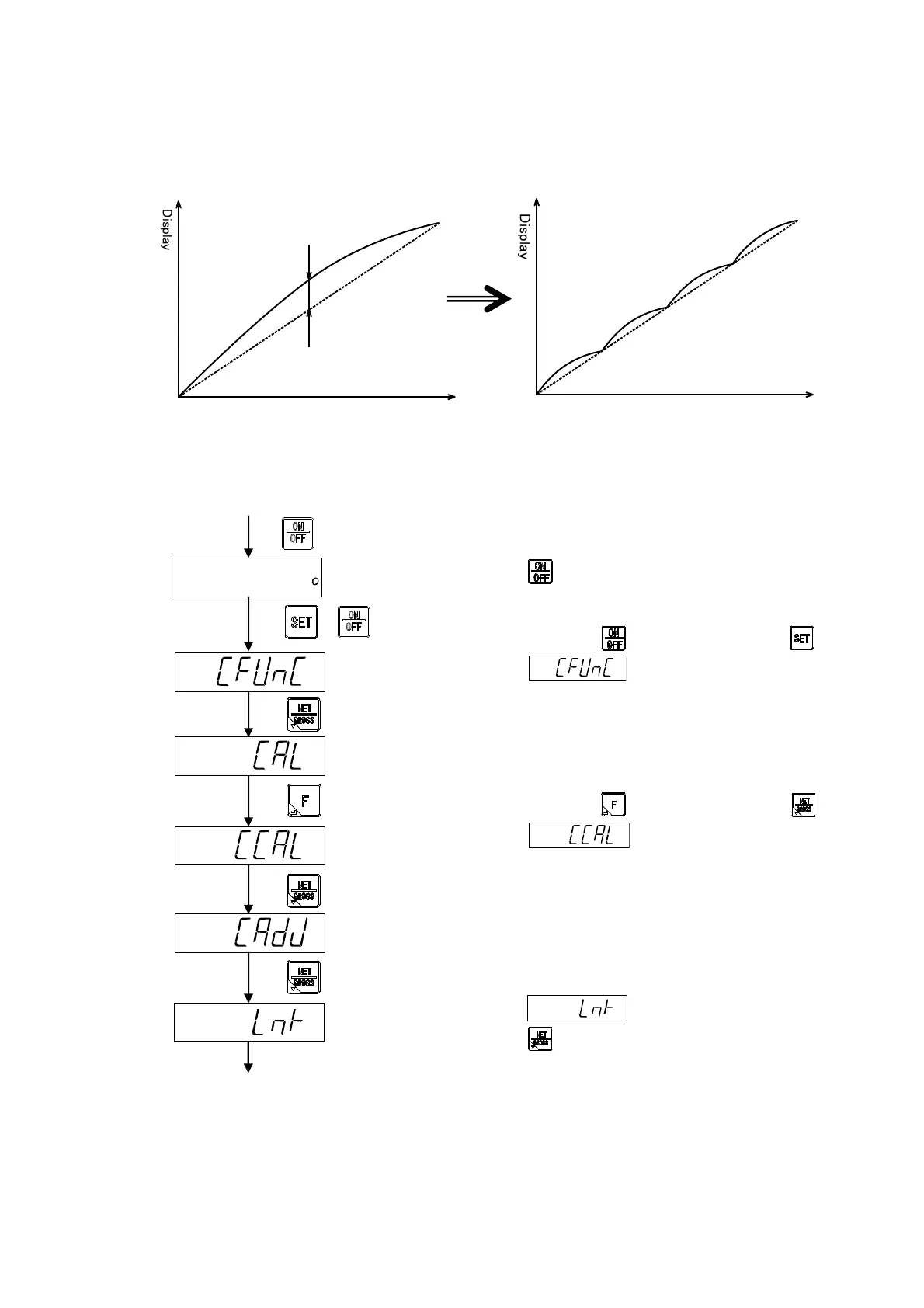

Weight value
