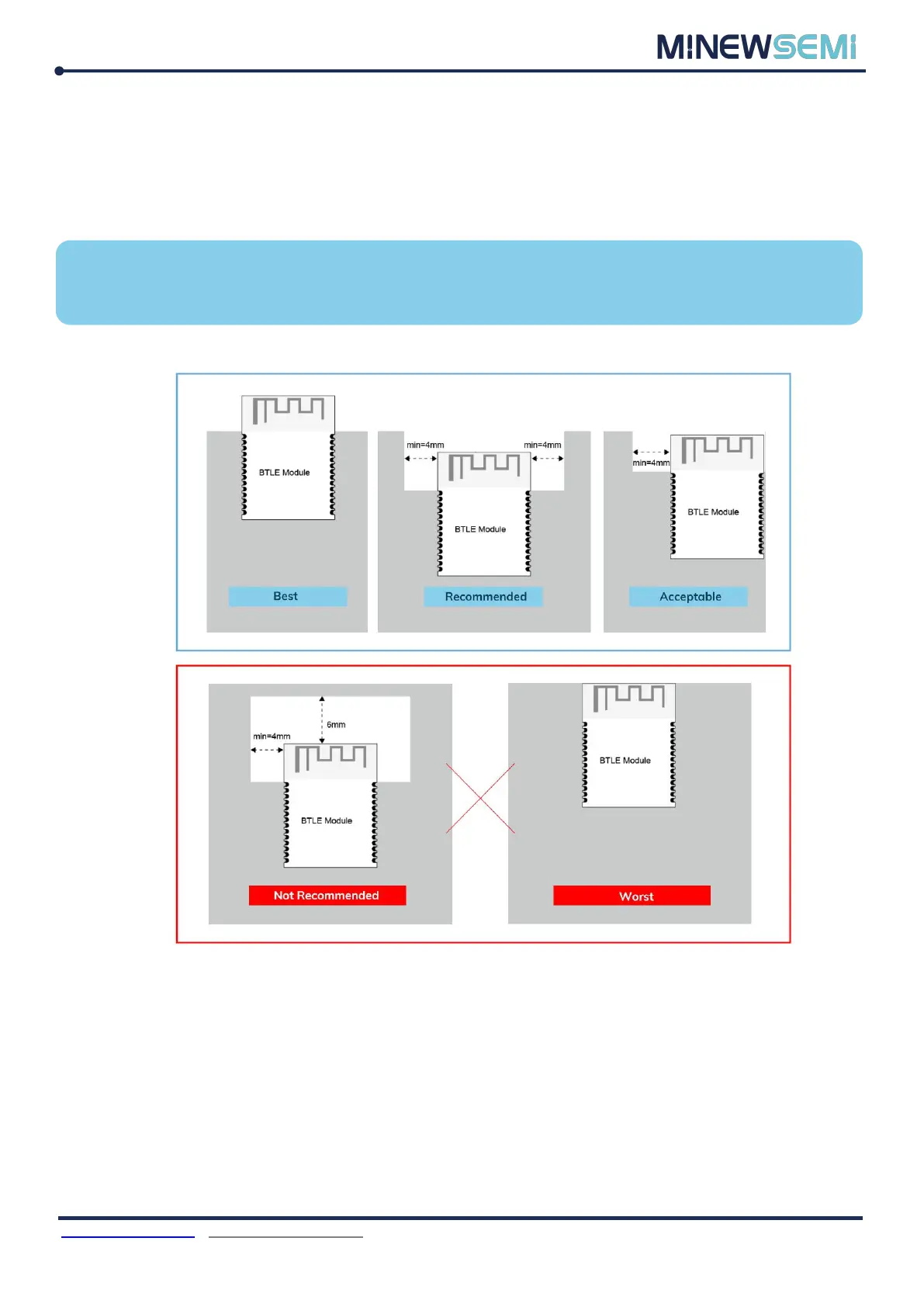

Module antenna area couldn’t have GND plane or metal cross line, couldn’t place components
nearby. It is better to make hollow out or clearance treatment or place it on the edge of PCB
board.
Notice: Refer to examples as below, and highly suggest to use the first design and the
adjustment of modules antenna design according to the first wiring.
