4. KVM Extender USB Units
4.1 Transmitter Button / LEDs
Button / LED Function
Lock button Press to keep control of the connected computer at the
Transmitter position
Control LED Blinks when Transmitter position has control of the Transmitter
position computer
Lock LED Blinks after either Transmitter or Receiver position presses the
Lock button for control
4.2 Receiver Buttons / LEDs
The Receiver can be located up to 500 ft. (150 m) away from the Transmitter.
Button / LED Function
Lock button Press to lock control of the Transmitter computer at the Receiver
position
Local button Press to toggle control between the local Receiver computer and
the remote Transmitter computer (See section 9.1: Keyboard
Hotkeys)
Lock LED Blinks after either Transmitter or Receiver position presses the
Lock button for control
Local LED Blinks when Receiver position has control of the Receiver
position computer

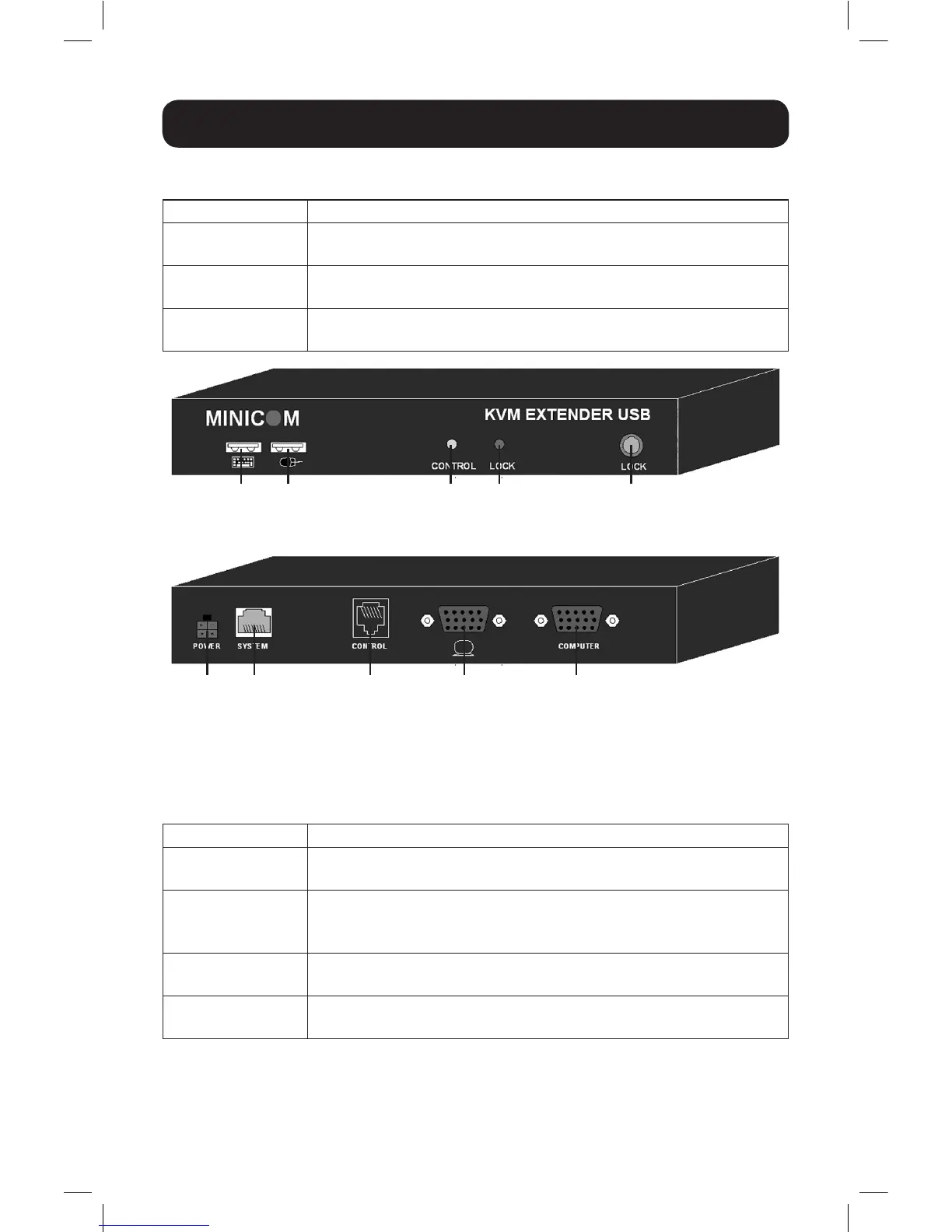

Transmitter front panel
Transmitter back panel
Keyboard
USB Connector
Power
Connector
Mouse
USB Connector
System
Cable
Control Box
(Optional)
Local
Monitor
Computer
Cable
Local
LED
Lock
LED
Lock Button
