Minicom 0DT60001 User Manual

6
7. Extender System with Optional
Computer at Receiver Position
8. Extender + KVM Switch System with
Optional Computer at Receiver Position
You can connect a computer to the Receiver position. The Receiver position can then
either control the local computer or the Transmitter position computer (Figure 7-1).
You can connect a KVM switch to the Receiver position. The Receiver position can then
either control the local computer or any computer connected to the KVM switch at the
Transmitter position computer (Figure 8-1).
The connections are the same as outlined above, with the addition of a computer
connected to the Receiver as follows:
Connect a VGA + USB cable to the Receiver and a computer. Connect the HD15
connector to the Receiver Computer port and connect the VGA and USB connectors to
the computer Monitor and USB ports.
The connections are the same as outlined above, with the addition of a KVM switch
connected to the Transmitter as follows:
Connect a VGA + USB cable to the Transmitter and the KVM switch. Connect the
HD15 connector to the Transmitter Computer port and connect the VGA and USB
connectors to the KVM switch Monitor and USB ports.
Transmitter
Transmitter
KVM Switch
Receiver
Receiver
Cat5 Cable -
500 ft. (150 m)
Optional PC
Optional PC
Cat5 Cable -
500 ft. (150 m)
Extended User
Position
Extended User
Position
Local User
Position
Local User
Position

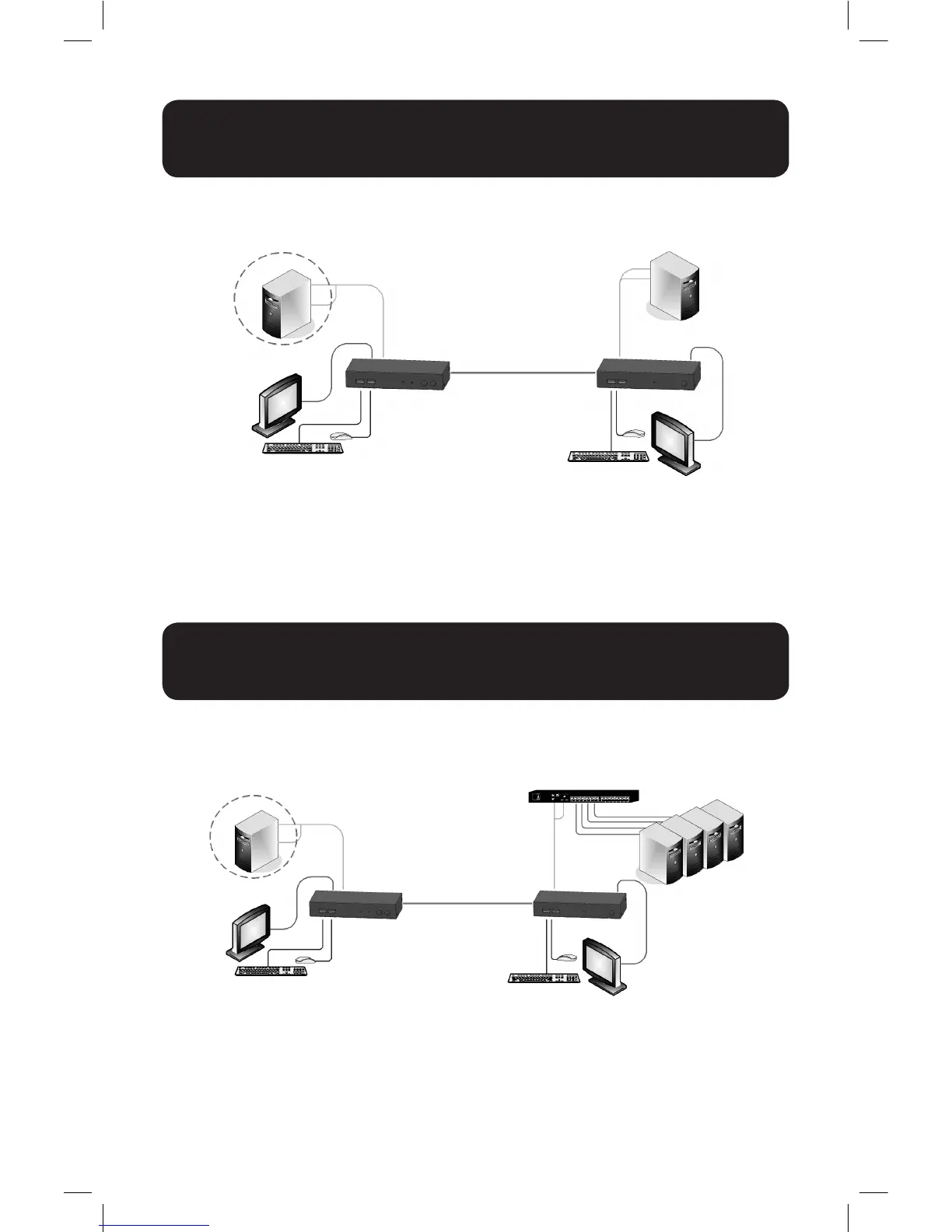

Figure 7-1: Extender system with optional computer at Receiver position
Figure 8-1: Extender + KVM switch with optional computer at Receiver position
17-04-194-9336F4.indb 6 5/1/2017 3:05:26 PM
