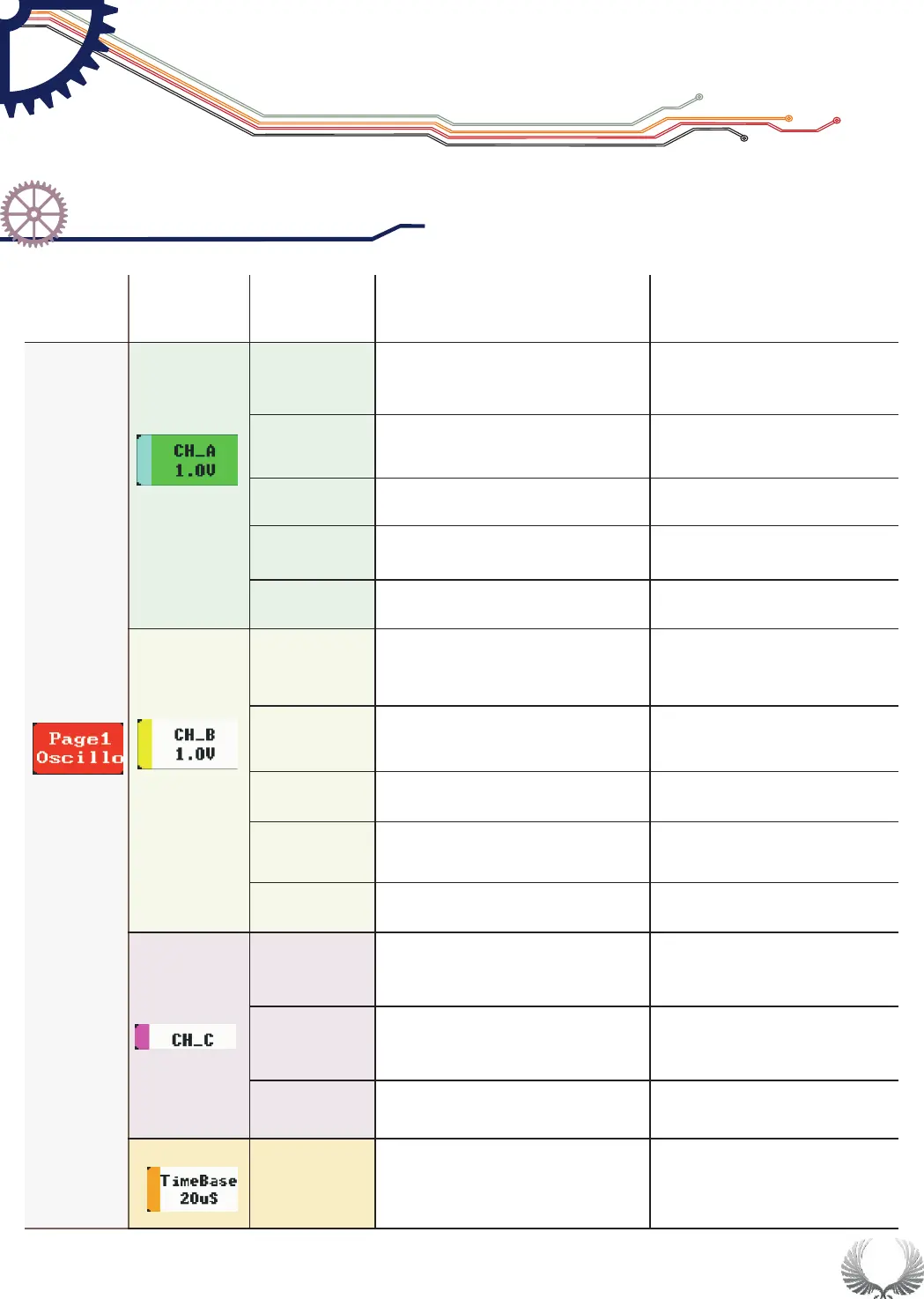

Minidso DS212 - Functional Overview - Parameters 1; Parameter Details - Channels and Timebase

14
Voltage
Channel A y-axis voltage
per grid
20mV/50mV/0.1V/0.2V/0.5V/
1.0V/2.0V/5.0V/10V
Post
Adjust Channel A waveform position
upward/downward in the window
Position:5-195
AC/DC
channel A coupling
AD/DC
Enable
channel A display/hide
ON/OFF
Probe
X1 / X10
Voltage
Channel B y-axis
voltage per grid
20mV/50mV/0.1V/0.2V/0.5
V/1.0V/2.0V/5.0V/10V
Post
Adjust Channel B waveform position
upward/downward in the window
Position: 5-195
AC/DC
channel B coupling
AD/DC
Enable
channel B display/hide
ON/OFF
Probe
X1 / X10
Match
Calculation between CH_A
waveform and CH_B waveform
–
RecA,RecB,RecC
A,-B,A+B,A-B,
Post
Adjust CH_C waveform position
upward/downward in the window
Position:5-195
Enable
CH_C display / hide
ON/OFF
TimeBase
TimeBase X-axis
voltage per grid
1.0us-2.0s(1-2-5
stepsequence )
Menu Options
Functions
Annotation for Functions
Description
Page1
Oscillo
Functional Over view
Specific Parameter Intro
Chapter 4
