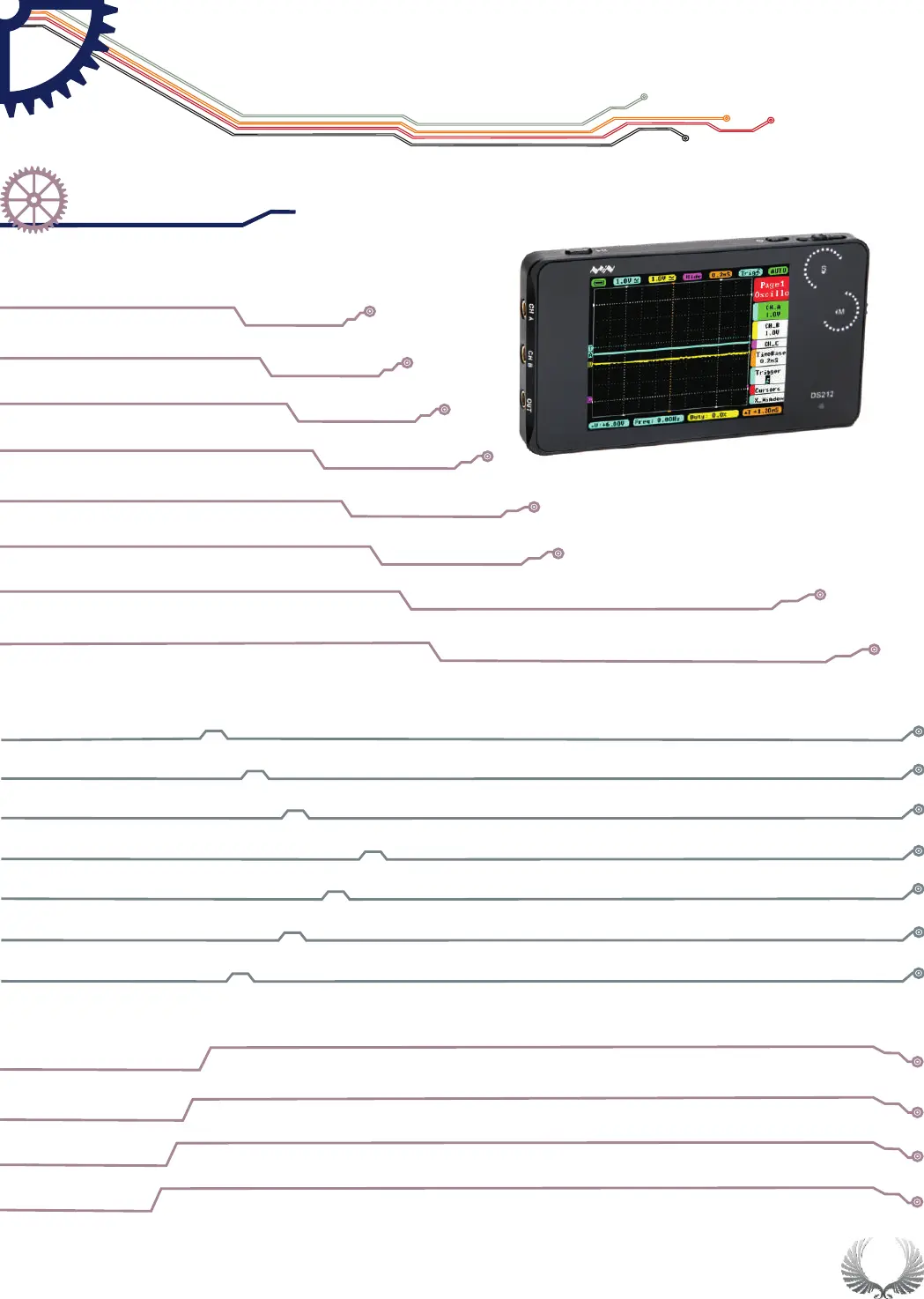

DS212 Over view
Chapter 1
Specifications
Performance parameters
Analog bandwidth
1MHz
Maximum sampling rate
10MSa s/
Maximum sample memory depth
8K
Analog input impedance
1MΩ
Maximum input voltage
± ( )40V X1 probe
Coupling
AC DC/
Vertical sensitivity
20mv/Div~10V/Div (in 1-2-5 sequence step)
Horizontal sensitivity
1uS/Div~2S/Div(in 1-2-5 sequence step)
Functionalities
Product parameters
Synchronous mode
Auto Normal Single None Scan ， ， ， ，
Trigger mode
Rising/Falling edge trigger
Modes
Vertical precise, horizontal precise measurement andtrigger threshold
Auto measurement
frequency, cycle time, duty cycle,DC RMS voltage/
Vpp /Vmax/Vmin/Vavg
Inbuilt signal Generator
10Hz~1MHz square wave (duty adjustable) or 10Hz~20KHz Sine/
Square/Triangle/Sawtooth wave
Storage
Inbuilt 8MB U disk storage for waveform data and images
Battery
Internal Lithium 500mAh battery, external USB port
Display
Color TFT LCD display ( )320X240 pixels
Dimension
（ ）100mm×56.5mm×10mm
