Minidso DS212 - Interface Introduction - Parameters; Parameter Area Details

/ /
(-A)/(-B)/(A+B)/(A-B)/
RecA/RecB/RecC/Hide
AUTO/NORM/SINGL/
NONE/SCAN/STOP
7
Menu
Item
Functions
Interface Introduction
Home screen introduction
Chapter 2

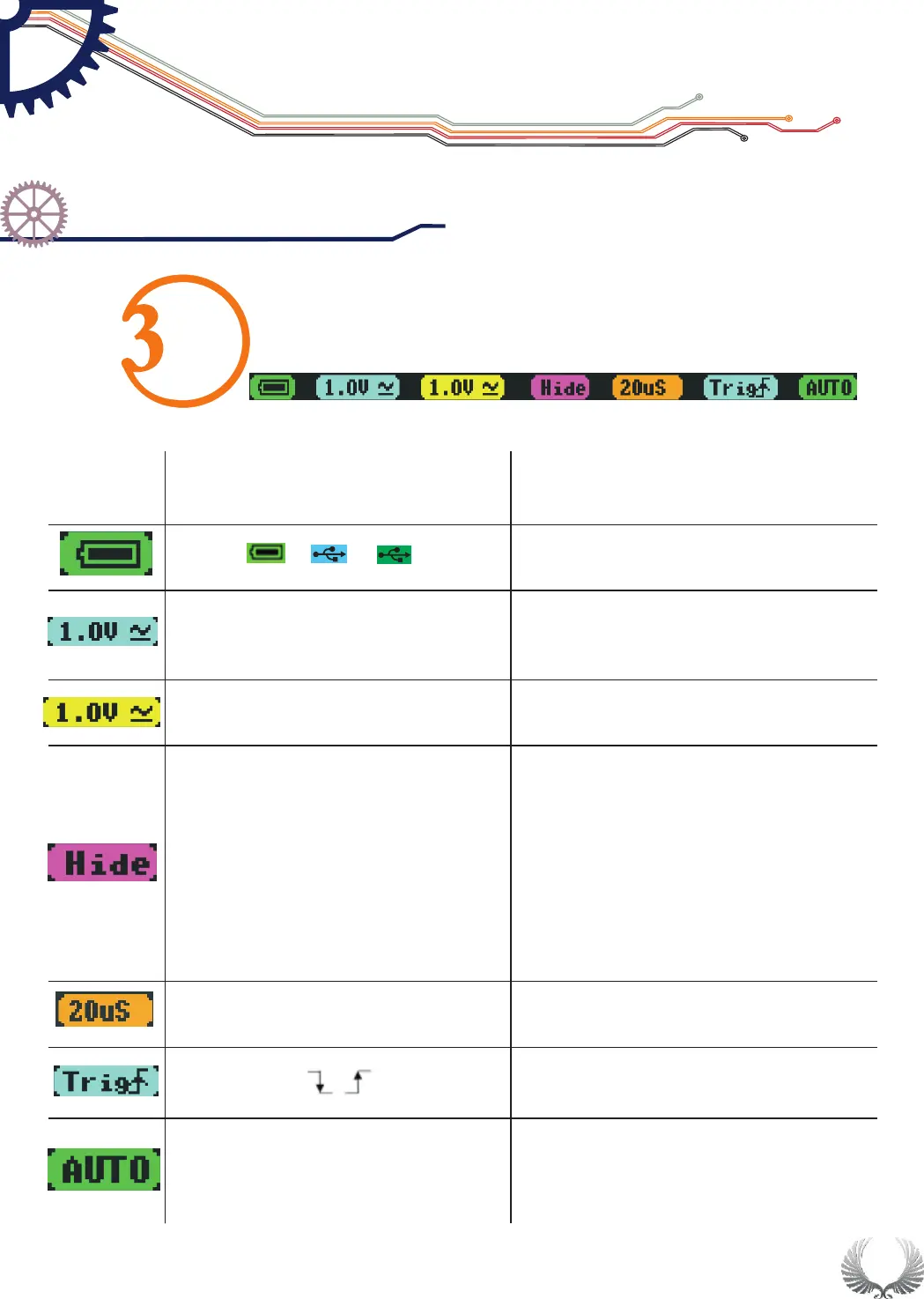

Parameter area introduction
Battery supply/USB charging/Full charge
(- ):
(- ):
( + ):
( - ):
A Ch_A waveform reverses
B Ch_B waveform reverses
A B Ch_A waveform overlaps with Ch_B waveform;
A B Subtraction of channel A waveform
and channel B waveform
RecA:Reload the last waveform saved in Ch_A;
RecB:Reload the last waveform saved in Ch_B
RecC:Reload the last waveform saved in Ch_C
Hide:Hide waveform
20mV—10V(1-2-5 sequence step
AC/DC
)
(Channel A) y-axis voltage per grid,
AC/ DC coupling method
20mV—10V(1-2-5 sequence step
AC/DC
)
(Channel B) y-axis voltage per grid,
AC/ DC coupling
Timebase (x-axis voltage per grid)
Trigger mode falling edge trigger/
rising edge trigger
：
Auto/Normal/Single/Slow Scan/
Instant Scan/Run/Pause
1.0uS—1S(1-2-5sequence step)
