CONNECTING THE BATTERIES IN SERIES
CONNECTING THE BATTERIES IN SERIES
(IF REQUIRED FOR YOUR MOTOR)
24 Volt Systems
Two 12 volt batteries are required. The batteries must be wired in
series, only as directed in wiring diagram, to provide 24 volts.
1. Make sure that the motor is switched off
(speed selector on “0”).
2. Connect a connector cable to the positive ( + ) terminal of
battery 1 and to the negative ( – ) terminal of battery 2.
3. Connect positive ( + ) red motor lead to positive ( + ) terminal
on battery 2.
4. Connect negative ( – ) black motor lead to negative ( – )
terminal of battery 1.
To trolling motor negative

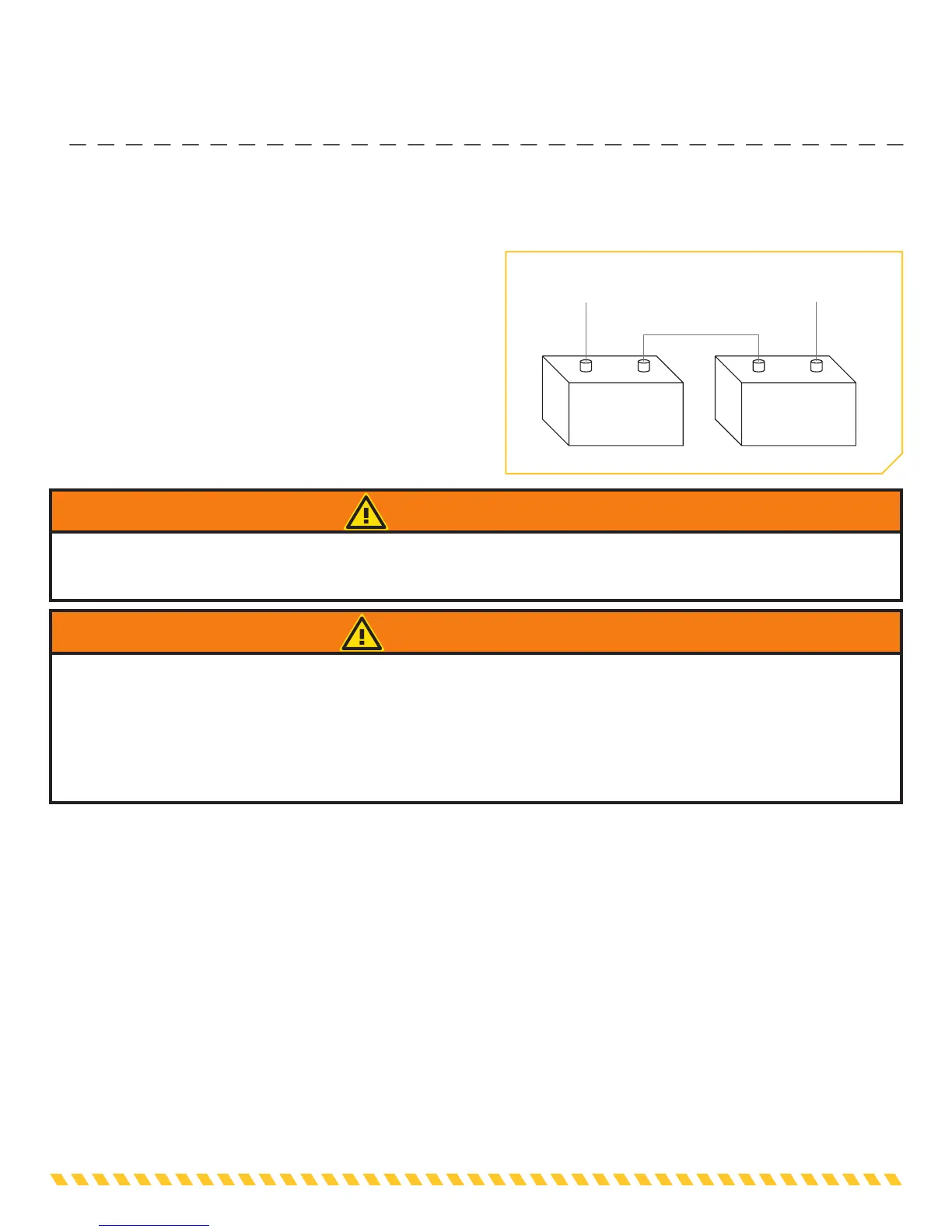

24 Volt Series Connection
Battery #1 (Low Side)
Neg - Neg -Pos + Pos +
Battery #2 (High Side)
+24 Volts to trolling motor
positive (or circuit breaker)
Two 12-volt batteries connected in series for 24 volts
WARNING
For safety reasons do not switch the motor on until the propeller is in the water. If installing a leadwire plug, observe proper
polarity and follow instructions in your boat owner’s manual.
WARNING
• For safety reasons, disconnect the motor from the battery or batteries when the motor is not in use or while the battery/
batteries are being charged.
• Improper wiring of 24/36 volt systems could cause battery explosion.
• Keep leadwire wing nut connections tight and solid to battery terminals.
• Locate battery in a ventilated compartment.
WARNING
For safety reasons do not switch the motor on until the propeller is in the water. If installing a leadwire plug, observe proper
polarity and follow instructions in your boat owner’s manual.
36 Volt Systems
Three 12 volt batteries are required. The batteries must be wired in series, only as directed in wiring diagram, to provide 36
volts.
1. Make sure that the motor is switched
off (speed selector on “0”).
2. Connect a connector cable to the
positive ( + ) terminal of battery 1 and
to the negative ( – ) terminal of battery
2 and another connector cable from the
positive ( + ) terminal of battery 2 to the
negative ( – ) terminal of battery
of battery 3.
3. Connect positive ( + ) red motor lead
to positive ( + ) terminal on battery 3.
4. Connect negative ( – ) black motor lead to negative ( – ) terminal of battery 1.
To trolling motor negative
24 Volt Series Connection 36 Volt Series Connection
Battery #1 (Low Side)
Neg - Neg - Neg -Pos + Pos + Pos +
Battery #2 (Middle) Battery #3 (High Side)
+36 Volts to trolling motor
positive (or circuit breaker)
Three 12-volt batteries connected in series for 36 volts
