MINN KOTA PowerDrive 70 series User Manual

INSTALLING THE POWERDRIVE

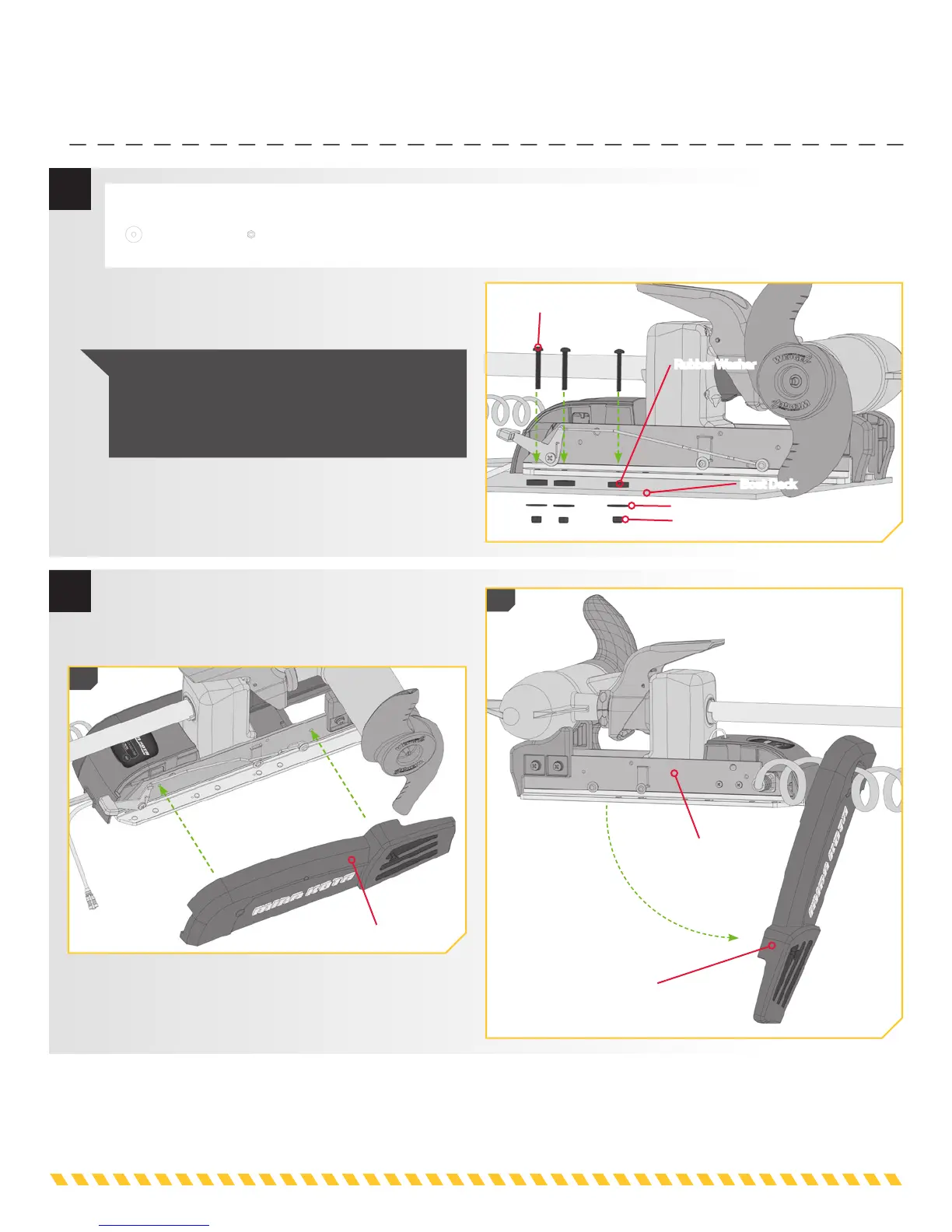

m. Replace the Right Sideplate.
n. Swing the Left Sideplate back into its correct
position on the Base Extrusion.
9
9m
9n
Right Sideplate
Left Sideplate
Base Extrusion
l. Place a Flat Washer (Item #2) and then a Nylock
Nut (Item #3) at the end of each screw as shown
and secure. Make sure all hardware is secure.
8
ITEM(S) NEEDED
#2 x 6 #3 x 6
1/4-20 x 3 1/2" Screw
Rubber Washer
Boat Deck
Nylock Nut
Flat Washer
NOTE: To prevent seizing of the stainless steel
hardware, do not use high speed installation tools.
Wetting the screws or applying an anti-seize may
help prevent seizing.

MINN KOTA PowerDrive 70 series Specifications

General

Thrust	70 lbs
Voltage	24V
Speed Control	Variable
Digital Maximizer	Yes
i-Pilot Compatibility	Yes
AutoPilot	Yes
Speed Settings	Variable
Motor Type	Electric
Shaft Length	54 inches
Mount	Bow
Foot Pedal	Optional
Battery Requirement	Two 12V batteries
Control	Foot Pedal (included or optional, depending on model)
Weight	46 lbs (45"), 48 lbs (52")
