INSTALLING THE POWERDRIVE

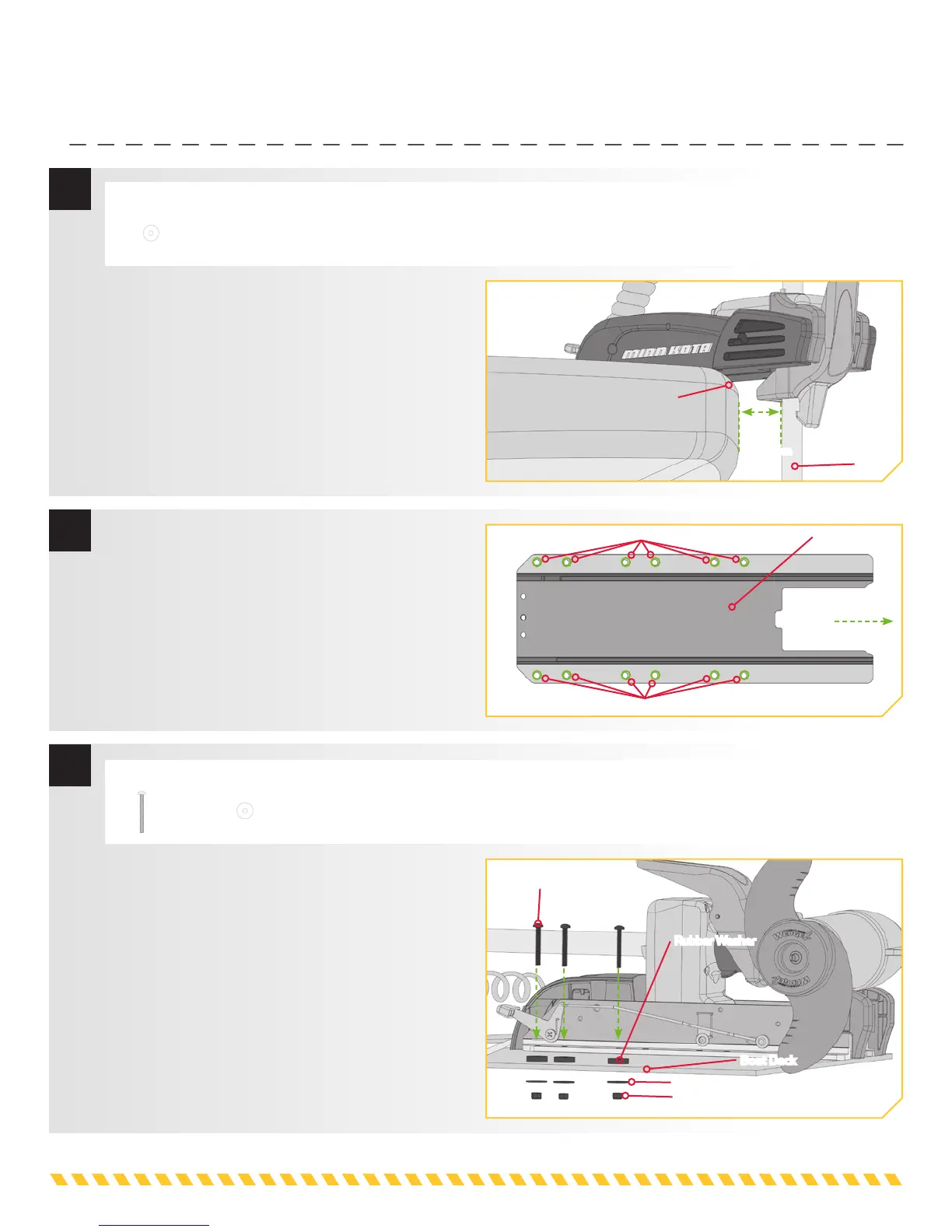

k. Put a 1/4-20 x 3-1/2" (Item #1) screw in each
of the drilled locations. The screw should pass
through the Base Extrusion and the boat deck.
If the Rubber Washers (Item #4) are used, they
should sit between the Base Extrusion and boat
deck. Make sure to secure the motor with screws
on each side of the Base Extrusion.
7
ITEM(S) NEEDED
#1 x 6
#4 x 6
g. When the motor is in the deployed position, make
sure that the Shaft is 1-1/2" out past the Gunwale
of the boat. The lower unit, when stowed and
deployed must not encounter any obstructions.
h. Check to be sure that the mount is level. Use the
Rubber Washers (Item#4) provided to create a
level surface if necessary.
i. It is recommended to mark at least 6 of the
12 holes in the Base Extrusion and to have a
minimum of two bolts on each side that are
located the farthest apart. Ideal installation would
allow for 6 bolts to be used, with a minimum of 4.
j. Drill through the deck of the boat using a 9/32"
Drill Bit on the marked locations.
5
6
ITEM(S) NEEDED
#4 x 6
Drilling Locations
Drilling Locations
1-1/2"
Minimum
Gunwale
Shaft
Base Extrusion
1/4-20 x 3 1/2" Screw
Rubber Washer
Boat Deck
Nylock Nut
Flat Washer
Bow
To Next Page
