MINN KOTA PowerDrive 70 series User Manual

INSTALLING THE POWERDRIVE

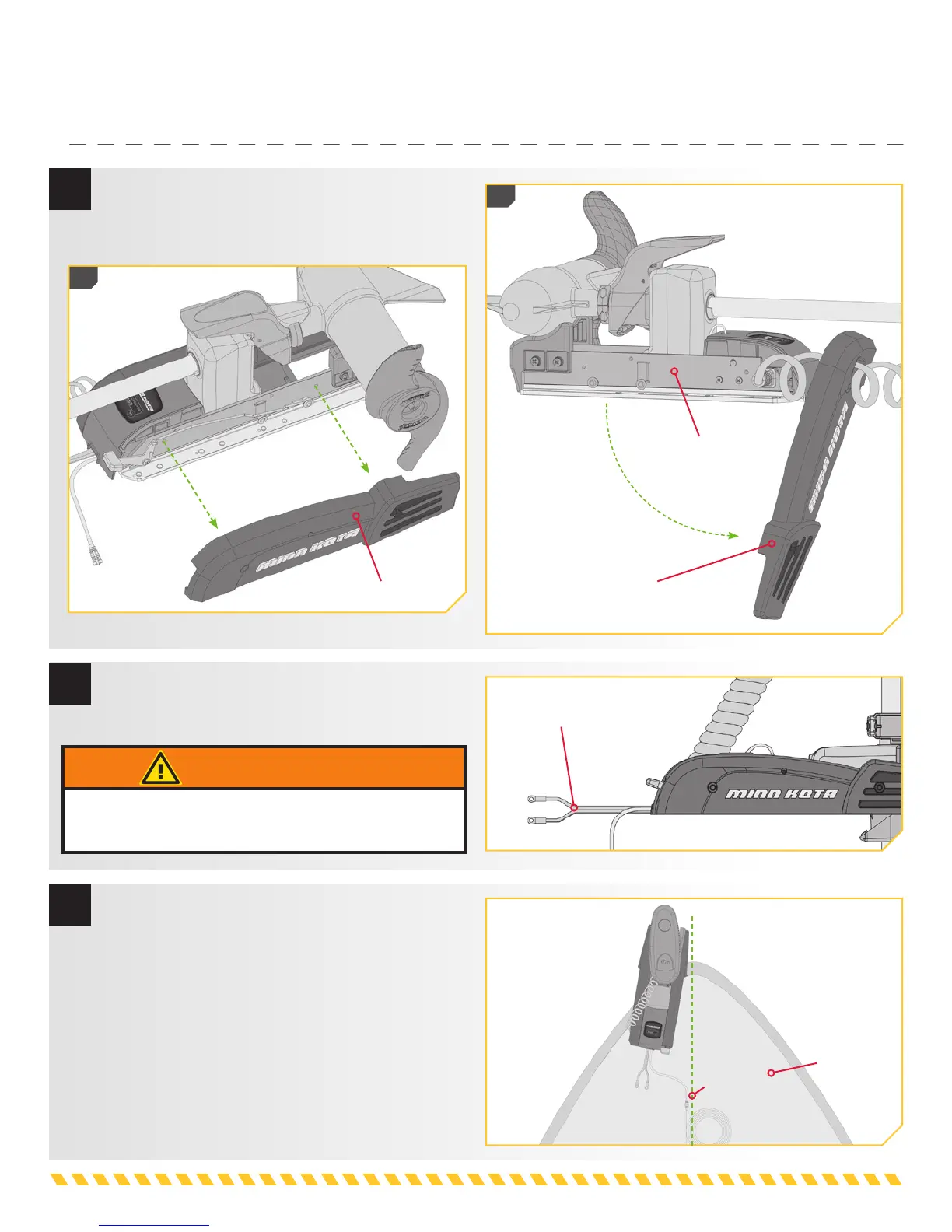

c. Remove the Right Sideplate.
d. Swing the Left Sideplate out and away from the
Base Extrusion.
2
e. Make sure that the Power Cables from the
battery are disconnected, or that the breaker,
if equipped, is "off".
f. Place the mount as close to the centerline or
keel of the boat as possible. The motor can
be installed on either the Port or Starboard
side of the boat based on personal preference.
Check
placement with the motor in the stowed
and deployed positions.
Review the mounting
considerations at the beginning of the installation.
3
4
2c
2d
Deck of Boat
Keel
Right Sideplate
Power Cables
Left Sideplate
Base Extrusion
WARNING
Make sure the motor is mounted on a level surface and is
not connected to a power source.

MINN KOTA PowerDrive 70 series Specifications

General

Thrust	70 lbs
Voltage	24V
Speed Control	Variable
Digital Maximizer	Yes
i-Pilot Compatibility	Yes
AutoPilot	Yes
Speed Settings	Variable
Motor Type	Electric
Shaft Length	54 inches
Mount	Bow
Foot Pedal	Optional
Battery Requirement	Two 12V batteries
Control	Foot Pedal (included or optional, depending on model)
Weight	46 lbs (45"), 48 lbs (52")
