INSTALLING THE POWERDRIVE
• #3 and #2 Phillips Screw Driver
• Drill
• 9/32” Drill Bit
• 7/16” Box End Wrench
• A second person to help with the
installation
MOUNTING CONSIDERATIONS
TOOLS AND RESOURCES REQUIRED
INSTALLATION
It
is recommended that the motor be mounted as close to the centerline of the boat
as possible. Make sure the area under the mounting location is clear to drill holes and
install nuts and washers. Make sure the motor rest is positioned far enough beyond the
edge of the boat. The motor must not encounter any obstructions as it is lowered into
the water or raised into the boat when stowed and deployed. Consider a quick release
or adapter bracket with the installation of your motor.

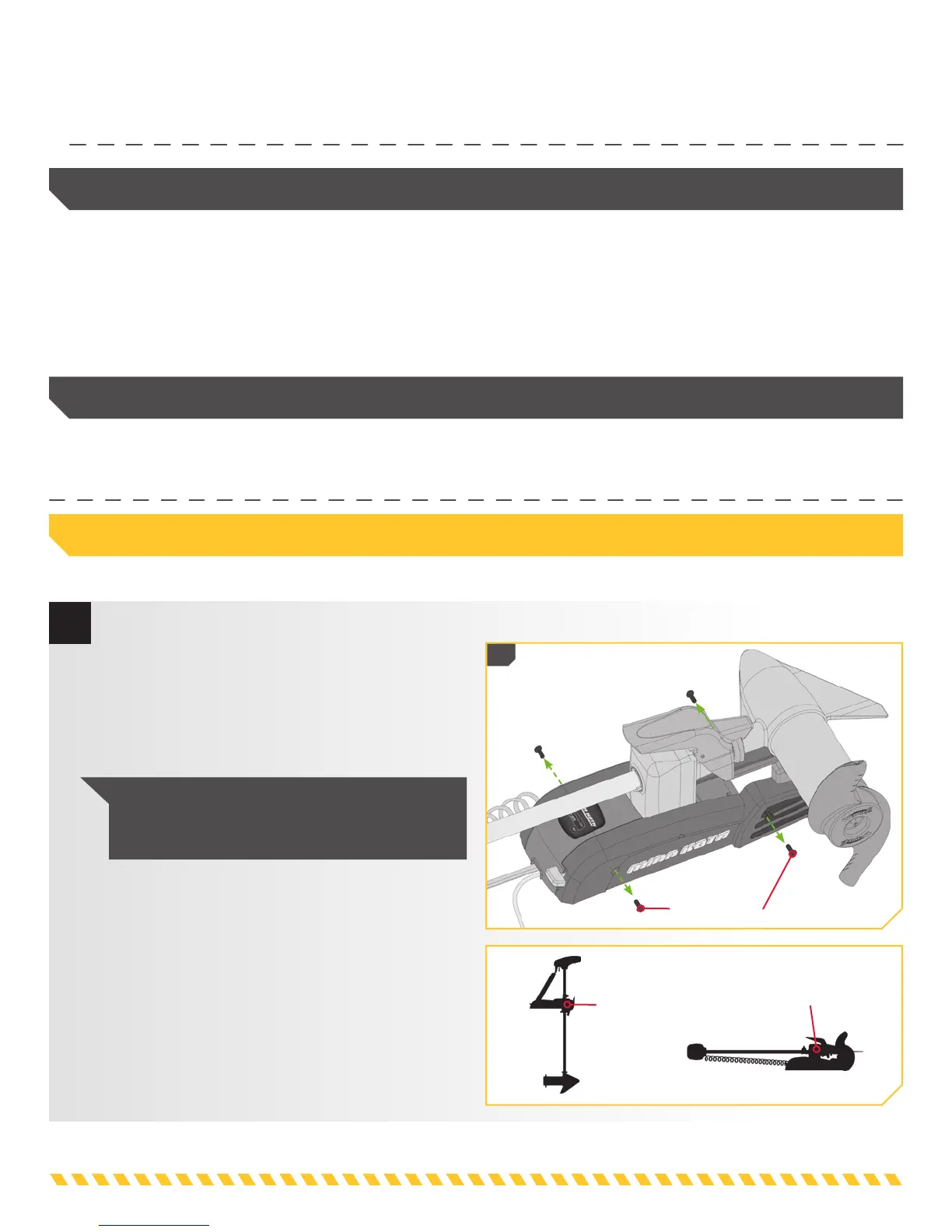

Installing the PowerDrive
a. Place the mount on an elevated, level surface
such as a workbench or the tailgate of a pickup.
The motor, as removed from the box, should be in
the stowed position.
b. Remove the four sideplate screws using a #3 or
#2 Phillips screwdriver. Two of these screws will
be located on each side of the mount.
1
NOTE: This motor weighs approximately
30 lbs. We recommend having a second person
help with the installation.
Deployed
Stowed
Sideplate Screw
1b
