minnkotamotors.com | 21
©2015 Johnson Outdoors Marine Electronics, Inc.

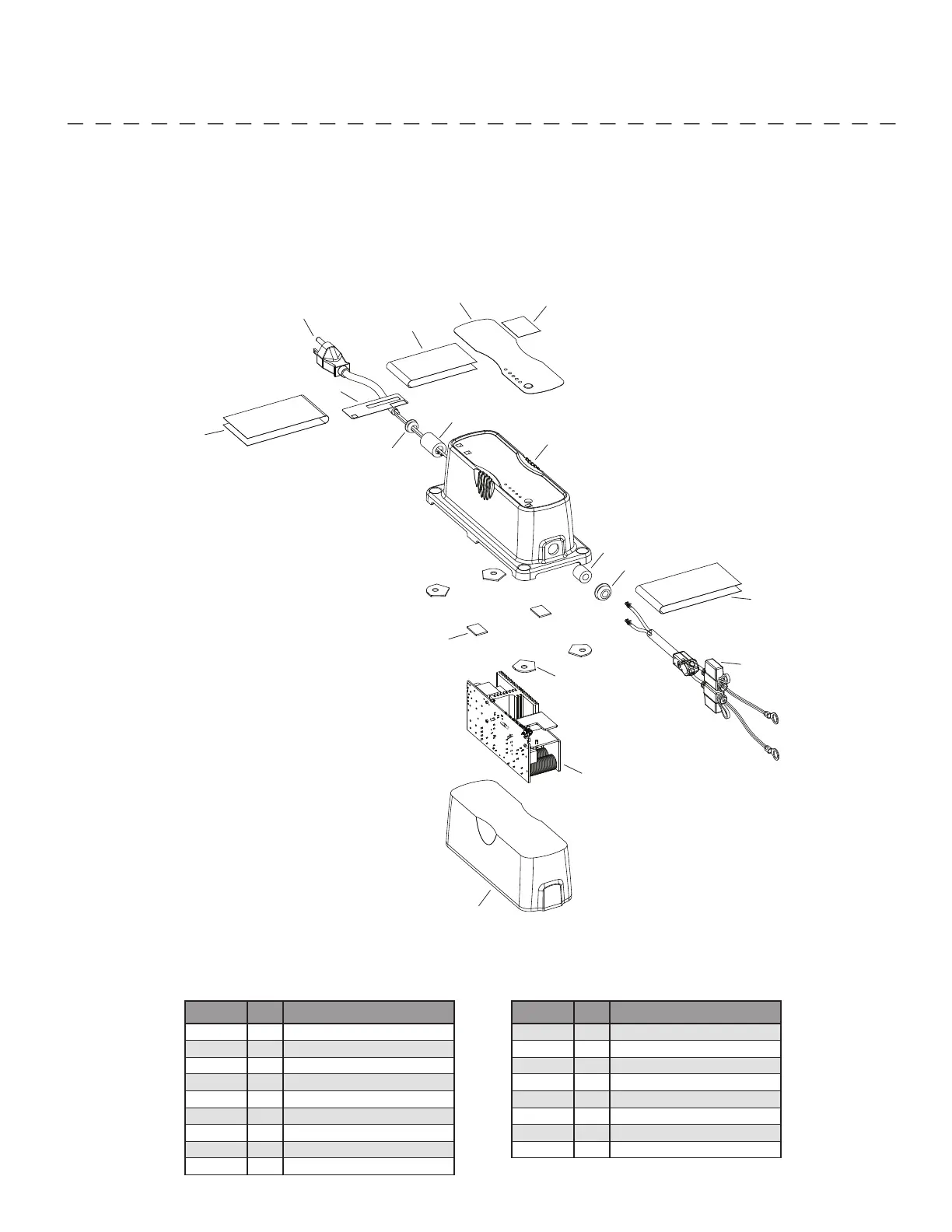

PARTS DIAGRAM & LIST
ITEM QTY DESCRIPTION
1 1 SERIAL NUMBER DECAL-CORD
2 4 RUBBER MOUNTING PAD - ROUND
3 2 RUBBER MOUNTIN PAD - SQUARE
4 1 GROMMET
5 1 GROMMET
6 1 OUTPUT CORD TWO COND. 16AWG
7 1 INPUT CORD 18AWG
8 1 BOARD ASSEMBLY
9 1 BOARD POTTING
MK106PC / MK110PC
This page provides Minn Kota® WEEE compliance instructions. Charger can not be
disassembled, but the cords can be cut and removed. For more information about where
you should dispose of your waste equipment for recycling and recovery and/or your
European Union member state requirements, please contact your dealer or distributor
from which your product was purchased.
Tools required, but not limited to: wire cutters.
ITEM QTY DESCRIPTION
10 1 INPUT WARNING LABEL
11 1 BATTERY SELECTION OVERLAY
12 1 DECAL
13 1 ERROR CODE DECAL
14 1 WARNING DECAL
15 1 ONE BANK PC CHARGER COVER
16 1 FERRITE BEAD
17 1 FERRITE BEAD
9
8
2
3
6
13
10
7
14
1
12
11
15
17
4
5
16
