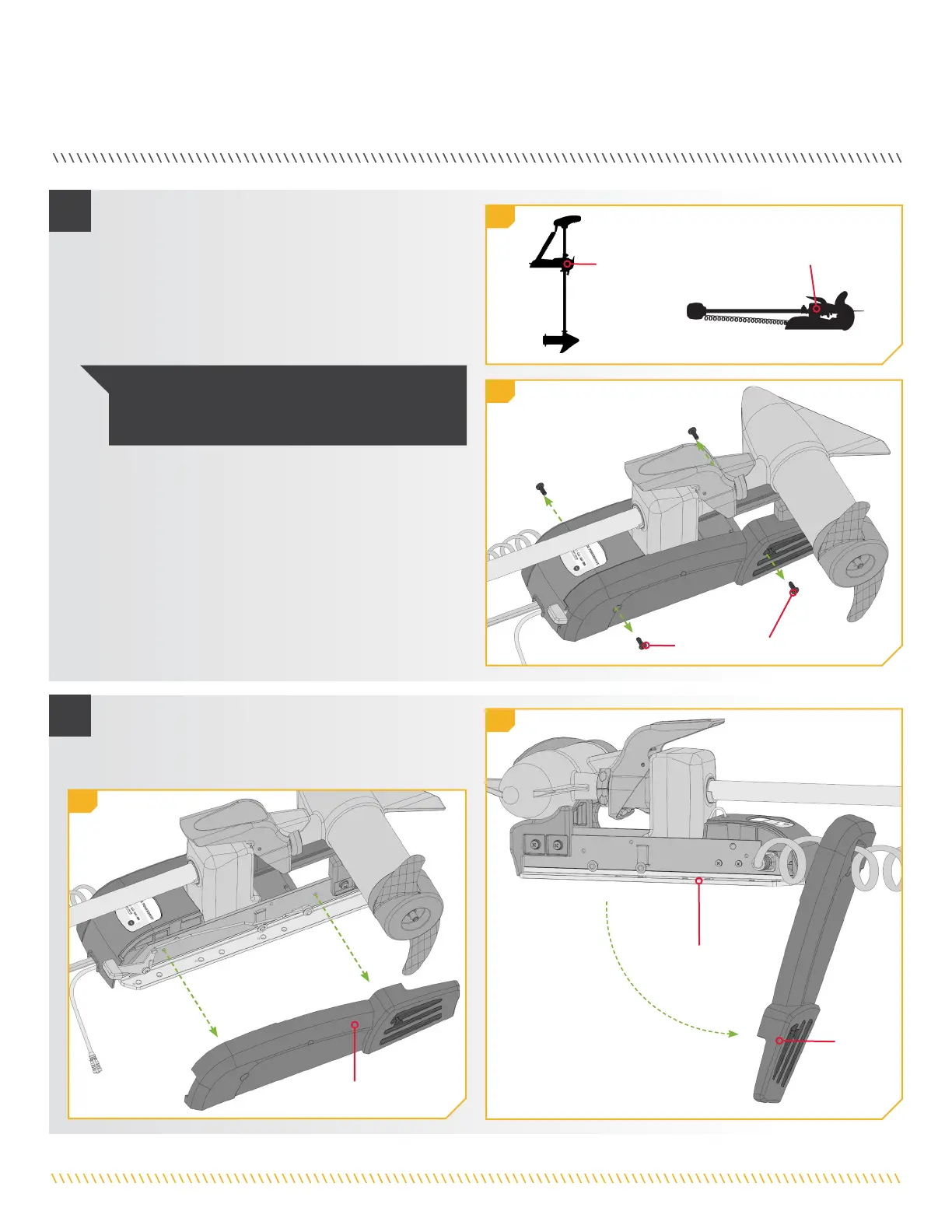

INSTALLING THE RIPTIDE POWERDRIVE
d. Remove the Right Sideplate.
e. Swing the Left Sideplate out and away from the
Base Extrusion.
Right SideplateRight Sideplate
Left Left
SideplateSideplate
Base ExtrusionBase Extrusion
3
3d
3e
b. Place the mount on an elevated, level surface such
as a workbench or the tailgate of a pickup. The
motor, as removed from the box, should be in the
stowed position.
c. Remove the four sideplate screws using a #3 or #2
Phillips screwdriver. Two of these screws will be
located on each side of the mount.
DeployedDeployed
StowedStowed
Sideplate ScrewSideplate Screw
NOTICE: This motor weighs approximately 30 lbs.
We recommend having a second person help with
the installation.
2
2c
2b
