HOW TO SETUP YOUR RDA80 TRAINER
Bike Direction
Insert the left side of the skewer (Q/R lever side) into the left side
coupling, and adjust the rotation of the coupling so the skewer lever
sits securely in the large cut-out (see Fig. E).
This will prevent damage to the skewer during use.

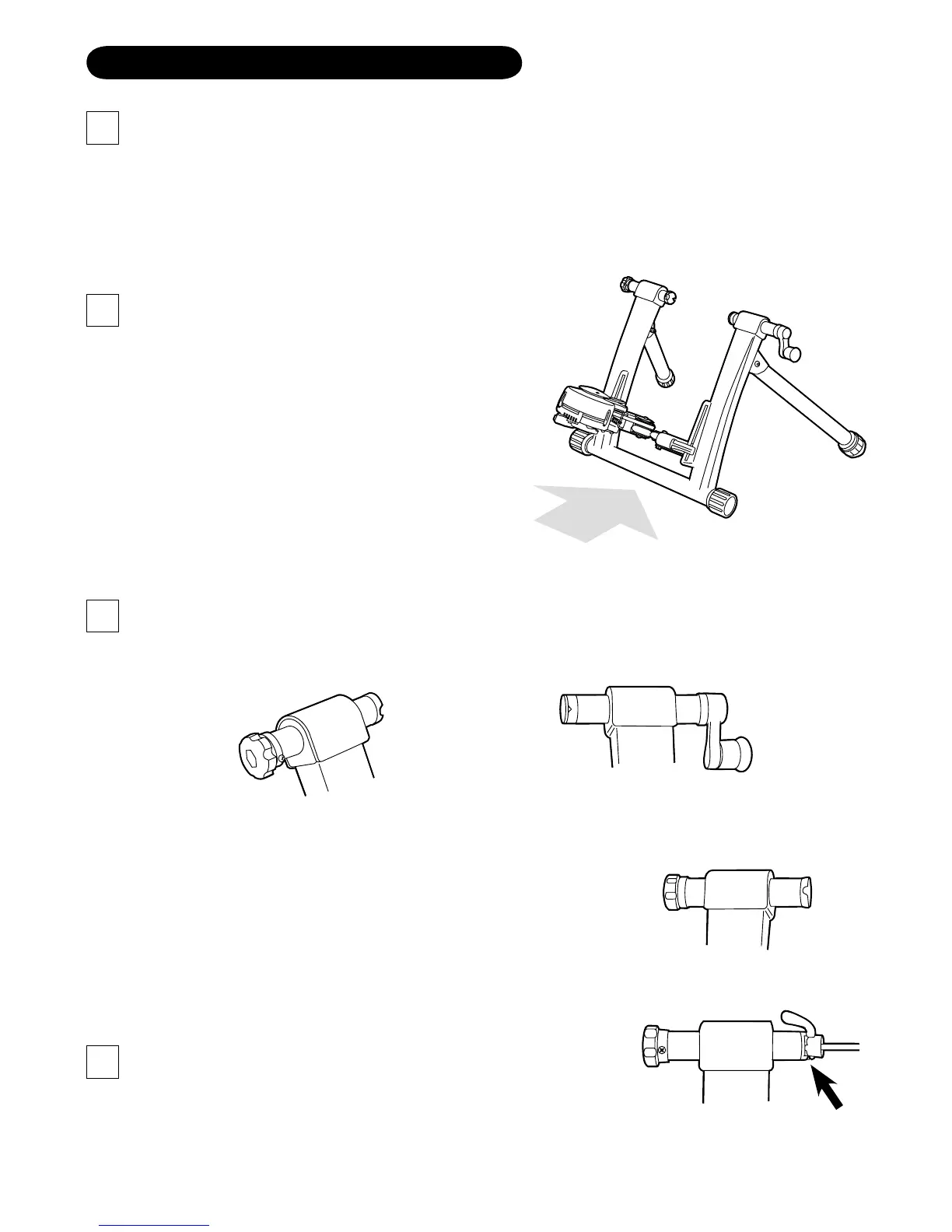

(Fig. A)
Fully open the legs and place RDA80 on a at and horizontal oor.
Conrm all 4 leg points are touching the oor at same time to ensure the maximum stability.
NOTE: If the both legs don’t touch the oor at same time and if one side leg has been
slightly lifted up, pull up another leg upward strongly then place the trainer on the
oor again.
Open both couplings by turning the Left Side Knob (see Fig. B) and the Right Side Hub Handle (see
Fig. C) anti-clockwise.
1
2
3
(Fig. B)
(Fig. C)
Left Side Knob
Right Side Hub Handle
Install the Mag Resistance Unit on the left side slot
and the Assistant Roller on the right side slot beside
the trainer pillar by the supplied M6x12 bolts.
(see Fig. A)
NOTE: We recommend you to use the
reinforcement plate (SR-13) for installing
the Mag unit. This plate will sandwich
the slot plate from outside for mounting
the heavy Mag unit and giving it extra
stability.
Required Tools: M5 hex wrench
(Fig. D)
4
NOTE: Do not over-loosen the couplings, otherwise the knob
or the hub handle may become unthreaded inside the
frame.
NOTE: We suggest not using the left side coupling for major ad-
justment. Moving it too much to one side will cause mis-
alignment. The left side coupling is used only to provide
easy intitial adjustment for your hub length. (see Fig. D)
(Fig. E)
