SPECIFICATIONS
Pressures
Max Static Pressure: • 10 Bar.
Max Maintained Pressure: • 5 Bar.
Min Maintained Pressure: (Gas Water Heater): •
1.0 Bar (for optimum performance supplies
should be nominally equal).
Min Maintained Pressure (Gravity System): •
0.1 Bar (0.1 bar = 1 Metre head from cold tank
base to showerhead outlet).
Temperatures
Close temperature control is provided between •
20°C and 50°C.
Optimum Thermostatic Control Range: • 35°C
to 45°C (achieved with supplies of 15°C cold,
65°C hot and nominally equal pressures).
Recommended Hot Supply: • 60°C to 65°C
(Note! The mixing valve can operate at
temperatures up to 85°C for short periods
without damage. However for safety reasons
it is recommended that the maximum hot water
temperature is limited to 65°C).
Minimum Differential between Hot Supply and •
Outlet Temperature: 10°C.
Cold Water Range: • 5°C - 25°C.
Thermostatic Shut-down
For safety the thermostat will shut off the •
hot supply within 2 Seconds if the cold
supply fails (achieved only if the hot supply
temperature is greater than 10°C above the
set blend temperature).
Connections
Hot: Left • (side nearest ow control), ½” BSP
Male.
Cold: Right • (side nearest temperature
control), ½” BSP Male.
Outlet:• bottom, ½” BSP Male to flexible
hose.
Note! This product does not allow for reversed
inlets and will deliver unstable temperatures if
tted incorrectly.

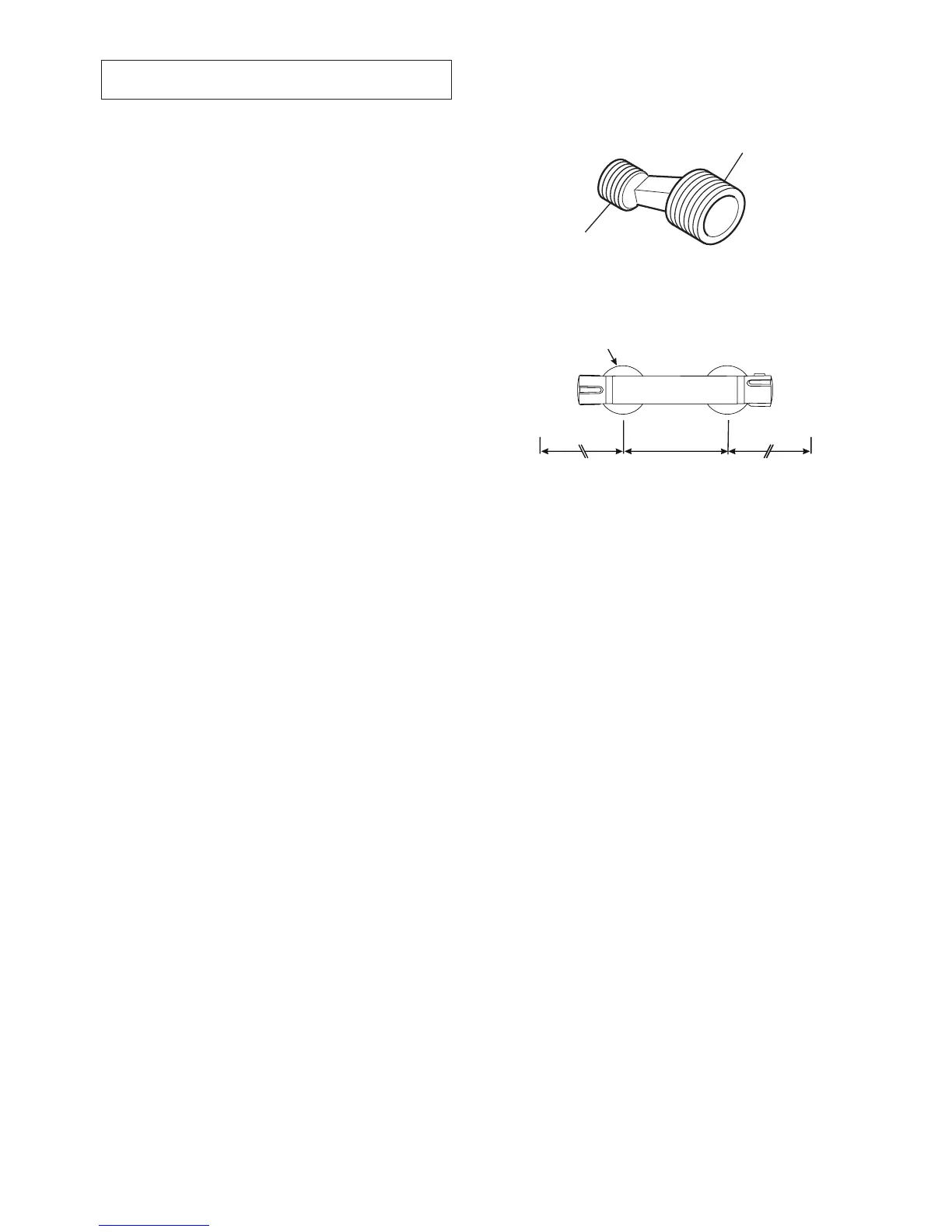

Offset connector (inlet centres are 150 mm
± 24 mm).
½" BSP
Connection to Pipework
¾" BSP
Connection to Bar Valve
Dimensions
150 ± 24 100 Min to Wall100 Min to Wall
Ø70
Dimensions in mm
