1 Densité 2 Housing Frame
1.1 Introduction

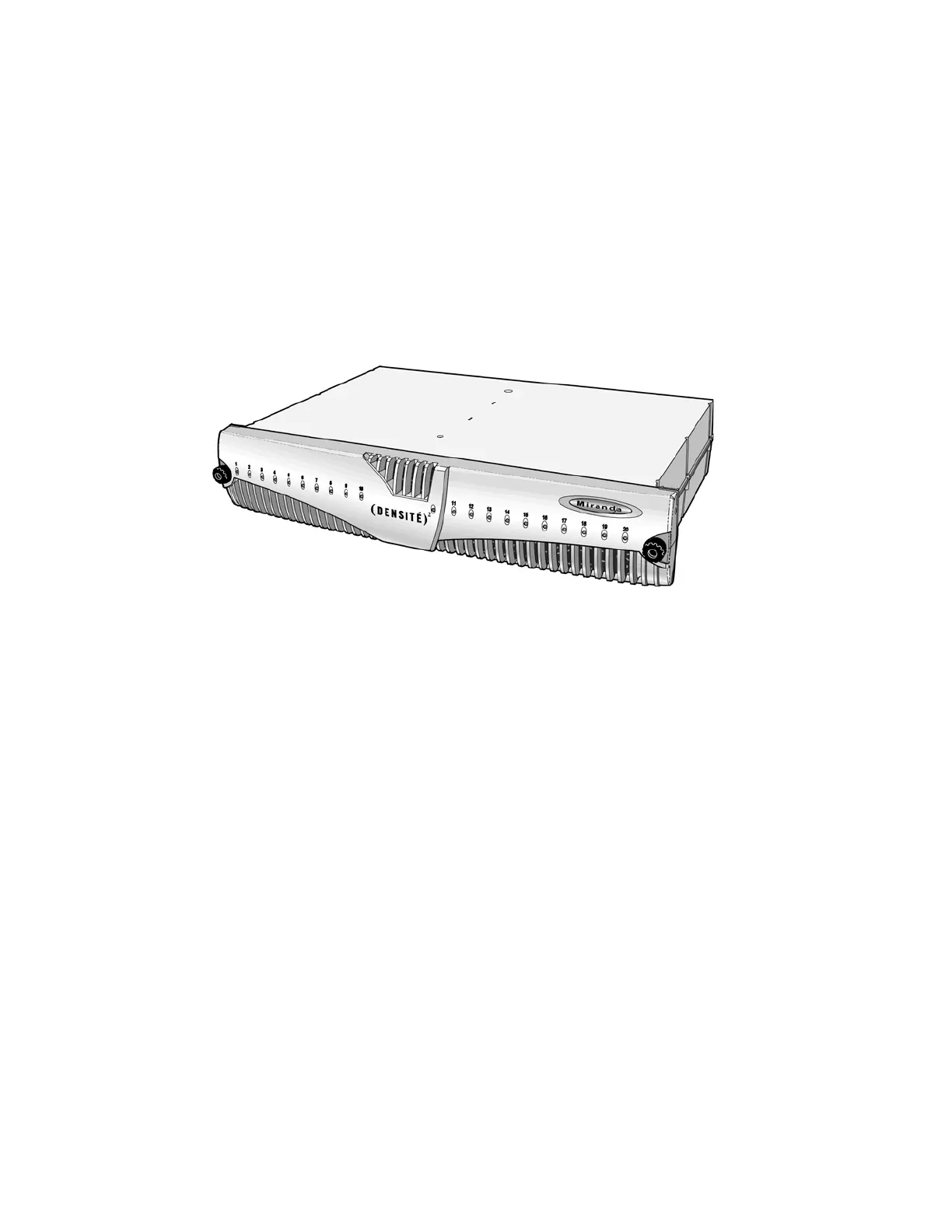

The Densité 2 Frame is a 2-RU housing frame, designed for high density and low cost. The basic configuration
includes one power supply unit, and a basic controller card with front panel controls for card adjustments. Up to
20 cards can be installed within a single frame. The Densité 2 frame offers full flexibility and integration of a
variety of functions and signal types; also, all components are hot-swappable and can be quickly configured.
The frame is air-cooled, the PSUs and fans are monitored and status reporting is available. Each card has a
multicolored LED (visible with the door closed) for status reporting as well. Remote control via Ethernet is
available with an optional controller.
1.2 Features
• 32 RU with 19” rack mount
• Up to 20 cards
• 1 hot-swappable PSU with optional 2
nd
redundant PSU
• Basic controller with front panel for card configuration
• Optional controller with ethernet port
