6
Kaleido-X (4RU) Installation
Power Supplies
There are two factors that could influence airflow inside the frame:
•altitude
airflow obstruction at the rear of the unit
To monitor airflow efficiency, the Kaleido-X offers on-board probing that monitors the
temperature in strategic areas. Use the table, below, to determine whether measured
values exceed recommended values.
If measured values exceed recommended values, make the necessary corrections to your
installation (please contact Miranda Technical Support for the recommended practice).
Power Supplies
The Kaleido is powered by dual redundant power supplies. These are installed in the lower
right-hand corner of the frame. The supplies are installed and removed from the front of the
frame and are hot-swappable, so that a defective supply may be replaced without
removing the Kaleido from service.
Access the power supplies by opening the front door of the frame. PSU A is located on the
top, and PSU B is located on the bottom.

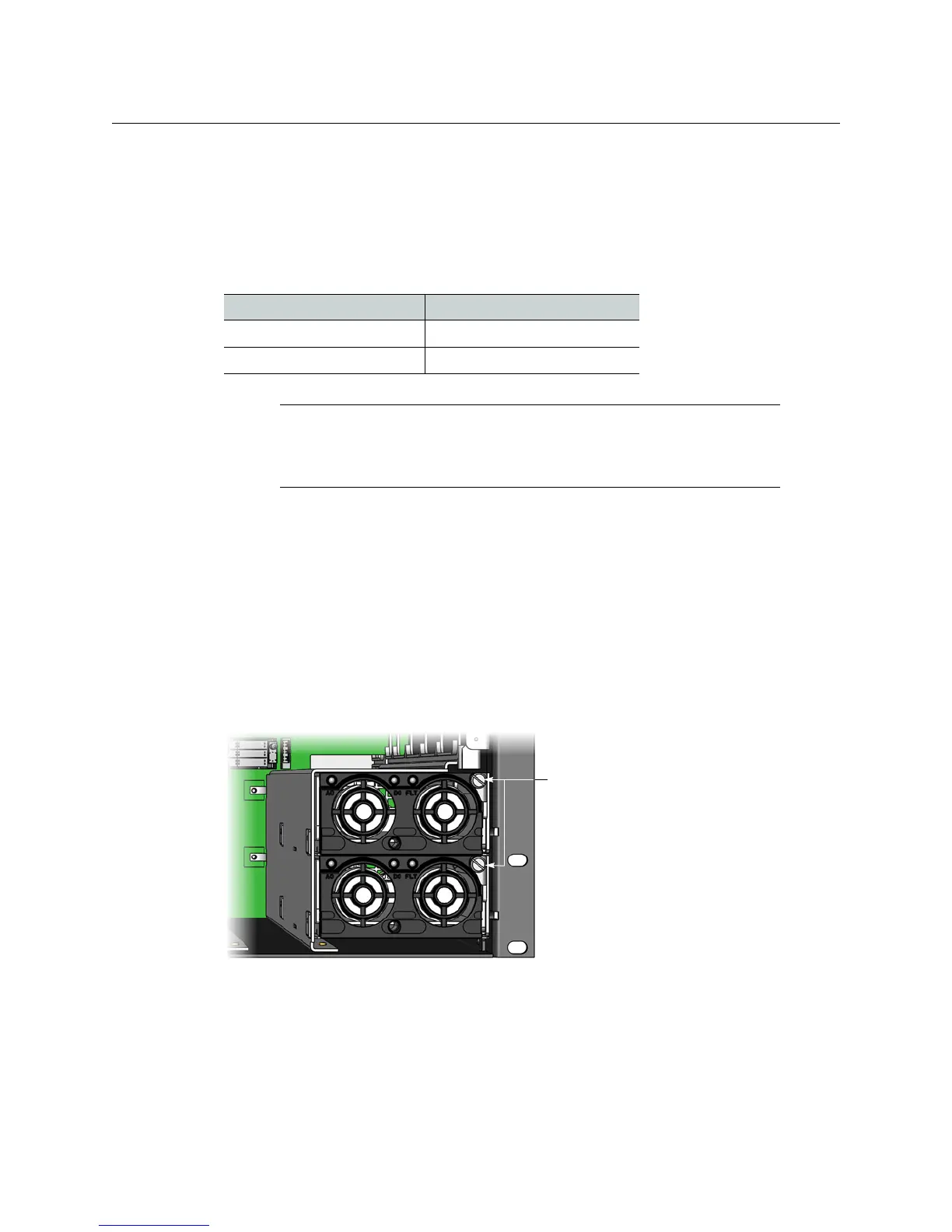

Removing a Power Supply
To remove a power supply
1 Open the front door of the frame and locate the two power supplies at the lower right
side.
2 Undo the threaded fastener at the upper right side of the supply to be removed.
Monitored values via XAdmin Temperature should not exceed
Input cards 75 ºC (167 ºF)
Output cards 83 ºC (181 ºF)
Keep in mind that these values are measured at the chip level and should be
interpreted as relative indicators of the cards internal temperature and of the
systems overall ability to evacuate excess heat, in the context of your
specific system configuration.
Fasteners
