1. Introduction
Front Module Slots and Rear Connections
Figure 1-22 is an example of some of the different types of backplanes. In the NV8576 and
NV8576-Plus frames, backplanes installed in the lower portion of the router are rotated 180° from
those in the upper portion and “face” in the opposite direction. Expansion backplanes featuring ter-
minal block connectors and two expansion connectors are currently under development.

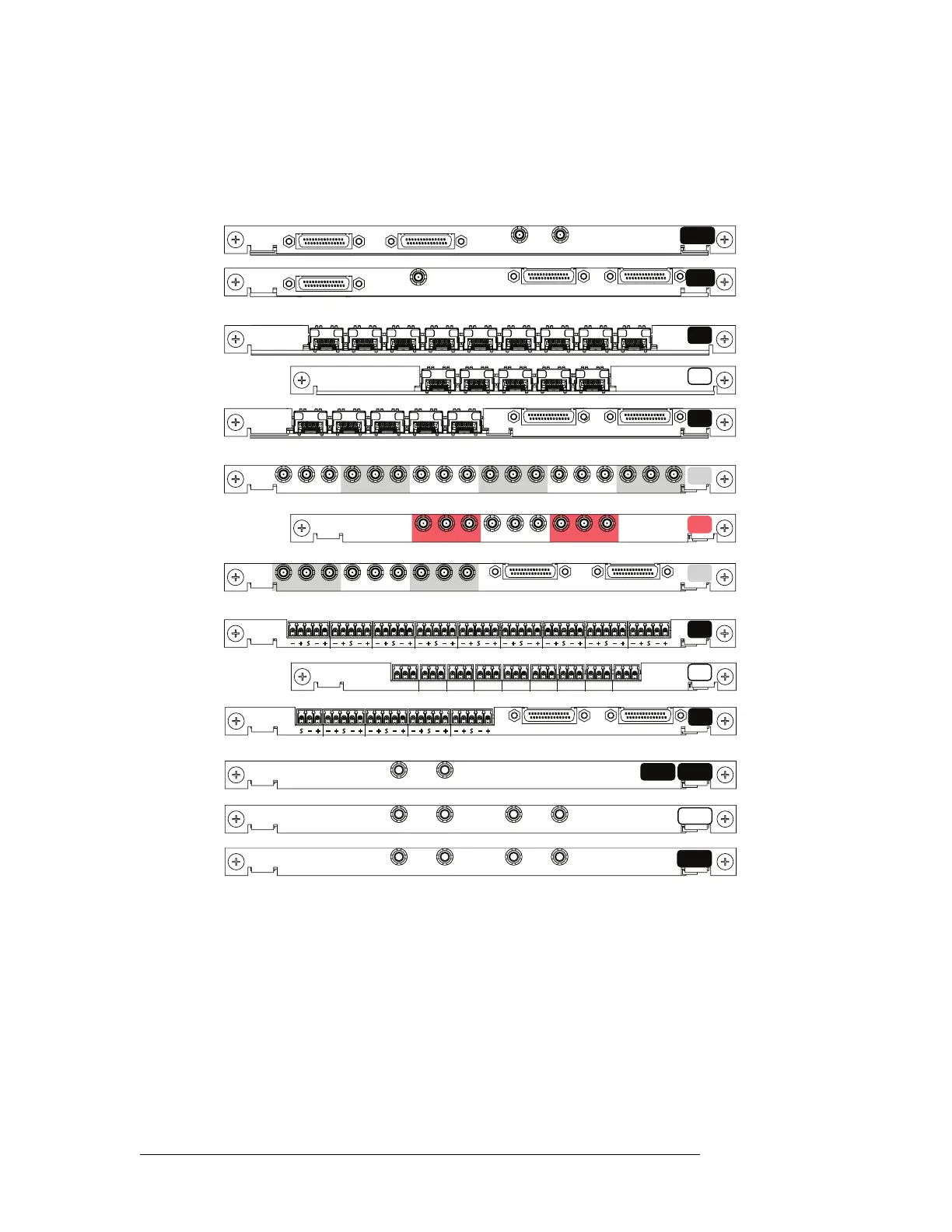

Figure 1-22. Backplanes
Viewing from top to bottom backplanes are grouped by connector type with one backplane for
inputs, the next for outputs and the third for expansion signals. The first set of backplanes feature
LC connectors for fiber optic signals (SD, HD, 3Gig), followed by DIN 1.0/2.3 connectors for coax
signals (SD, HD, 3Gig and AES unbalanced), and lastly terminal block connectors for coax signals
(SD, HD, 3Gig and AES balanced). The last three backplanes are for monitoring signals. There is a
single backplane for the NV8144 and two backplanes for monitoring inputs and outputs in the
NV8280, NV8280-Plus, NV8576 and NV8576-Plus frames.
Notice that the LC connectors are actually modules containing two connectors each. The input
backplane and the expansion backplane contain 5 modules totalling 10 LC connectors each. The
output backplane contains 9 modules for a total of 18 LC connectors. When making input and
